Thyristors - TRIACs Thyristor TRIAC 700V 168A 3-Pin(3 Tab) TO-220AB Insulated Tube
Hope you are doing well today! The BTA16 Triac series is ideal for general use AC switching and is available in through-hole and surface-mount packaging. This article mainly introduces features, pinout, datasheet and other detailed information about STMicroelectronics BTA16.
BTA16-700BRG
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.16841 | $2.17 |
| 10+ | $2.04567 | $20.46 |
| 100+ | $1.92988 | $192.99 |
| 500+ | $1.82064 | $910.32 |
| 1000+ | $1.71759 | $1717.59 |
The BTA16 Triac series is ideal for general use AC switching and is available in through-hole and surface-mount packaging. They can be employed as an ON/OFF function in applications like static relays, heating regulation, induction motor starting circuits, and so on, or for phase control in light dimmers and motor speed controllers.
Because of their great commutation performance, the snubbers versions are especially suited for use on inductive loads. The BTA series provides a voltage insulated tab (rated at 2500V RMS) that meets UL standards by using an internal ceramic pad.
The following figure is the Pinout of BTA16.
Pinout

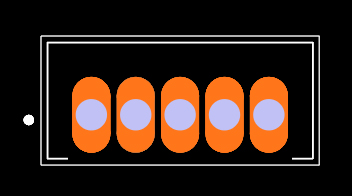

The following figures are the Footprint and 3D Model of BTA16.
Footprint
3D Model
• Medium Current Triac
• Low Thermal Resistance with Clip Bonding
• Low Thermal Resistance Insulation Ceramic for Insulated BTA
• High Commutation (4Q) or Very High Commutation (3Q, Snubberless™) Capability
• BTA Series UL1557 Certified (file ref: 81734)
• Packages are RoHS (2002/95/EC) Compliant
• Insulated Tab (BTA series, rated at 2500 VRMS)
STMicroelectronics BTA16-700BRG technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BTA16-700BRG.
STMicroelectronics BTA16-700BRG technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics BTA16-700BRG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 11 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Additional Feature | UL RECOGNIZED | |
| Voltage - Rated DC | 700V | |
| Current Rating | 16A | |
| Base Part Number | BTA16 | |
| Pin Count | 3 | |
| Configuration | Single | |
| Case Connection | ISOLATED | |
| Max Repetitive Reverse Voltage (Vrrm) | 700V | |
| JEDEC-95 Code | TO-220AB | |
| RMS Current (Irms) | 16A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Hold Current | 50mA | |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 160A 168A | |
| Current - Gate Trigger (Igt) (Max) | 50mA | |
| Leakage Current (Max) | 2mA | |
| Critical Rate of Rise of Off-State Voltage-Min | 400V/us | |
| Triac Type | Standard | |
| Critical Rate of Rise of Commutation Voltage-Min | 10V/us | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The working concept of the TRIAC dimmer circuit diagram is as follows: power, 220V bulb VR4 R19 through C23 charge. The two-terminal voltage capacitor is not modified as a result of this.
Triac Dimming Circuit Diagram
The smaller charge determines the charging time VR4 and the R19 size. When the voltage is about 33V, the bigger the charge on the C23 when it is turned on. The DB1 programmable silicon is also a conducting thyristor. After a current is passed through the bulb, the DB1 conducting voltage on C23 is totally released. The DB1 and thyristor bulbs will both be turned off. They were the same as at the start of the C23 cycle. Because the phenomenon of the human eye has a short persistence duration, it looks to have been light bulb brilliant, with a shorter charge and discharge time. The higher the wattage, the brighter the bulb, and vice versa. SCR is protected by R20 C24. If you're using a resistive load, you can skip this step.
| Part Number | Description | Manufacturer |
| BTB16-700CTRIGGER DEVICES | 700V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC PACKAGE-3 | STMicroelectronics |
| BTA16-700BTRIGGER DEVICES | 700V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC, ISOLATED TO-220AB, 3 PIN | STMicroelectronics |
| BTB16-700CRGTRIGGER DEVICES | 700V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, TO-220AB, 3 PIN | STMicroelectronics |
| Q7015R6TRIGGER DEVICES | Alternistor TRIAC, 700V V(DRM), 15A I(T)RMS, TO-220AB, | Littelfuse Inc |
| BTB16-700CWTRIGGER DEVICES | 700V, 16A, SNUBBERLESS TRIAC, TO-220AB, PLASTIC PACKAGE-3 | STMicroelectronics |
| BTB16-700SWRGTRIGGER DEVICES | 700V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, TO-220AB, 3 PIN | STMicroelectronics |
| BTB16-700SWTRIGGER DEVICES | 700V, 16A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB, PLASTIC PACKAGE-3 | STMicroelectronics |
| BTB16-700BW/F5TRIGGER DEVICES | 700V, 16A, SNUBBERLESS TRIAC, TO-220AB, TO-220, 3 PIN | STMicroelectronics |
| Q7015L6TRIGGER DEVICES | Alternistor TRIAC, 700V V(DRM), 15A I(T)RMS, TO-220AB, ISOLATED TO-220AB, THERMOTAB-3 | Littelfuse Inc |
• Because of their high commutation performances, snubberless versions (BTA/BTB...W and T1635) are especially suggested for use on inductive loads.
• Static relays, light dimmers, and appliance motor speed controllers all have on/off or phase angle functions.
• AC switching
• Through-hole
• Surface-mount packaging
• ON/OFF function in applications like static relays
• Heating regulation, induction motor starting circuits
• Phase control in light dimmers, motor speed controllers
• Motor Drive & Control
• Industrial
• Lighting
The Package of BTA16 is shown as follows.
Package
STMicroelectronics, headquartered in Plan-les-Ouates, Switzerland, near Geneva, is a multinational electronics and semiconductors firm. The company was created in 1987 by the merger of two government-owned semiconductor companies: "Thomson Semiconductors" in France and "SGS Microelettronica" in Italy. It is known as "ST" and is the most profitable semiconductor chip producer in Europe. While the corporate headquarters and EMEA regional offices of STMicroelectronics are in Geneva, the holding company, STMicroelectronics N.V., is based in the Netherlands.
The company's US headquarters are located in Coppell, Texas. The headquarters for the Asia-Pacific region is in Singapore, while Japan and Korea's activities are in Tokyo. The company's China regional headquarters are based in Shanghai.
Download datasheets and manufacturer documentation for STMicroelectronics BTA16-700BRG.
Download datasheets and manufacturer documentation for BTA16-700BRG
