BU407 Transistor: Datasheet, Pinout, Equivalent

BU407 Pinout

BU407 Symbol

BU407 Footprint

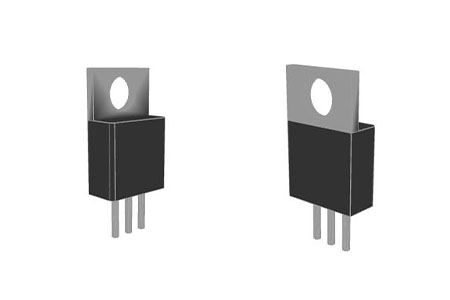

BU407 3D Model

The BU407 is an NPN transistor with a TO-220 package. It's primarily intended for horizontal deflection usage in CRTs and TVs. The transistor has excellent specifications and features, making it appropriate for a wide range of various applications. It is excellent for use in high voltage applications due to its high collector to emitter voltage of 150V.

It also boasts high-speed switching capabilities and a maximum output current of 7A, allowing it to drive a wide range of loads in electronic circuits. It has a low saturation voltage need, which makes it perfect for use in low voltage circuits.

As previously stated, the BU407 is primarily intended for use in horizontal deflection circuits, but it can also be employed in a wide range of general-purpose and high-speed switching applications. Additionally, it can be used for audio amplification in both high and low power audio amplifiers.

• Package Type: TO-220

• Transistor Type: NPN

• Max Collector Current(IC): 7A

• Max Collector-Emitter Voltage (VCE): 200V

• Max Collector-Base Voltage (VCB): 400V

• Max Emitter-Base Voltage (VBE): 5V

• Max Collector Dissipation (Pc): 60 Watts

• Max Transition Frequency (fT): 10 MHz

• Max Storage & Operating temperature Should be: -65 to +150℃

• TV’s and CRT’s horizontal deflection circuits

• High-speed switching

• High voltage applications

• Audio Amplifiers

• Humidifiers

The Equivalent BU407:

• 2SD1069

• BU109DP

• BU109P

• BU124A

• BU409

• 2SD823

• 2SD1163

• 2SD1163A

• BU104P

BU407 Package
