Diode Switching 1.3KV 3A 2-Pin DO-201AD Ammo
BY255 is a glass passivized junction plastic rectifier. This article mainly covers pinout, datasheet, equivalent, and other details about BY255. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
BY255GP-E3/73
Symbol
Footprint

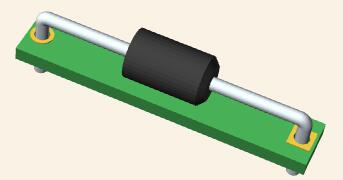

3D Model
The BY255 is a glass passivized junction plastic rectifier that is designed for general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer applications.
Vishay Semiconductor Diodes Division BY255GP-E3/73 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Diodes Division BY255GP-E3/73.
Vishay Semiconductor Diodes Division BY255GP-E3/73 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Diodes Division BY255GP-E3/73.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | DO-201AD, Axial | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Contact Plating | Tin | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Published | 2012 | |
| Series | SUPERECTIFIER® | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -65°C | |
| Applications | GENERAL PURPOSE | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT | |
| HTS Code | 8541.10.00.80 | |
| Terminal Form | WIRE | |
| Base Part Number | BY255 | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 1300V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 3A | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -65°C~175°C | |
| Max Surge Current | 100A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current-Max | 3A | |
| Voltage - DC Reverse (Vr) (Max) | 1300V | |
| Forward Voltage | 1.1V | |
| Max Reverse Voltage (DC) | 1.3kV | |
| Average Rectified Current | 3A | |
| Number of Phases | 1Phase | |
| Reverse Recovery Time | 3 μs | |
| Peak Reverse Current | 5μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 1.3kV | |
| Capacitance @ Vr, F | 40pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 100A | |
| Reverse Voltage | 1.3kV | |
| Recovery Time | 3 μs | |
| RoHS Status | ROHS3 Compliant | |
| Radiation Hardening | No |
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
50/60 Hz Mains Rectification
Power Supplies
Polarity Protection
Commercial Grade
The suffix- AQ: in AEC-Q101 qualification
Vishay Intertechnology, Inc. is an American manufacturer of discrete semiconductors and passive electronic components founded by Polish-born businessman Felix Zandman. Vishay has manufacturing plants in Israel, Asia, Europe, and the Americas where it produces rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors.
Download datasheets and manufacturer documentation for Vishay Semiconductor Diodes Division BY255GP-E3/73.
Download datasheets and manufacturer documentation for BY255GP-E3/73
