DIODE GEN PURP 800V 2A DO201AD
BY299 is a kind of soft recovery plastic rectifier. This article enforces pinout, datasheet, features, equivalents, and other details about the BY299 diode. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
BY299P-E3/73

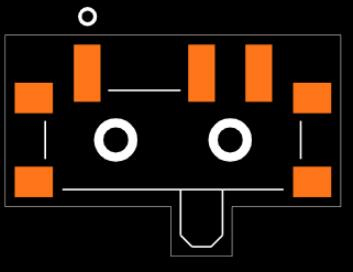

Footprint
3D Model

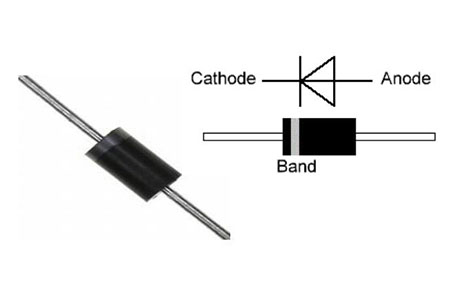

The BY299 is a Soft Recovery Rectifier with axial leads terminals, molded plastic case, and band denotes cathode end polarity. It features high surge current capability, 2-ampere operation at TA=55°C with no thermal runaway, and fast switching for high efficiency. The typical applications of BY299 are the rectification of medium frequencies, snubber, or Bootstrap diodes Commercial grade.
Vishay Semiconductor Diodes Division BY299P-E3/73 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Diodes Division BY299P-E3/73.
Vishay Semiconductor Diodes Division BY299P-E3/73 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Diodes Division BY299P-E3/73.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Box (TB) | |
| Published | 2011 | |
| JESD-609 Code | e3 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | MATTE TIN | |
| Max Operating Temperature | 125°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -50°C | |
| Applications | EFFICIENCY | |
| Additional Feature | FREE WHEELING DIODE | |
| HTS Code | 8541.10.00.80 | |
| Terminal Form | WIRE | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 10μA @ 800V | |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 3A | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -50°C~125°C | |
| Max Surge Current | 70A | |
| Output Current-Max | 2A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Voltage | 1.3V | |
| Max Reverse Voltage (DC) | 800V | |
| Average Rectified Current | 2A | |
| Number of Phases | 1Phase | |
| Reverse Recovery Time | 500 ns | |
| Peak Reverse Current | 10μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 800V | |
| Capacitance @ Vr, F | 28pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 70A | |
| Reverse Voltage | 800V | |
| Recovery Time | 500 ns | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
Fast switching for high efficiency
Low forward voltage drop
Low leakage current
High forward surge capability
Solder dip 275 °C max. 10 s, per JESD 22-B106
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
For use in power supply quick switching rectification, inverters, converters, and freewheeling diodes for consumer and telecommunication applications.
STTH310, STTH310RL, STTH208, STTH5L06, STTH3R06, BY228, BY328, RU4DS, RH3F, RS3FS, 3TH41, STTH5L06RL, HER307, RGP208

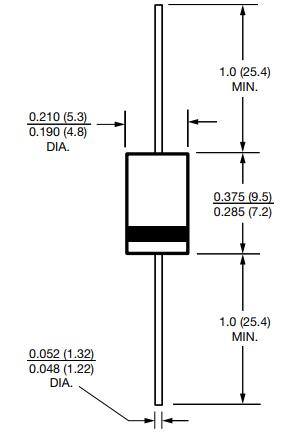

BY299 Outline Dimension
The PSA family of RF Devices provides a comprehensive portfolio to suit your design demands, and Walsin's client base covers the world with devices utilized in automotive, consumer, industrial, and medical applications.
Download datasheets and manufacturer documentation for Vishay Semiconductor Diodes Division BY299P-E3/73.
Download datasheets and manufacturer documentation for BY299P-E3/73
