TEXAS INSTRUMENTS CC1000-RTB1 RF TRANSCEIVER, SMD, TSSOP28, 1000
70
Aug 9, 2021
Dave Emma
TEXAS INSTRUMENTS CC1000-RTB1 RF TRANSCEIVER, SMD, TSSOP28, 1000
The CC1000-RTB1 is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. This article covers its datasheet, pinout, application and more details about CC1000-RTB1.
CC1000-RTB1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $16.90491 | $16.9 |
| 10+ | $15.94803 | $159.48 |
| 100+ | $15.04531 | $1504.53 |
| 500+ | $14.19369 | $7096.85 |
| 1000+ | $13.39027 | $13390.27 |

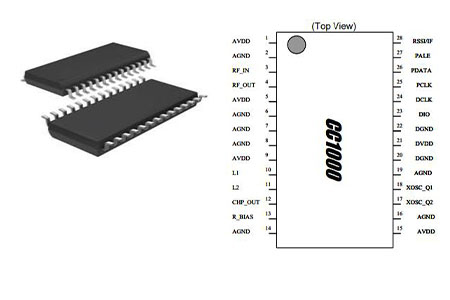

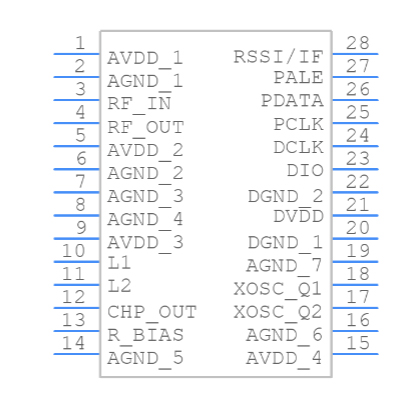

Symbol

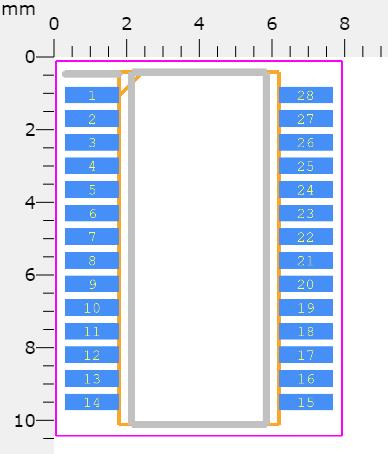

Footprint

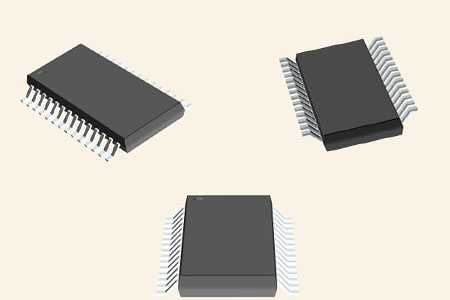

3D Model
The CC1000-RTB1 is a true single-chip UHF transceiver designed for very low power and very low voltage wireless application, which is based on Chipcon’s SmartRF® technology in 0.35 µm CMOS.
• True single-chip UHF RF transceiver
• Very low current consumption
• Frequency range 300 – 1000 MHz
• Integrated bit synchroniser
• High sensitivity (typical -110 dBm at 2.4 kBaud)
• Programmable output power –20 to 10 dBm
• Small size (TSSOP-28 or UltraCSP™ package)
• Low supply voltage (2.1 V to 3.6 V)
• Very few external components required
• No external RF switch / IF filter required
• RSSI output
• Single port antenna connection
• FSK data rate up to 76.8 kBaud
• Complies with EN 300 220 and FCC CFR47 part 15
• Programmable frequency in 250 Hz steps makes crystal temperature drift compensation possible without TCXO
• Suitable for frequency hopping protocols
• Development kit available
• Easy-to-use software for generating the CC1000 configuration data

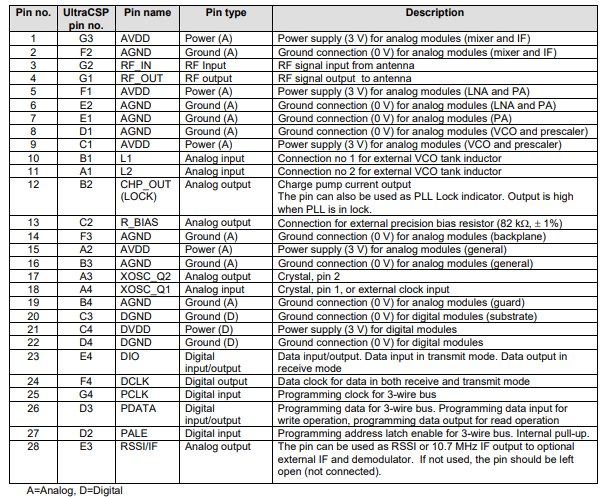

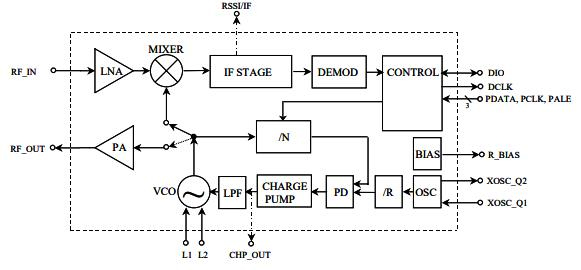

The simplified block diagram for CC1000-RTB1 is shown below.
In receive mode, CC1000-RTB1 is configured as a traditional superheterodyne receiver. In transmit mode the voltage-controlled oscillator (VCO) output signal is fed directly to the power amplifier (PA). The frequency synthesiser generates the local oscillator signal which is fed to the MIXER in receive mode and to the PA in transmit mode. The 3-wire digital serial interface (CONTROL) is used for configuration.
Texas Instruments CC1000-RTB1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CC1000-RTB1.
Texas Instruments CC1000-RTB1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CC1000-RTB1.

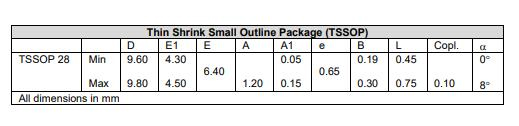

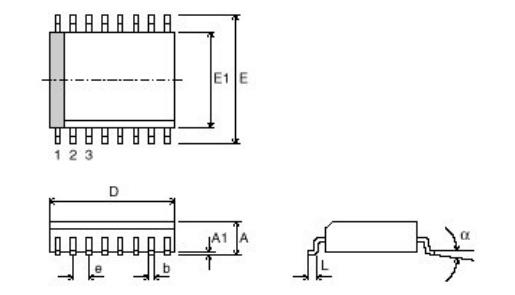

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | NRND (Last Updated: 1 week ago) | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 28-TSSOP (0.173, 4.40mm Width) | |
| Number of Pins | 28Pins | |
| Weight | 117.508773mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 28Terminations | |
| Type | TxRx Only |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 2.1V~3.6V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.65mm | |
| Depth | 4.5mm | |
| Frequency | 315MHz 433MHz 868MHz 915MHz | |
| Base Part Number | CC1000 | |
| Pin Count | 28 | |
| Operating Supply Voltage | 3V | |
| Power - Output | 10dBm Max | |
| RF Family/Standard | General ISM < 1GHz | |
| Data Rate (Max) | 76.8kBaud |
| Product Attribute | Attribute Value | |
|---|---|---|
| Serial Interfaces | UART | |
| Current - Receiving | 7.4mA~9.6mA | |
| Current - Transmitting | 5.3mA~26.7mA | |
| Number of Receivers | 1Receiver | |
| Modulation | FSK | |
| Sensitivity (dBm) | -110 dBm | |
| Height | 1.2mm | |
| Length | 9.7mm | |
| Width | 4.4mm | |
| Thickness | 1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
• Very low power UHF wireless data transmitters and receivers
• 315 / 433 / 868 and 915 MHz ISM/SRD band systems
• RKE – Two-way Remote Keyless Entry
• Home automation
• Wireless alarm and security systems
• AMR – Automatic Meter Reading
• Low power telemetry
• Game Controllers and advanced toys
The CC1000-RTB1 is very flexible and easy to use because of its main operating parameters. The typical circuit for CC1000-RTB1 is shown below.
The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-1000 MHz range.
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analogue and embedded processing chips, TIers are problem-solvers collaborating to change the world through technology.
Download datasheets and manufacturer documentation for Texas Instruments CC1000-RTB1.
Download datasheets and manufacturer documentation for CC1000-RTB1
