CD40106 HEX Inverter: Pinout, Applications and Datasheet

The CD40106 IC consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger action on the input.

The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltages (VN) is defined as hysteresis voltage (VH).

The CD40106 device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for –55°C to 125°C ambient temperature operation.

Symbol

Footprint

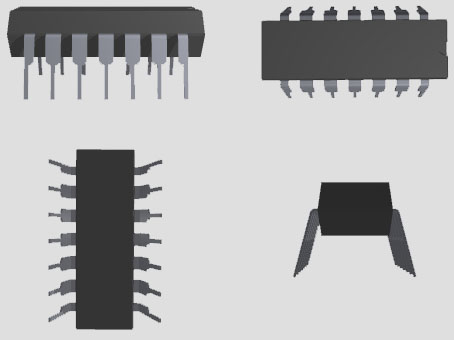

3D Model

●Schmitt Trigger – Hex Inverter

●Operating Voltage: 5V

●Low-Level Hysteresis Voltage: 0.3V

●High-Level Hysteresis Voltage: 3.5V

●Output Current High: -1mA

●Output Current Low: 1mA

●Quiescent Current: 40 nA

●Propagation Delay Time: 280 ns

●Operating Temperature Range: -55 C to + 125 C

●Available in 14-pin PDIP, GDIP, PDSO packages

●Schmitt-Trigger Action With No External Components

●Hysteresis Voltage (Typical):

– 0.9 V at VDD = 5 V

– 2.3 V at VDD = 10 V

– 3.5 V at VDD = 15 V

●Noise Immunity Greater Than 50%

●No Limit On Input Rise and Fall Times

●Standardized, Symmetrical Output Characteristics

●100% Tested For Quiescent Current at 20 V

●Maximum Input Current Of 1 µA at 18 V Over Full Package Temperature Range: – 100 nA at 18 V and 25°C

●Low VDD and VSS Current During Slow Input Ramp

●5-V, 10-V, and 15-V Parametric Ratings

Texas Instruments CD40106BE technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CD40106BE.

The CD40106 is a hex inverter Schmitt trigger, meaning it has 6 inverted Schmitt triggers inside it. A Schmitt trigger is used to avoid the problem of hysteresis.

It can also be used to smoothen a noisy single into a sharp one. Schmitt trigger gate can convert sinusoidal or triangular wave to square wave. It can also be used as a logic inverter if needed. A Schmitt trigger is also useful for debouncing a push button or other noisy input devices.

So if you are looking for an IC which can help you to get of switching noise or to create sharp square wave signals based on an input signal then this IC could be the right choice or you.

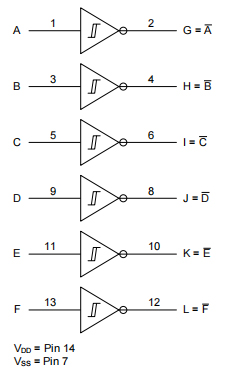

As mentioned earlier CD40106 has six INVERTING SCHMITT TRIGGER GATES which can be used as six individual gates. CD40106 internal structure is given below:

Each of these 6 gates can be used individually based on our application. Since the gates are inverting we can also combine two gates to form a non-inverting gate.  The input signal can be a noise square wave or any signal wave that oscillates between the low and high hysteresis voltage.

● Noise removing circuits

● Debouncing circuits

● Hysteresis controller

● Dead band filter

● Wave and Pulse Shapers

● High-Noise-Environment Systems

● Monostable Multivibrators

● Astable Multivibrators

Texas Instruments (TI) is an American technology company headquartered in Dallas, Texas, which designs and manufactures semiconductors and various integrated circuits, and sells them to electronic designers and manufacturers worldwide. It is one of the top 10 semiconductor companies in global sales. The company focuses on the development of analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and educational technology products, including calculators, microcontrollers and multi-core processors. As of 2016, the company has 45,000 patents worldwide.

Download datasheets and manufacturer documentation for Texas Instruments CD40106BE.
