The CD4047B is a-low-power CMOS logic based multivibrator circuit IC. This article mainly covers its datasheet, pinout, circuit and more information about CD4047B.
CD4047B Multivibrator IC: Datasheet, Pinout and Circuit
IC MONO/ASTBL MULTVIBRTR 14-SOIC The CD4047B is a-low-power CMOS logic based multivibrator circuit IC.
596
Jul 14, 2021
Horace Harte
CD4047BMG4
19In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.94592 | $1.95 |
| 10+ | $1.83577 | $18.36 |
| 100+ | $1.73186 | $173.19 |
| 500+ | $1.63383 | $816.92 |
| 1000+ | $1.54135 | $1541.35 |
Unit Price:$1.94592
Subtotal: $1.95
Quick Links
CD4047B Description
The CD4047B is a- low-power CMOS logic based multivibrator circuit IC. It can operate either in the monostable or astable mode. Also, this IC is easy to configure for both modes and requires few external components to operate. It has a voltage range of 3V-15V but works best at 5V.
CD4047B Pinout
CD4047B CAD Model
Symbol
Footprint
3D Model
CD4047B Features
-
Low power consumption: special CMOS oscillator for low power configuration.
-
Operating modes: unstable (one-shot) Mode and Astable (free-running) Mode.
-
Only one external R and C required.
-
Supply voltage range: 3.0V to 15V.
-
Maximum Power Dissipation(Pd): 700mW in DIP Package and 500mW in SOIC package.
-
Operating Temperature Range: -40°C to +85°C.

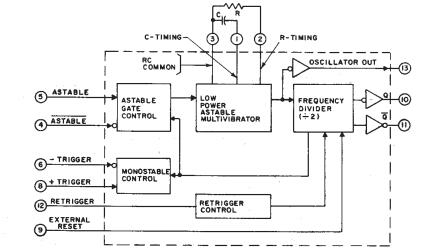

CD4047B Functional Block Diagram
Specifications
Texas Instruments CD4047BMG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CD4047BMG4.
CD4047BMG4 Tech Specifications
CD4047BMG4 Tech Specifications
Texas Instruments CD4047BMG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CD4047BMG4.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 week ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 14Pins | |
| Weight | 129.387224mg | |
| Number of Elements | 1 Element | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tube | |
| Series | 4000B | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 14Terminations | |
| Additional Feature | RETRIGGERABLE | |
| Voltage - Supply | 3V~18V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Base Part Number | CD4047 | |
| Pin Count | 14 | |
| Operating Supply Voltage | 12V | |
| Supply Voltage-Min (Vsup) | 3V | |
| Load Capacitance | 50pF | |
| Output Current | 6.8mA | |
| Number of Bits | 1Bit | |
| Propagation Delay | 80ns |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 20μA | |
| Turn On Delay Time | 1 μs | |
| Logic Function | Multivibrator | |
| Logic Type | Astable, Monostable | |
| Output Polarity | COMPLEMENTARY | |
| Max I(ol) | 0.004 A | |
| Power Supply Current-Max (ICC) | 0.06mA | |
| Schmitt Trigger Input | No | |
| Number of Data/Clock Inputs | 2Data/Clock Inputs | |
| Height | 1.75mm | |
| Length | 8.65mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
CD4047B Alternatives
CD4047BCMX, CD4047BCM, CD4047BCN.
Where to use CD4047B?
You can use CD4047B in designing low power square wave inverters. It can operate in a monostable mode. Monostable can be used in signal conditioning or time delay circuits. This IC is an ideal choice for frequency Division and time Delay applications due to its complemented buffered outputs. One drawback of this IC has a 50% duty cycle of astable output, as well as you can’t change it.
How to use CD4047B?
Multivibrators are devices that change the state of electrical signals on either a regular basis or according to the requirement. Also,CD4047B is a multivibrator IC. It can operate in two modes. A capacitor is connected externally between pins 1 and 3 to determine the pulse width of the output signal in the monostable mode and the output frequency is determined in astable mode by connecting a resistor between pins 2 and 3. A reset input is provided to reset the output of Q to 0 and the other output will be 1.
CD4047B Circuit
The diagram shown below indicates the behavior of CD4047B in monostable mode:
The diagram shown below indicates the behavior of CD4047B in astable mode:

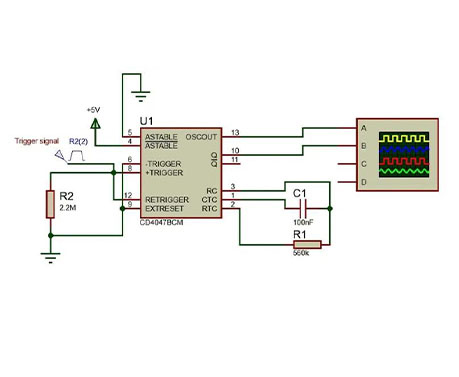

This circuit shows a complete circuit diagram with an output signal:
CD4047B Application
-
Envelope Detection
-
Frequency Multiplication
-
Frequency Division
-
Time Delay Circuits
-
Frequency Discriminators
-
Timing Circuits
CD4047B Package
CD4047B Manufacturer
Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, TIers are problem-solvers collaborating to change the world through technology.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments CD4047BMG4.
CD4047BMG4 Documents
CD4047BMG4 Documents
Download datasheets and manufacturer documentation for CD4047BMG4
Frequently Asked Questions
Can the cd4070 replace the cd4047?
NO, the CD4070 is a four exclusive OR gate, but the CD4047 is a monostable, non-stable multivibrator.
What is the difference between the cd4047 and the cd4060?
The CD4047 is astable/monostable multivibrator NSC/MOT/TI.
The CD4060 is 14-level binary serial counter/divider NSC/TI/MOT.
What function does CD4047 have?
CD4047 is a CMOS astable/monostable multivibrator, which can be connected as a monostable single channel or as a self-excited multivibrator.
