CD4060 14-stage Binary Counter to design timing delay circuits
FAIRCHILD SEMICONDUCTOR CD4060BCN IC, 4000 CMOS, 4060, DIP16, 15V
The CD4060 is a 14-stage counter and the counter is a binary ripple carry type. This article will unlock more details about CD4060. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock.
CD4060BCN

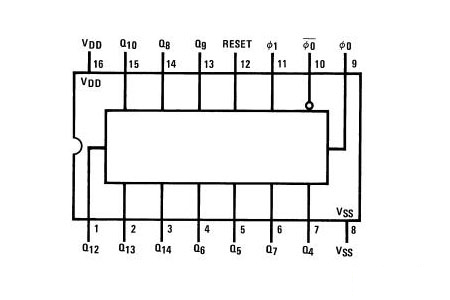

CD4060 Pinout
| Pin No | Pin Name | Pin Description |
| 7,5,4,6,14,13,15,1,2,3 | Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q11, Q12, A13 | Output pins of the Binary counter |
| 11 | RS | Clock Input Pin for setting the clock frequency |
| 12 | MR | Master Reset |
| 9 | CEXT/ | External Capacitor to set the clock frequency |
| 10 | REXT/ | External Resistor to set the clock frequency |
| 8 | Vss/Ground | Connected to the ground of the system |
| 16 | Vdd | Supply Voltage |
CD4060 Symbol
CD4060 Footprint
CD4060 3D Model
The CD4060 IC is a 14-stage counter with a binary ripple-carry counter. It's a binary counter using CMOS circuitry that's part of the CD4000 line of integrated circuits. A 14-stage ripple carries binary counter and an internal oscillator make up the circuit. We can also use RC circuits or an external crystal to configure crystal oscillators. It also includes a reset circuit that allows the counter to be reset to zero. It works with a power supply ranging from 3 to 15 volts. It comes in a number of 16-pin packages, including PDIP, CDIP, SOIC, and TSSOP.
ON Semiconductor CD4060BCN technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor CD4060BCN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Number of Pins | 16Pins | |
| Clock-Edge Trigger Type | Negative Edge | |
| Number of Elements | 1 Element | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tube | |
| Series | 4000B | |
| Published | 2007 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 16Terminations | |
| Voltage - Supply | 3V~15V | |
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 2.54mm | |
| Frequency | 12MHz | |
| Base Part Number | 4060 | |
| Supply Voltage-Min (Vsup) | 3V | |
| Propagation Delay | 1.3 μs | |
| Turn On Delay Time | 1.3 μs | |
| Reset | Asynchronous |
| Product Attribute | Attribute Value | |
|---|---|---|
| Logic Function | Counter | |
| Direction | Up | |
| Logic Type | Binary Counter | |
| Number of Bits per Element | 14Bits per Elements | |
| Trigger Type | Negative Edge | |
| fmax-Min | 4 MHz | |
| Height Seated (Max) | 5.08mm | |
| Width | 7.62mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
Schmitt triggered inputs which allow unlimited rise and fall times
Fully Static operation with buffered inputs and outputs
Counting range: 0 to 16383 (In decimal)
The maximum Clock Frequency is 30MHz at 15V
Medium speed operation: 8MHz type. at VDD = 10V
Pins and function compatible with TTL series
Reset Propagation Delay: 25ns at 5V
RC Oscillator Frequency of 690kHz Min. at 15V
Timers
Time Delay Circuits for creating long time delays
Frequency divider
counter circuit
CD4060 Schematic
The Alternative parts for CD4060:
CD4024B(7-bit)
CD4024B(12-bit)
The CD4060 is a 14-bit Binary Counter IC. It has 12 output pins ranging from Q1 to Q14, with Q2 and Q3 being the exceptions. When the pin receives an input clock pulse, the binary value is incremented from 00 0000 0000 0000 to 11 1111 1111 1111, which is equivalent to 0 to 16383 in decimal.
This IC's behaviour can be utilized to make counters and Dividers, and it's also widely used in timing applications. This IC may be of interest to you if you're seeking a 14-bit binary counter that can be incremented by a clock pulse.
It's easy to use the CD4060 binary counter IC. Simply supply power to the IC via the Vss and Ground pins; it has a wide operating voltage range of 3V to 18V but is generally used at 5V. Setting your clock frequency is the most crucial step. The internal clock oscillator of the CD4060 can be set using an external resistor (R1) and an external capacitor (C1) as demonstrated in the circuit below.
How to use CD4060
F= 1 / (2.5*R1*C1) is the formula for determining the clock frequency. The unit of F is Hz, whereas the units of R and C are ohms and farads, respectively. We chose a value of 1M for R1 and 0.22uF for the capacitor C1 in our scenario, resulting in a frequency of
F = 1 / (2.5*1000000*0.00000022)
Fosc = 1.8Hz
Similarly, we may get clock pulses of different frequencies by changing the values of R1 and C1. We can compute the time using the calculations below after we get the clock pulse.
T = 25/1.8 = 32/1.8 = 17.7
T = 17.7 seconds
Meaning the output Q5 will go high after 17.7 seconds from resetting the Counter IC.
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centres in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for CD4060BCN
