LOGIC, 2-INPUT OR GATE, 14SO, RL250
The CD4071 is a Dual Input OR Gate with Quad package. This article mainly covers datasheet, pinout, equivalent, specifications, and other details about CD4071 gate IC. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
CD4071BMT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.58259 | $1.58 |
| 10+ | $1.49301 | $14.93 |
| 100+ | $1.4085 | $140.85 |
| 500+ | $1.32877 | $664.39 |
| 1000+ | $1.25356 | $1253.56 |
CD4071 Pinout
| Pin Number | Pin Name | Description |
| 1,6,10,15 | OR Gate Input pin (A) | First Input pin for the OR gate |
| 2,5,11,14 | OR Gate Input pin (B) | Second Input pin for the OR gate |
| 3,4,12,13 | OR Gate Output pin (Q) | Output pin for the OR gate |
| 7 | Ground | Connect to the ground of the circuit. |
| 14 | Vcc (Vdd) | Used to power the IC. Typically +5V is used |
The CD4071 is a four-OR gate CMOS device. There are four OR gates built on the device, each with two inputs. It's also known as a Quad 2-Input OR Gate. An OR gate is a logic gate that outputs HIGH if any of the inputs is HIGH. Otherwise, the output is otherwise LOW.
CD4071 Footprint
CD4071 3D Model
Texas Instruments CD4071BMT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CD4071BMT.
Texas Instruments CD4071BMT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CD4071BMT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 14Pins | |
| Weight | 129.387224mg | |
| Logic Level-High | 3.5V ~ 11V | |
| Logic Level-Low | 1.5V ~ 4V | |
| Number of Elements | 4 Elements | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | 4000B | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 14Terminations | |
| Termination | SMD/SMT | |
| Packing Method | TR | |
| Voltage - Supply | 3V~18V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 4Functions | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | CD4071 | |
| Pin Count | 14 | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Max Output Current | 6.8mA | |
| Supply Voltage-Min (Vsup) | 3V | |
| Load Capacitance | 50pF | |
| Output Current | 6.8mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Propagation Delay | 90 ns | |
| Quiescent Current | 1μA | |
| Logic Function | OR | |
| Number of Inputs | 2Inputs | |
| Logic Type | OR Gate | |
| Max I(ol) | 0.0068 A | |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF | |
| Schmitt Trigger | NO | |
| Power Supply Current-Max (ICC) | 0.03mA | |
| Height | 1.75mm | |
| Length | 8.65mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Dual Input OR Gate – Quad Package
Typical Operating Voltage: 5V
Operating Voltage Range: -0.5V to +20V
DC input current: ±10mA
Power Dissipation: 500mW
Minimum logic Low voltage @+5V: 1.5V
Minimum Logic High voltage @+5V: 3.5V
Propagation Delay @5V: 250ns (maximum)
Transition Time @5V:200ns (maximum)
Available in 14-pin PDIP, GDIP, PDSO packages
CD4072, CD4075, 74LS32, 74LS00, 74LS02, 74LS08, 74LS86
Encoders
Basic Logic Circuits
Networking and Digital Systems
Decoders
Encoders and Decoders
Multiplexers and De-multiplexers
Oscillator circuits
This C4071 is used to develop logic-level circuits in digital electronics. There are four OR gates in this IC. You can use this IC if you need OR operation in a low-power application with a wide voltage range. Encoders and Decoders are also designed with it. This IC can also be used in applications that demand the checking of many events. If multiple events occur, some action must be taken, such as checking the temperature or pressure of an industrial plant. CD4071 can be used to detect temperature or a variable. If it surpasses the reference value, the system will receive a command to take action.
To use any of the OR logic gates on the chip, we must first connect two pins to the power supply, VDD, and GND. The voltage ranges from 3 to 15 volts.
Some chip versions can handle up to 20V. The input pins to the four OR logic gates of the IC are pins A and B. The inputs will determine the output, hence the outputs from the OR logic gates will be Q-pins.

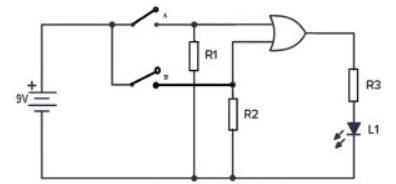

CD4071 Circuit
This sample explains how CD4071 works. The OR gate's functioning principle allows us to observe all logical inputs and outputs.
CD4071 Dimensions Outline
Texas Instruments (TI) emerges as a globally recognized semiconductor manufacturer expanded into 35 countries. It has seen rapid growth. In 1958, TIer firstly introduced the working integrated circuit. And today more than 30,000 TIers worldwide are committed to designing, manufacturing, and selling analog and embedded processing chips. They aspire to solve challenges as well as change the world through their technologies.
Download datasheets and manufacturer documentation for CD4071BMT
