CDSOT23-SM712 Tvs Diode Surface SOT-23-3 14V Clamp[FAQ]: Datasheet, Pinout, and Applications

TVS DIODE 7V/12V 14V/26V SOT23-3 The CDSOT23-SM712 device protects data ports from ESD, EFT, and Surge. This article is going to introduce pinout, applications, features, and more details about CDSOT23-SM712.

203

Mar 30, 2022

Andy Cocker

TVS DIODE 7V/12V 14V/26V SOT23-3

The CDSOT23-SM712 device protects data ports from ESD, EFT, and Surge. This article is going to introduce pinout, applications, features, and more details about CDSOT23-SM712.

CDSOT23-SM712

30000In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$1.04044	$1.04
10+	$0.98155	$9.82
100+	$0.92599	$92.6
500+	$0.87357	$436.79
1000+	$0.82412	$824.12

Unit Price:$1.04044

Subtotal: $1.04

Quick Links

Overview of CDSOT23-SM712

The CDSOT23-SM712 device protects data ports from ESD, EFT, and Surge according to IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (Surge) standards. The Transient Voltage Suppressor Array comes with two TVS diodes, each with a Working Peak Reverse Voltage of 7 V or 12 V and a Minimum Breakdown Voltage of 7.5 V or 13.3 V. The SOT23 packed device will fit into the industry-standard SOT23 footprint without modification. The flat shape makes it easier to place equipment and reduces roll-away. Bourns® Chip Diodes meet JEDEC specifications and are simple to use.

CDSOT23-SM712 Features

RoHS compliant*
Working peak voltage 7 V or 12 V
ESD protection 30 kV max.
Surge protection

CDSOT23-SM712 Pinout

CDSOT23-SM712 Pinout

CDSOT23-SM712 Dimensions

CDSOT23-SM712 Dimensions

CDSOT23-SM712 3D Model

CDSOT23-SM712 Symbol

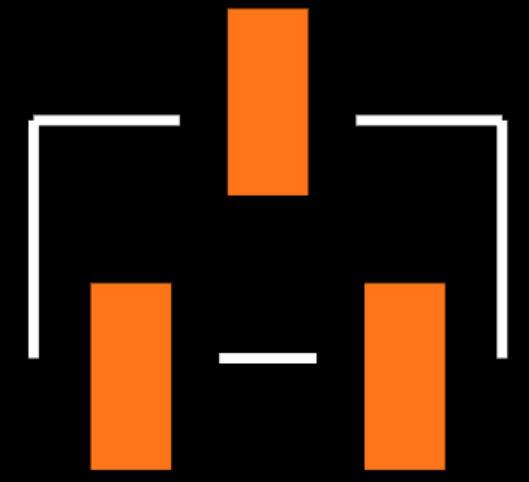

CDSOT23-SM712 Footprint

CDSOT23-SM712 3D Model

Specifications

Bourns Inc. CDSOT23-SM712 technical specifications, attributes, parameters and parts with similar specifications to Bourns Inc. CDSOT23-SM712.

CDSOT23-SM712 Tech Specifications

Bourns Inc. CDSOT23-SM712 technical specifications, attributes, parameters and parts with similar specifications to Bourns Inc. CDSOT23-SM712.

Product Attribute	Attribute Value
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Number of Pins	3Pins
Diode Element Material	SILICON
Breakdown Voltage / V	13.3V
Number of Elements	2 Elements
Reverse Stand-off Voltage	12V
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3Terminations
Termination	SMD/SMT

Product Attribute	Attribute Value
ECCN Code	EAR99
Type	Zener
Applications	RS-485
HTS Code	8541.10.00.80
Capacitance	75pF
Max Power Dissipation	600W
Terminal Form	GULL WING
Depth	1.4mm
Base Part Number	CDSOT23
Pin Count	3
Working Voltage	12V
Polarity	Bidirectional, Unidirectional
Number of Channels	2Channels
Leakage Current	20μA
Element Configuration	Dual
Power Dissipation	400W
Power Line Protection	No
Voltage - Breakdown (Min)	13.3V 7.5V
Current - Peak Pulse (10/1000μs)	17A 8/20μs

Product Attribute	Attribute Value
Max Reverse Leakage Current	20μA
Voltage - Clamping (Max) @ Ipp	26V 14V
Clamping Voltage	26V
Voltage - Reverse Standoff (Typ)	12V Max 7V Max
Peak Pulse Current	17A
Max Surge Current	30A
Peak Pulse Power	400W
Direction	Bidirectional
Test Current	1mA
Rep Pk Reverse Voltage-Max	7V
Capacitance @ Frequency	75pF @ 1MHz
Reverse Breakdown Voltage	13.3V
Max Breakdown Voltage	13.3V
ESD Protection	Yes
Height	1.17mm
Length	3.04mm
Width	1.397mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

View Similar

CDSOT23-SM712 Absolute Maximum Ratings

Parameter	Symbol	Value	Unit
Peak Pulse Power (tp= 8/20 μs)1	PPK	400	W
Peak Pulse Current (8/20 μs)	IPP	17	A
Storage Temperature	TSTG	-55 to +150	ºC
Operating Temperature	TOPR	-55 to +150	ºC

CDSOT23-SM712 Electrical Characteristics

Parameter	Symbol	Value	Unit
Minimum Breakdown Voltage @ 1 mA Pin 3-1 and Pin 3-2 Pin 1-3 and Pin 2-3	VBR	7.5 13.3	V
Maximum Working Peak Voltage Pin 3-1 and Pin 3-2 Pin 1-3 and Pin 2-3	VWM	7.0 12.0	V
Maximum Leakage Current @ VWM Pin 3-1 and Pin 3-2 Pin 1-3 and Pin 2-3	ID	20.0 1.0	μA
Maximum Clamping Voltage @ IP = 1 A Pin 3-1 and Pin 3-2 Pin 1-3 and Pin 2-3	VC	11 19	V
Maximum Clamping Voltage @ IP = 5 A Pin 3-1 and Pin 3-2 Pin 1-3 and Pin 2-3	VC	12 20	V
Maximum Clamping Voltage @ IPP = 17 A Pin 3-1 and Pin 3-2 Pin 1-3 and Pin 2-3	VC	14 26	V
Typical Junction Capacitance @ 0 V, 1 MHz (Pin 3-1 and Pin 3-2) & (Pin 1-3 and Pin 2-3)	CD	75	pF
ESD Protection (per IEC 61000-4-2) Contact - Min. Contact - Max. Air - Min. Air - Max.	ESD	±8 ±30 ±15 ±30	kV

CDSOT23-SM712 Applications

Wireless systems
Network protection
Portable electronics
RS-485 port protection

CDSOT23-SM712 Packaging information

CDSOT23-SM712 Packaging information
