Communications Processor: P5010 VS. P5020

P5010 and P5020 Description

The P5020 is based on the e5500 core offering 64-bit functionality and higher levels of efficiency performing at 3.0 Dhrystone MIPS/MHz.

The P5010 is the single core version of the P5 platform and provides a lower power alternative to the P5020. Since the part is a single core derivative it should be noted that the cache hierarchy accounts for a single core processor only.

However, the P5020 and P5010 high performance, flexible I/O and efficient hardware accelerators enable it to address varied markets from industrial control to high-end control plane and networking applications. High-end industrial applications benefit from its 64-bit ISA support to increase performance for computation-intensive applications.

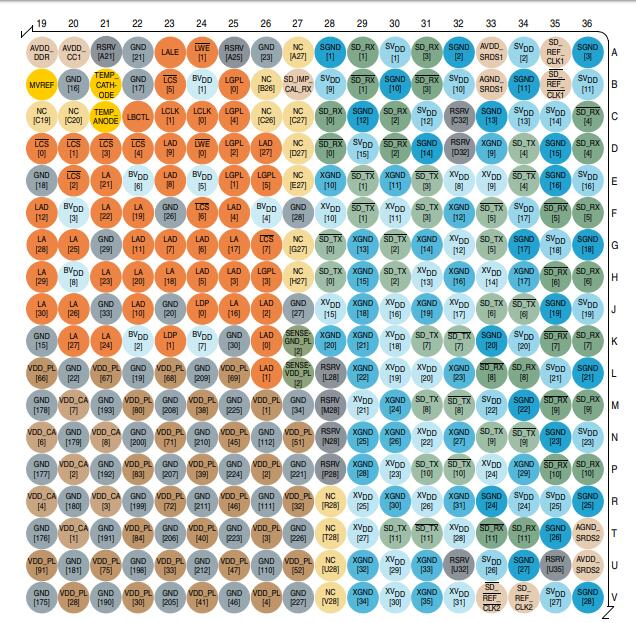

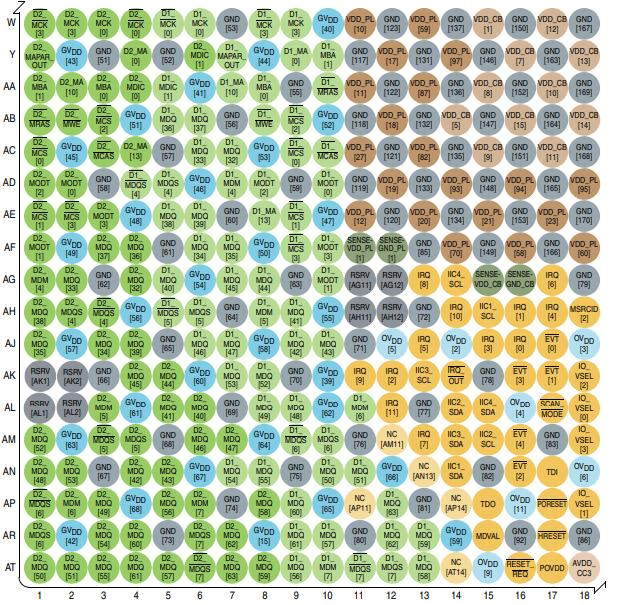

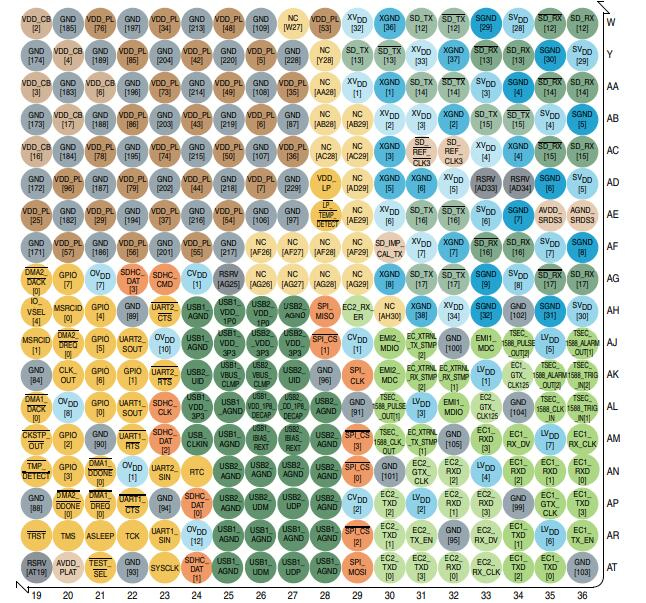

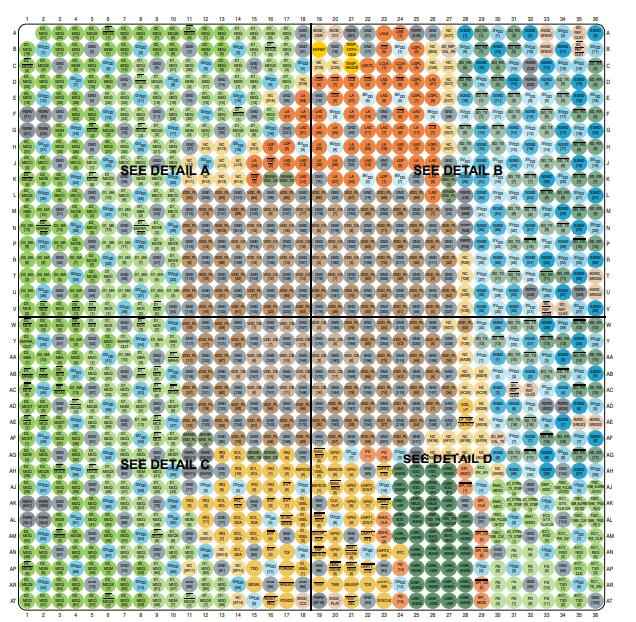

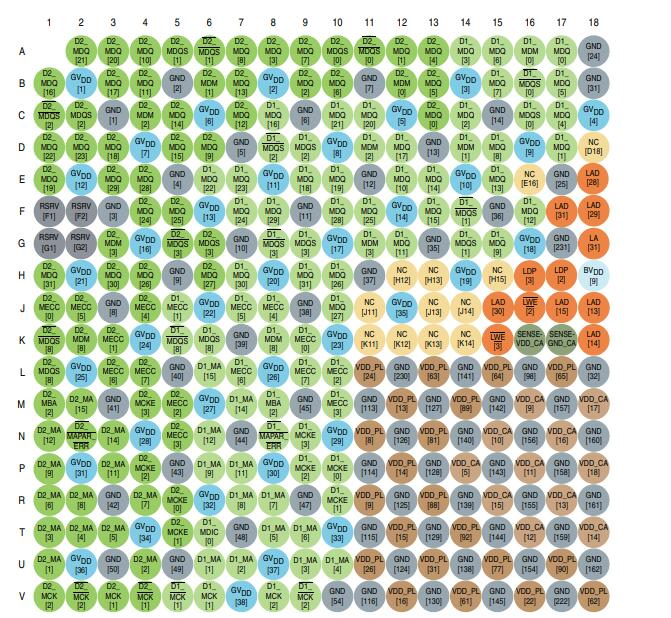

P5010 and P5020 FC-PBGA Ball Layout Diagrams

P5010 and P5020 Features

• Two e5500 Power Architecture cores (one on the P5010)

– Each core has a backside 512-Kbyte L2 Cache with ECC

– Three levels of instructions: User, Supervisor, and Hypervisor

– Independent boot and reset

– Secure boot capability

• CoreNet fabric supporting coherent and non-coherent transactions amongst CoreNet endpoints

• 2-Mbyte CoreNet platform cache with ECC (one on the P5010)

• One 10-Gigabit Ethernet (XAUI) controller

• Five 1-Gigabit Ethernet controllers

– 1 Gb/s SGMII, 2.5 Gb/s SGMII and RGMII interfaces

• Two 64-bit DDR3/3L SDRAM memory controllers with ECC (one on the P5010)

• Multicore programmable interrupt controller (MPIC)

• Four I2 C controllers

• Four 2-pin UARTs or two 4-pin UARTs

• Two 4-channel DMA engines

• Enhanced local bus controller (eLBC)

• Four PCI Express 2.0 controllers/ports

• Two Serial RapidIO® controllers/ports (sRIO port) v1.3-compliant with features of v2.1

• Two serial ATA (SATA) 2.0 controllers

• Enhanced secure digital host controller (SD/MMC)

• Enhanced serial peripheral interfaces (eSPI)

• 2× full-speed USB 2.0 controllers with integrated PHYs

• RAID 5 and 6 storage accelerator with support for end-to-end data protection information

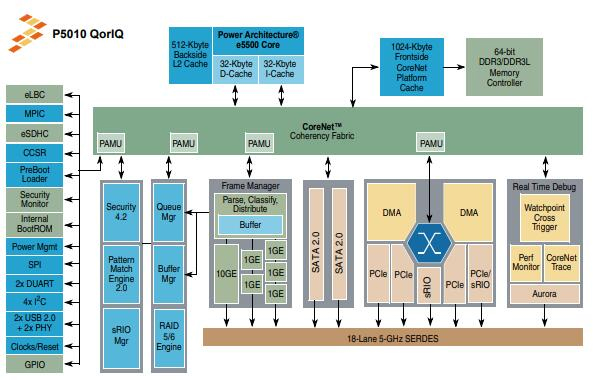

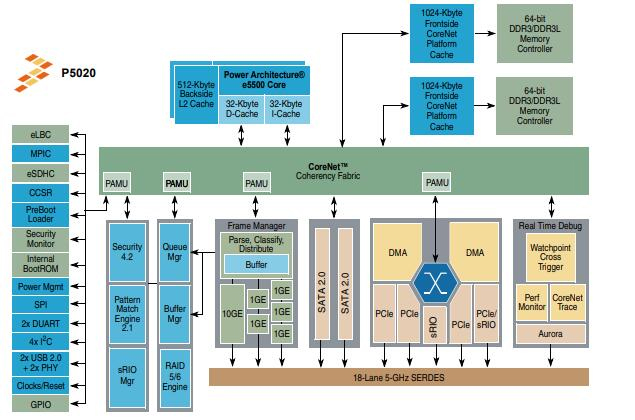

P5010 and P5020 Block Diagram

Specifications

NXP USA Inc. P5010NXE1QMB technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. P5010NXE1QMB.

P5010NXE1QMB Tech Specifications

NXP USA Inc. P5010NXE1QMB technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. P5010NXE1QMB.

Product Attribute	Attribute Value
Factory Lead Time	26 Weeks
Package / Case	1295-BBGA, FCBGA
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	QorIQ P5
Published	2002
JESD-609 Code	e1
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	5A002.A.1
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BALL

Product Attribute	Attribute Value
Peak Reflow Temperature (Cel)	245
Supply Voltage	1.1V
Terminal Pitch	1mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	P5010
JESD-30 Code	S-PBGA-B1295
Supply Voltage-Max (Vsup)	1.15V
Supply Voltage-Min (Vsup)	1.05V
Speed	2.0GHz
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
Core Processor	PowerPC e5500
Clock Frequency	166MHz
Address Bus Width	16
Boundary Scan	YES
Low Power Mode	YES

Product Attribute	Attribute Value
External Data Bus Width	64
Format	FIXED POINT
Integrated Cache	YES
Ethernet	1Gbps (5), 10Gbps (1)
Number of Cores/Bus Width	1 Core 64-Bit
Graphics Acceleration	No
RAM Controllers	DDR3, DDR3L
USB	USB 2.0 + PHY (2)
Additional Interfaces	DUART, I2C, MMC/SD, SPI
Co-Processors/DSP	Security; SEC 4.2
Security Features	Boot Security, Cryptography, Secure Fusebox, Secure JTAG, Secure Memory, Tamper Detection
SATA	SATA 3Gbps (2)
Length	37.5mm
Height Seated (Max)	3.53mm
RoHS Status	ROHS3 Compliant

View Similar

P5010 and P5020 Application

Industrial

Defense and aerospace
Single board computers
Robotics
Test/measurement

Networking

Service provider routers
Supervisor cards for swiches
Storage area networks(SAN)
Network attached storage(NAS)
Security appliances
Network admission controls

Control Plane

DSP farm control processor
Printer control processor

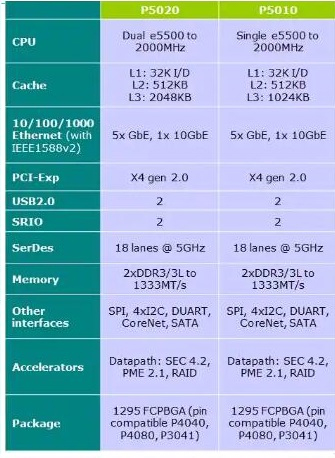

P5010 and P5020 Comparison

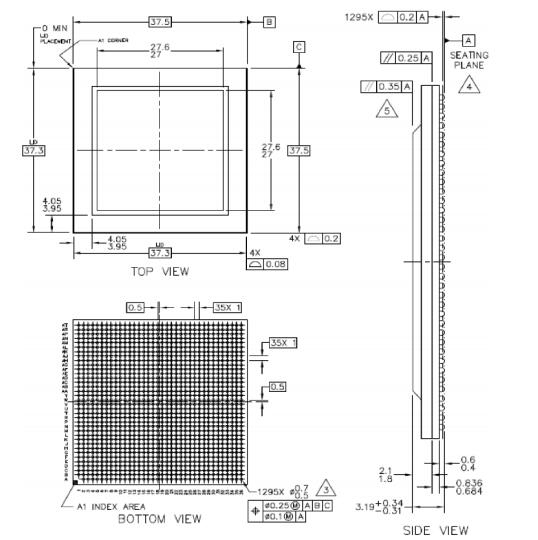

P5010 and P5020 Dimensions

The package type is 37.5 mm × 37.5 mm, 1295 flip chip plastic ball grid array (FC-PBGA).

P5010 and P5020 Manufacturer

NXP Semiconductors enables secure connections and infrastructure for a smarter world, advancing solutions that make lives easier, better and safer. As the world leader in secure connectivity solutions for embedded applications, NXP is driving innovation in the secure connected vehicle, end-to-end security & privacy and smart connected solutions markets.

Datasheet PDF

Download datasheets and manufacturer documentation for NXP USA Inc. P5010NXE1QMB.

P5010NXE1QMB Documents

Download datasheets and manufacturer documentation for P5010NXE1QMB

PCN Obsolescence/ EOL

Mult Dev 25/Sep/2019

Datasheets

P5 Series Fact Sheet

PCN Design/Specification

Errata Update 23/Jul/2015

Frequently Asked Questions

What are the P5010 and P5020?

the P5020 (dual-core) and P5010 (single-core) devices are ideally suited for compute intensive, power-conscious control plane applications.

What is e5500 core?

The P5020 is based on the 64-bit e5500 Power Architecture® core. The e5500 core uses a seven-stage pipeline for low latency response to unpredictable code execution paths, boosting its single-threaded performance.

Do the P5010 and P5020 have the same package?

Yes, 37.5 mm × 37.5 mm,1295 FCPBGA.
