RF DIR COUPLR 700MHZ-2.7GHZ 0402 Thinfilm multilayer technology is used to create the ITF High Directivity Broad Band LGA Coupler.
106
Jun 8, 2021
Bishop
RF DIR COUPLR 700MHZ-2.7GHZ 0402
Thinfilm multilayer technology is used to create the ITF High Directivity Broad Band LGA Coupler. The technology allows for the development of a miniature component with excellent high-frequency performance and a durable construction for stable automatic assembly. Over a small frequency range, the Wide Band High Directivity Coupler maintains a robust coupling factor.
CP0402W2700FNTR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.22695 | $1.23 |
| 10+ | $1.1575 | $11.58 |
| 100+ | $1.09198 | $109.2 |
| 500+ | $1.03017 | $515.09 |
| 1000+ | $0.97186 | $971.86 |
• Inherent Low Profile
• Self Alignment during Reflow
• Excellent Solderability
• Low Parasitics
• Better Heat Dissipation
• Operating/Storage Temp -40°C to +85°C
• Power Rating 3W RF Cont
AVX Corporation CP0402W2700FNTR technical specifications, attributes, parameters and parts with similar specifications to AVX Corporation CP0402W2700FNTR.
AVX Corporation CP0402W2700FNTR technical specifications, attributes, parameters and parts with similar specifications to AVX Corporation CP0402W2700FNTR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Package / Case | 0402 (1005 Metric) | |
| Number of Pins | 4Pins | |
| Packaging | Tape & Reel (TR) | |
| Published | 2013 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | SMD/SMT | |
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C | |
| Applications | General Purpose | |
| Construction | COMPONENT | |

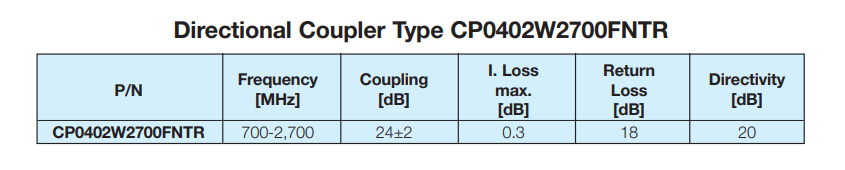

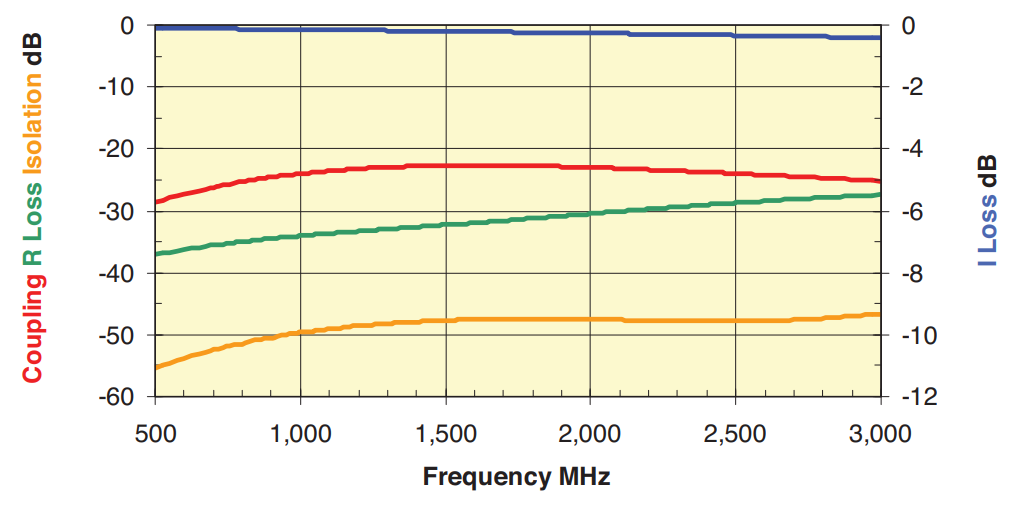

| Frequency | 700MHz~2.7GHz | |
| Case Code (Metric) | 1005 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Case Code (Imperial) | 0402 | |
| RF/Microwave Device Type | DIRECTIONAL COUPLER | |
| Insertion Loss (dB) | 0.3 dB | |
| Characteristic Impedance | 50Ohm | |
| Return Loss | 18dB | |
| Coupler Type | Standard | |
| Coupling Factor | 24dB | |
| RoHS Status | ROHS3 Compliant |
• Inherent Low Profile
• Self Alignment during Reflow
• Excellent Solderability
• Low Parasitics
• Better Heat Dissipation
• Mobile communications
• Satellite TV receivers
• GPS
• Vehicle location systems
• Wireless LAN’s
mm (inches)
| L |
1.00±0.05 (0.040±0.002) |
| W |
0.58±0.04 (0.023±0.002) |
| T |
0.35±0.05 (0.014±0.002) |
| A |
0.20±0.05 (0.008±0.002) |
| B |
0.18±0.05 (0.007±0.002) |
| S, H |
0.05±0.05 (0.002±0.002) |
Download datasheets and manufacturer documentation for AVX Corporation CP0402W2700FNTR.
Download datasheets and manufacturer documentation for CP0402W2700FNTR
