CR1220 Lithium Coin Battery：Equivalent, Application, Datasheet

BATTERY LITHIUM 3V COIN 12.5MM This article will unlock more details of CR1220,

83

Aug 14, 2021

Louis Jane

How to Replace Casio G-Shock 5146 Battery 3V CR1220 Lithium Battery Japan - Simple Steps



BATTERY LITHIUM 3V COIN 12.5MM

This article will unlock more details of CR1220, the lithium coin battery which is mainly used in high-powered devices such as keyless input devices, glucose monitors, heart rate monitors, and toys & games.

CR1220

Inquiry
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

CR1220 CAD Model

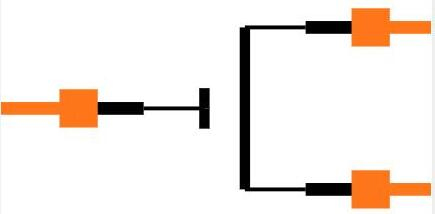

Symbol

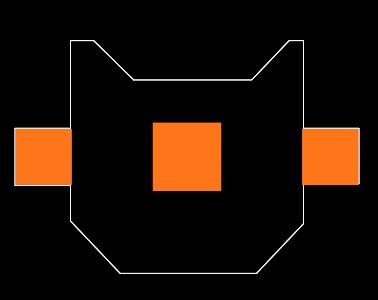

Footprint



CR1220 Description

CR1220 is a lithium coin battery that is mainly used in high-powered devices such as keyless input devices, glucose monitors, heart rate monitors, and toys & games. It comes in a cylindrical shape and may retain power for a maximum period of time. If it is spared alone for one year, only 1% of the total battery capacity will be discharged.



CR1220 Features

• Good pulse capability

• High discharge characteristics

• Stable voltage level during discharge

• Long-term reliability



Specifications

Panasonic - BSG CR1220 technical specifications, attributes, parameters and parts with similar specifications to Panasonic - BSG CR1220.

CR1220 Tech Specifications

Panasonic - BSG CR1220 technical specifications, attributes, parameters and parts with similar specifications to Panasonic - BSG CR1220.

Product Attribute Attribute Value
Factory Lead Time22 Weeks
MaterialLithium
Weight1.2g
Voltage Rated3V
SeriesCR1220
Published2008
Size / Dimension0.49Dia x 0.08 H 12.5mmx2.0mm
Part StatusActive
Product Attribute Attribute Value
Moisture Sensitivity Level (MSL)1 (Unlimited)
Max Operating Temperature60°C
Min Operating Temperature-30°C
Voltage - Rated DC3V
Termination StyleRequires Holder
Output Voltage3V
Battery ChemistryLithium Manganese Dioxide
Battery Cell SizeCoin 12.5mm
Product Attribute Attribute Value
Capacity35mAh
Discharge Rate100μA
Chemistry/TechnologyLithium
Height2.032mm
RoHS StatusNon-RoHS Compliant
Lead FreeLead Free
0 Products View Similar

CR1220 Application

  • Keyless entry devices

  • Glucose monitors

  • Implantable cardiac defibrillators

  • Heart-rate monitors

  • Artificial cardiac pacemakers

  • Toys & games

CR1220 Dimensions

CR1220 Manufacturer

Panasonic Industrial Devices Sales Company of America is the industrial components and electronic devices division of Panasonic Corporation of North America. Panasonic Industrial Devices Sales Company of America provides key components that power the home appliances, consumer electronics, computers, communications, and commercial and healthcare products used by millions of people each day.

Frequently Asked Questions

Can I use cr2032 instead of CR1220?
No. each one has a different voltage. 1 of 6 found this helpful.
How long does the cr1220 last?
10 years. CR1220 batteries are used in a wide range of products like toys, fitness and medical appliances. These button cell lithium batteries have a shelf-life of up to 10 years.
Is CR1220 the same a CR1225?
CR1220 batteries are very similar to CR1225 batteries. The main difference is the size: CR1220 12mm(Diameter)*2.0mm(Thickness), CR1225 12(Diameter)*2.5mm(Thickness).
FAQ
Can I use cr2032 instead of CR1220?
No. each one has a different voltage. 1 of 6 found this helpful.
How long does the cr1220 last?
10 years. CR1220 batteries are used in a wide range of products like toys, fitness and medical appliances. These button cell lithium batteries have a shelf-life of up to 10 years.
Is CR1220 the same a CR1225?
CR1220 batteries are very similar to CR1225 batteries. The main difference is the size: CR1220 12mm(Diameter)*2.0mm(Thickness), CR1225 12(Diameter)*2.5mm(Thickness).
