Pin Sanyo CR14250SE lithium 3v Made in Japan
The CR14250SE is a 3V non-rechargeable Lithium Battery with 850mAh capacity. This article is going to talk about more detailed information about CR14250SE.
HomeCommunitySubjectCR14250SE Battery 3 V 1/2AA Lithium 850 mAh[Video]: Datasheet, Applications, and FAQ
CR14250SE Battery 3 V 1/2AA Lithium 850 mAh[Video]: Datasheet, Applications, and FAQ
BATTERY LITHIUM 3V CR14250 The CR14250SE is a 3V non-rechargeable Lithium Battery with 850mAh capacity. This article is going to talk about more detailed information about CR14250SE.
71
Feb 15, 2022
Gavin Yonng
CR14250SE
Inquiry
Min.: 1 Mult.: 1
Quick Links
Overview of CR14250SE
The CR14250SE is a 3V non-rechargeable Lithium Battery with 850mAh capacity. It has raised positive and flat negative terminals. 3V Lithium PLC Computer Backup Battery is widely used in numerical control systems, personal computers, and other electronics applications. This CR14250SE is a high-capacity cylindrical-type Primary Lithium Battery with a bobbin structure and laser-sealing. The CR2NP uses Lithium Manganese Dioxide chemistry for a high energy density and a wide operating temperature range of -40C to + 85C. Self-discharge is low at less than 0.5% per annum at 20C, giving an effective shelf life of 10 years.
Specifications
CR14250SE Tech Specifications
CR14250SE Tech Specifications
FDK America, Inc., a member of Fujitsu Group CR14250SE technical specifications, attributes, parameters and parts with similar specifications to FDK America, Inc., a member of Fujitsu Group CR14250SE.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 16 Weeks | |
| Weight | 9g | |
| Operating Temperature (Max.) | 85°C | |
| Operating Temperature (Min.) | -40°C | |
| Voltage Rated | 3V | |
| Size / Dimension | 0.57Dia x 0.98 H 14.5mmx25.0mm | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Termination Style | Button Top (Extending) | |
| Shelf Life | 120 Months | |
| Storage/Refrigeration Temperature | Room Temperature | |
| Terminal Type | BUTTON(+), FLAT(-) | |
| Shelf Life Start | Date of Manufacture | |
| Battery Chemistry | Lithium Manganese Dioxide |
| Product Attribute | Attribute Value | |
|---|---|---|
| Battery Cell Size | CR14250 | |
| Capacity | 850mAh | |
| Discharge Rate | 0.5mA | |
| Battery Type | PRIMARY | |
| Diameter | 14.5mm | |
| RoHS Status | Non-RoHS Compliant |

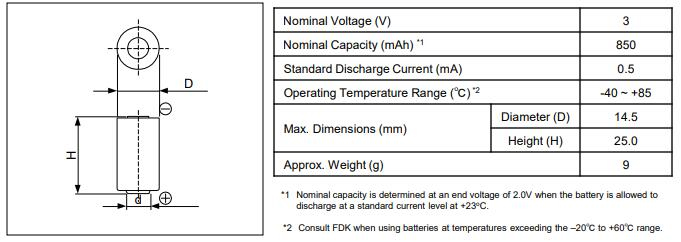

CR14250SE Dimensions
CR14250SE Dimensions
CR14250SE Applications
-
water & electricity meters
-
fire alarm
-
memory backup power source
CR14250SE Manufacturer
By manufacturing and supplying electronic products and batteries that meet customers' needs, the FDK Group hopes to contribute to the achievement of an affluent electronics society. FDK provides products to enhance the value and functionality of our client's goods, in keeping with our customer-centric strategy. Our material, circuit, and high-density technologies have been developed through time and use environmentally benign materials. We want to be known around the world as one of the top suppliers of critical and cutting-edge gadgets, and we want to help advance these and other emerging technologies while also protecting the environment.
Datasheet PDF
CR14250SE Documents
CR14250SE Documents
Download datasheets and manufacturer documentation for CR14250SE
Datasheets
CR14250SE Spec
Frequently Asked Questions
What’s the operating temperature of CR14250SE?
-40°C~85°C TA.
What’s the capacity of CR14250SE?
850mAh.
What’s the discharge rate of CR14250SE?
0.5mA.
What is a CR14250SE?
The CR14250SE is a 3V non-rechargeable Lithium Battery with 850mAh capacity. It has raised positive and flat negative terminals. Manganese dioxide material. 0.5mA standard discharge current. -40 to 85°C operating temperature.
What’s the battery voltage of CR14250SE?
3V.
FAQ
What’s the operating temperature of CR14250SE?
-40°C~85°C TA.
What’s the capacity of CR14250SE?
850mAh.
What’s the discharge rate of CR14250SE?
0.5mA.
What is a CR14250SE?
The CR14250SE is a 3V non-rechargeable Lithium Battery with 850mAh capacity. It has raised positive and flat negative terminals. Manganese dioxide material. 0.5mA standard discharge current. -40 to 85°C operating temperature.
What’s the battery voltage of CR14250SE?
3V.
