CR2032 Battery: Benefits, Pinout and Datasheet

The CR2032 is a 3 volt lithium coin cell battery that powers many of most popular devices.

These little batteries are known to be able to withstand a range of temperatures and has been operable in temperatures from -30°C to 85°C.

In most cases under normal circumstances, these batteries last for 3-5 years.

Their compact design makes them suitable for some of the slimmest of sensors. CR2032 batteries are a type of non-rechargeable lithium coin or “button” cell battery.

The CR2032 battery has a voltage of up to 3 volts and a capacity of up to 240mAh. The CR2032 is the most common lithium cell battery in the world. The battery CR2032 is also known as BR2332, BR2032, DL2032, EA2032C, ECR2032, L2032, LF1/2V, LM2032, CR2032, CR2332, 2032, 5004LC, AWI L14,RFA-35 and Seiko SB-T15.

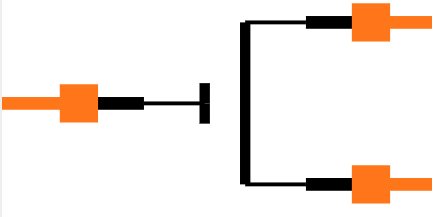

Symbol

Footprint

• Good pulse capability

• High discharge characteristics

• Stable voltage level during discharge

• Long-term reliability

• Nominal Voltage: 3.0 Volts

• Maximum Current: 0.19A

• Non - Rechargeable Disposal battery

• Typical Capacity: 240 mAh @ 20°C 15kΩ Load

• Service Life: ~720 Hrs @20°C 15kΩ Load

• Typical Weight: 3.0 grams (0.10 oz.)

• Operating Temp: -30C to 60C

• Self-Discharge: ~1% / year

Panasonic - BSG CR2032 technical specifications, attributes, parameters and parts with similar specifications to Panasonic - BSG CR2032.

1. Good pulse and high discharge rate performance

2. Wide operating temperature range

3. Stable discharge voltage

4. No passivation

5. Long operating life and shelf life

6. Self-discharge rate less than 3% per year at 20°C

7. Excellent safety at hermetically sealed case

8. Ability to provide a variety of welded termination tabs for all cell types.

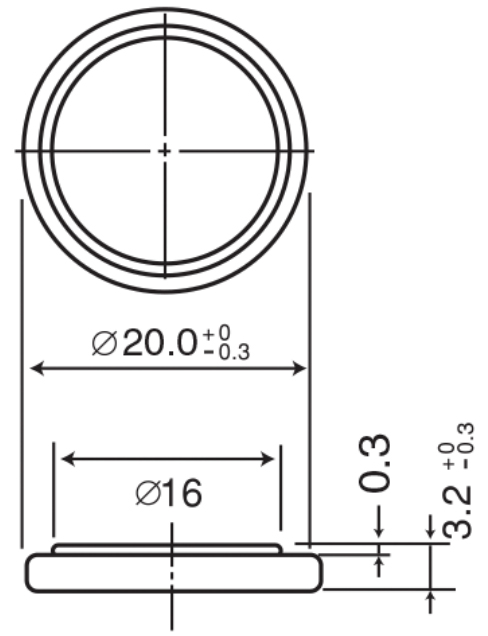

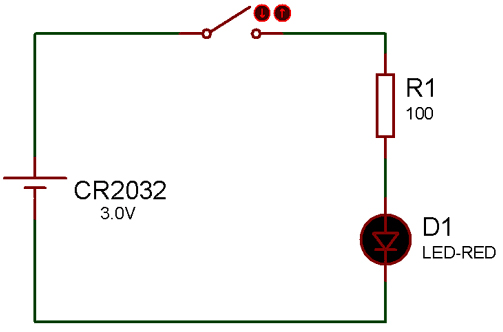

There are many application of coin cell batteries, the below circuit shows you that how to connect a CR2032 coin cell battery with a simple LED circuit. CR2032 provide a nominal voltage of 3.0V, to power up a simple LED we need a minimum voltage of 2.2V so we have used the resistance for protection or current limiting.
