CR2450 Battery: Datasheet, Equivalent, Features

BATTERY LITHIUM 3V COIN 24.5MM CR2450 is a lithium coin 3V battery. This article mainly introduces its datasheet, equivalent,

303

Jul 17, 2021

Geoffrey Bauer

CR2450 vs CR2032



BATTERY LITHIUM 3V COIN 24.5MM

CR2450 is a lithium coin 3V battery. This article mainly introduces its datasheet, equivalent, features and more information about CR2450.

CR2450

Inquiry
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

CR2450 Description

CR2450 is a lithium coin 3V battery, designed for reliable and long-lasting power in various devices.

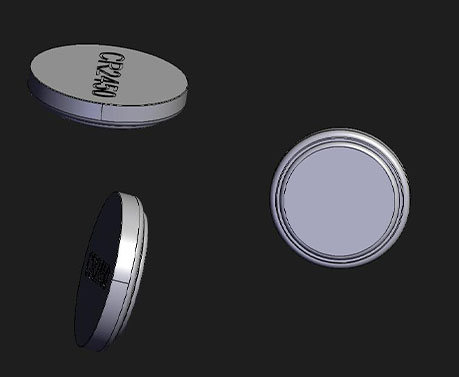

CR2450 CAD Model

Symbol

Footprint



3D Model

CR2450 Benefits

  • High voltage (3V)

  • Usable in a wide range of temperatures (-30°C to +60°C)

  • Very low self-discharge; long shelf life of up to 10 years

  • A full line up for use in a wide variety of applications

  • Very high weight-to-power ratio

  • No mercury added

  • High leak protection

Specifications

Panasonic - BSG CR2450 technical specifications, attributes, parameters and parts with similar specifications to Panasonic - BSG CR2450.

CR2450 Tech Specifications

Panasonic - BSG CR2450 technical specifications, attributes, parameters and parts with similar specifications to Panasonic - BSG CR2450.

Product Attribute Attribute Value
Factory Lead Time22 Weeks
Contact PlatingTin
MountThrough Hole
Weight6.3g
SeriesCR2450
Published2005
Size / Dimension0.96Dia x 0.20 H 24.5mmx5.0mm
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
TerminationStandard
Product Attribute Attribute Value
Max Operating Temperature60°C
Min Operating Temperature-30°C
Voltage - Rated DC3V
Reach Compliance Codeunknown
Termination StyleRequires Holder
Output Voltage3V
Voltage3V
Terminal TypeFLAT
Battery ChemistryLithium Manganese Dioxide
Number of Cells1Cell
Outside Diameter24.5 mm
Product Attribute Attribute Value
Battery Cell SizeCoin 24.5mm
Capacity620mAh
Discharge Rate200μA
Chemistry/TechnologyLithium
Battery TypePRIMARY
Diameter24.5mm
Height5mm
REACH SVHCYes
RoHS StatusNon-RoHS Compliant
Lead FreeLead Free
0 Products View Similar

CR2450 Application

  • Car remotes

  • Watches

  • Fitness appliances toys

  • Medical devices

CR2450 Dimensions

CR2450 Manufacturer

Panasonic Industrial Devices Sales Company of America is the industrial components and electronic devices division of Panasonic Corporation of North America. Panasonic Industrial Devices Sales Company of America provides key components that power the home appliances, consumer electronics, computers, communications, and commercial and healthcare products used by millions of people each day.



Datasheet PDF

Download datasheets and manufacturer documentation for Panasonic - BSG CR2450.

CR2450 Documents

Download datasheets and manufacturer documentation for CR2450

Frequently Asked Questions

What is a CR2450 used for?
Designed for reliable and long-lasting power. The Lithium Coin CR2450 batteries have certain accomplishments for applications where traditional batteries cannot be used. Use them for calculators, digital watches, laser pens, car keys, medical devices like a clinical thermometer and a tensiometer and fitness appliances.
Are 3 volt batteries interchangeable?
They usually both have the same voltage (3V), and assuming they fit in the case, they are interchangeable.
What battery is compatible with CR2450?
CR2430 battery is non-rechargeable lithium 3.0 volts battery with a typical capacity of 270-300 mAh and physical dimensions of 24.5 x 3.0 mm. As one can see, the CR2430 battery may fit the battery compartments intended for CR2450 batteries, but potential issues are contacts.
How long does a CR2450 battery last?
10 years.
FAQ
What is a CR2450 used for?
Designed for reliable and long-lasting power. The Lithium Coin CR2450 batteries have certain accomplishments for applications where traditional batteries cannot be used. Use them for calculators, digital watches, laser pens, car keys, medical devices like a clinical thermometer and a tensiometer and fitness appliances.
Are 3 volt batteries interchangeable?
They usually both have the same voltage (3V), and assuming they fit in the case, they are interchangeable.
What battery is compatible with CR2450?
CR2430 battery is non-rechargeable lithium 3.0 volts battery with a typical capacity of 270-300 mAh and physical dimensions of 24.5 x 3.0 mm. As one can see, the CR2430 battery may fit the battery compartments intended for CR2450 batteries, but potential issues are contacts.
How long does a CR2450 battery last?
10 years.
