CS3308 Analog Volume Control: Pinout, Features and Datasheet

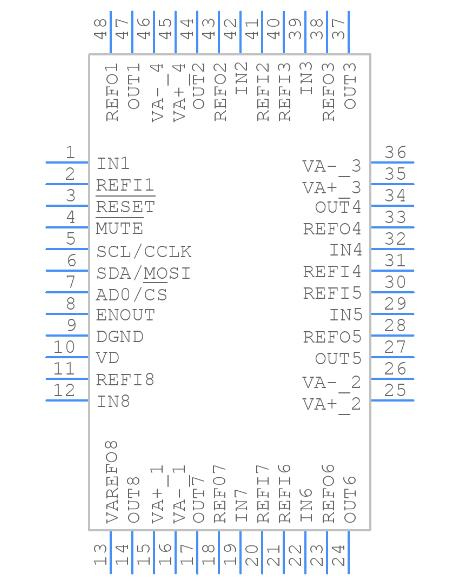

Symbol

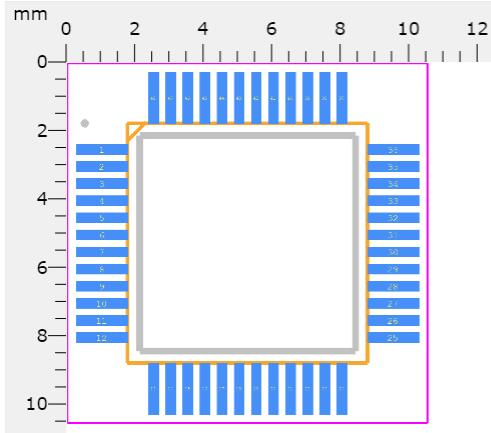

Footprint

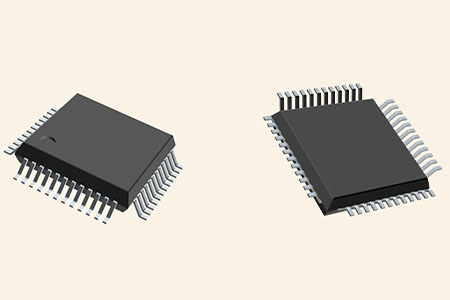

3D Model

The CS3308 is an 8-channel digitally controlled analog volume control designed specifically for high-end audio systems.

The CS3308 includes arrays of well-matched resistors and complementary low-noise active output stages.

The CS3308 implements configurable zero-crossing detection to provide glitch-free volume-level changes.

•  Complete Analog Volume Control

– 8 Independently Controllable Channels

– 3 Configurable Master Volume and Muting Controls

• Wide Adjustable Volume Range

– -96 dB to +22 dB in ¼ dB Steps

• Low Distortion & Noise

– -112 dB THD+N

– 123 dB Dynamic Range

• Noise-Free Level Transitions

– Zero-Crossing Detection with Programmable Time-Out

• Low Channel-to-Channel Crosstalk

– 120 dB Inter-Channel Isolation

• Comprehensive Serial Control Port

– Supports I²C® and SPITM Communication

– Independent Control of up to 128 Devices on a Shared 2-Wire I²C or 3-Wire SPI Control Bus

– Supports Individual and Grouped Control of all CS3308 Devices on the I²C or SPI Control Bus

• Standard Power Supply Voltages

– ±5 V Analog Supply

– +3.3 V Digital Supply

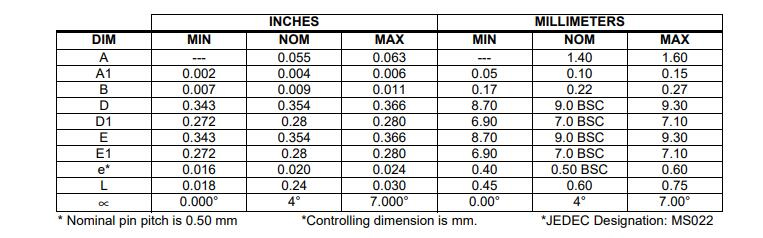

Cirrus Logic Inc. CS3308-CQZR technical specifications, attributes, parameters and parts with similar specifications to Cirrus Logic Inc. CS3308-CQZR.
