CS4270 Stereo Audio CODEC： CS4270 Datasheet, Pinout, CS4272 VS. CS4270

CS4270 Pinout

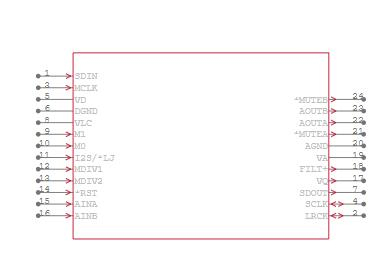

Symbol

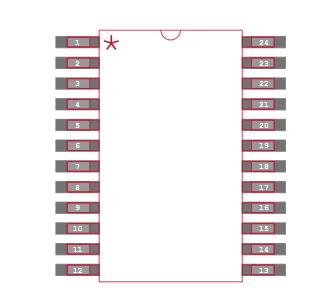

Footprint

3D Model

The CS4270  is a high-performance, integrated audio CODEC. The CS4270  performs stereo analogue-to-digital (A/D) and digital-to-analog (D/A) conversion of up to 24-bit serial values at sample rates up to 216  kHz. Standard 50/15  µs de-emphasis is available for sampling rates of 44.1 kHz for compatibility with digital audio programs mastered using the 50/15  µs pre-emphasis technique.
Integrated level translators allow easy interfacing between the CS4270  and other devices operating over a wide range of logic levels.
Independently addressable high-pass filters are available for the right and left channels of the A/D. This allows the A/D  to be used in a wide variety of applications where one audio channel and one DC measurement channel is desired.
The CS4270  is available in a 24-pin TSSOP package in both Commercial (-10° to +70° C) and Automotive grades (-40° to +85  ° C). The CDB4270  Customer Demonstration board is also available for device evaluation and implementation suggestions. Please refer to “Ordering Information” on page 47  for complete ordering information.

 System Features
– Serial Audio Port Master or Slave Operation
– Internal Digital Loopback Available
 D/A Features
– Selectable Auto-mute
– 44.1  -kHz De-emphasis Filters
– Configurable Muting Controls
– Volume Control
– Selectable Serial Audio Interface Formats
• Left-Justified up to 24  -bit
• I²S up to 24  -bit
• Right-Justified 16, and 24  -bit
 A/D Features
– Selectable  High-Pass Filter  or DC Offset Calibration
– Selectable Serial Audio Interface Formats
• Left-Justified up to 24  -bit
• I²S up to  24 -bit

The following figure shows the block diagram of CS4270

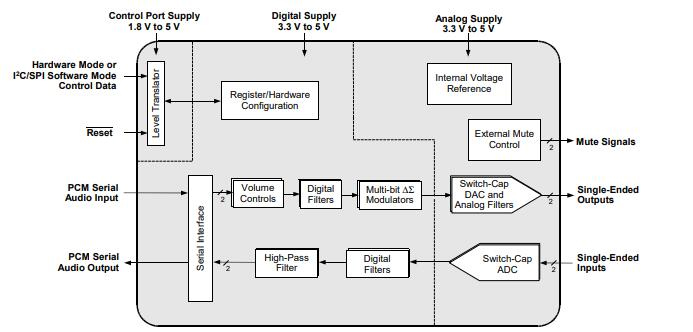

CS4270 Block Diagram

• DVD recorders

• Digital televisions

• Set-top boxes

• Effects processors

• Automotive audio systems

CS4270 Typical Connection Diagram is given below

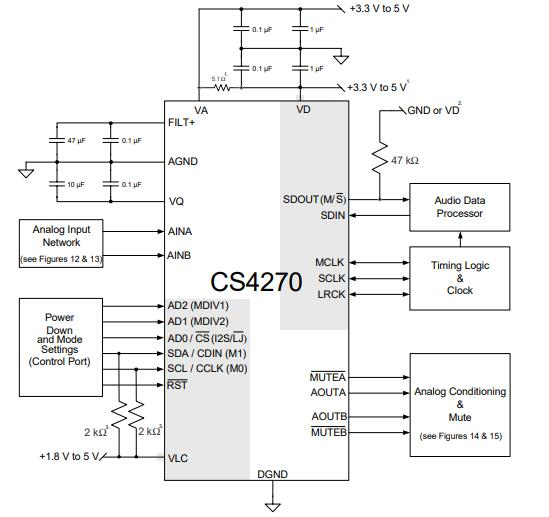

CS4270 Typical Connection Diagram

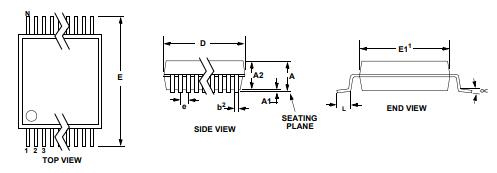

CS4270 Package

Cirrus Logic is a leader in high performance, low-power ICs for audio and voice signal processing applications. Cirrus Logic  ¿s products span the entire audio signal chain, from capture to playback, providing innovative products for the world¿s top smartphones, tablets, digital headsets, wearables and emerging smart home applications. With headquarters in Austin, Texas, Cirrus Logic is recognised globally for its award-winning corporate culture.

Cirrus Logic Inc. CS4270-CZZ technical specifications, attributes, parameters and parts with similar specifications to Cirrus Logic Inc. CS4270-CZZ.

Download datasheets and manufacturer documentation for Cirrus Logic Inc. CS4270-CZZ.
