CSD18540Q5B is designed to minimize losses in power conversion applications with a SON 5-mm × 6-mm package. The article is going to introduce the details of the device.
CSD18540Q5B, Pinout, Package
CSD18540Q5B is designed to minimize losses in power conversion applications with a SON 5-mm × 6-mm package. The article is going to introduce the details of the device.
141
Mar 1, 2022
Mag Caroline
CSD18540Q5B
2500In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.01622 | $3.02 |
| 10+ | $2.84549 | $28.45 |
| 100+ | $2.68442 | $268.44 |
| 500+ | $2.53247 | $1266.23 |
| 1000+ | $2.38913 | $2389.13 |
Unit Price:$3.01622
Subtotal: $3.02
Quick Links
CSD18540Q5B Description
This 1.8-mΩ, 60-V NexFET™ power MOSFET is designed to minimize losses in power conversion applications with a SON 5-mm × 6-mm package.

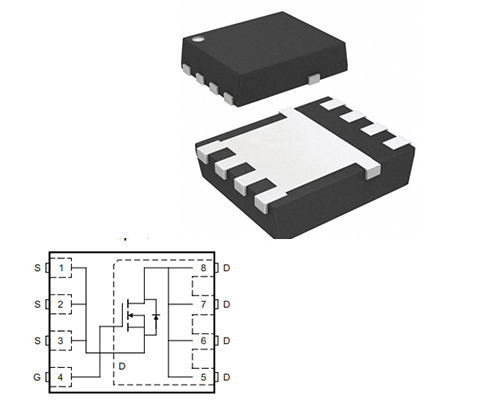

CSD18540Q5B Pinout
CSD18540Q5B CAD Model

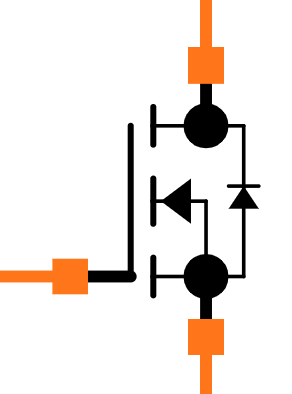

Symbol

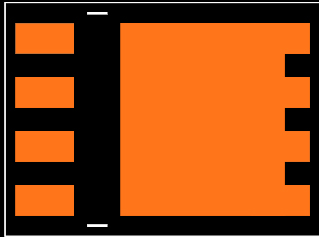

Footprint

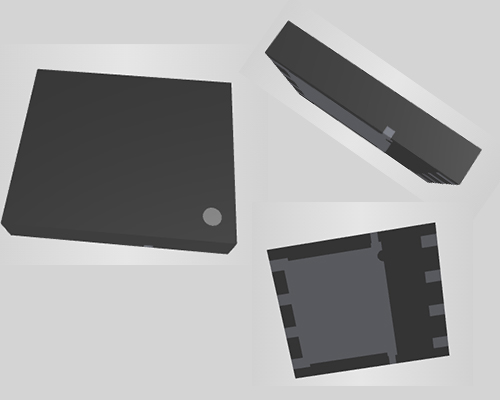

3D Model
CSD18540Q5B Features
• Ultra-Low Qg and Qgd
• Low-Thermal Resistance
• Avalanche Rated
• Lead-Free Terminal Plating
• RoHS Compliant
• Halogen Free
• SON 5-mm × 6-mm Plastic Package

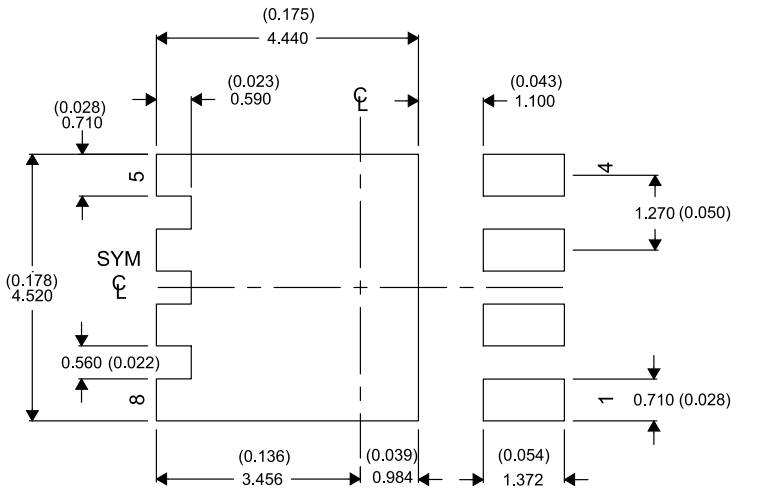

CSD18540Q5B Recommended PCB Pattern
Specifications
CSD18540Q5B Tech Specifications
CSD18540Q5B Tech Specifications
Texas Instruments CSD18540Q5B technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CSD18540Q5B.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerTDFN | |
| Surface Mount | YES | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 100A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 3.1W Ta 195W Tc | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | NexFET™ | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Additional Feature | AVALANCHE RATED | |
| HTS Code | 8541.29.00.95 | |
| Terminal Position | DUAL | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | CSD18540 | |
| JESD-30 Code | R-PDSO-N8 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| Case Connection | DRAIN | |
| FET Type | N-Channel |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 2.2m Ω @ 28A, 10V | |
| Vgs(th) (Max) @ Id | 2.3V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 4230pF @ 30V | |
| Gate Charge (Qg) (Max) @ Vgs | 53nC @ 10V | |
| Drain to Source Voltage (Vdss) | 60V | |
| Vgs (Max) | ±20V | |
| Drain Current-Max (Abs) (ID) | 28A | |
| Drain-source On Resistance-Max | 0.0033Ohm | |
| Pulsed Drain Current-Max (IDM) | 400A | |
| DS Breakdown Voltage-Min | 60V | |
| Avalanche Energy Rating (Eas) | 320 mJ | |
| Feedback Cap-Max (Crss) | 20 pF | |
| RoHS Status | ROHS3 Compliant |
CSD18540Q5B Applications
• DC-DC Conversion
• Secondary Side Synchronous Rectifier
• Isolated Converter Primary Side Switch
• Motor Control

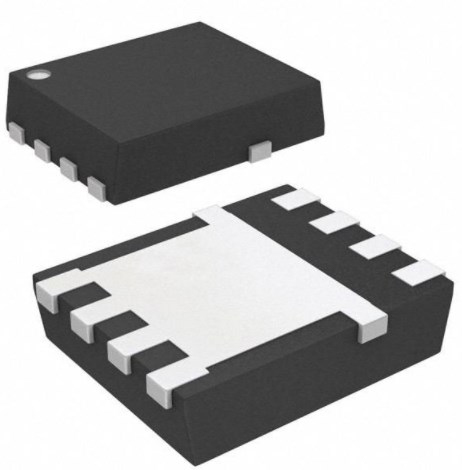

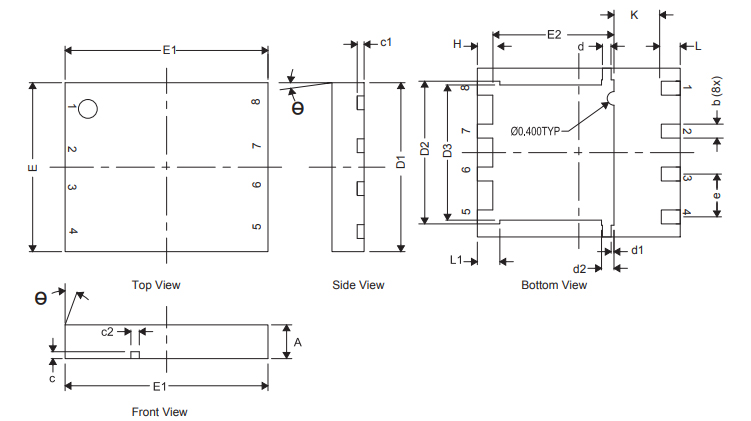

CSD18540Q5B Package
CSD18540Q5B Manufacturer
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Frequently Asked Questions
What is the recommended operating temperature of the component?
-55°C~150°C TJ.
What is the package of the device?
8-PowerTDFN.
What is the component’s number of pins?
5.
What is designed to minimize power loss?
CSD18540Q5B.
FAQ
What is the recommended operating temperature of the component?
-55°C~150°C TJ.
What is the package of the device?
8-PowerTDFN.
What is the component’s number of pins?
5.
What is designed to minimize power loss?
CSD18540Q5B.
