TRIAD MAGNETICS CST-1005 TRANSFORMER, 1000:1, 5A, 40OHM
CST-1005 is a current sense transformer, which is one of the CST series. This article mainly covers its pinout, datasheet and more detailed information about CST1005.

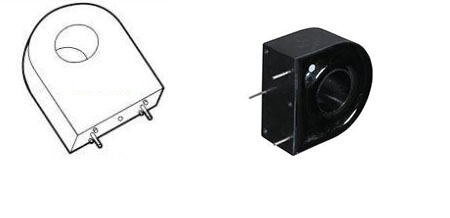

CST-1005
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.13551 | $5.14 |
| 10+ | $4.84482 | $48.45 |
| 100+ | $4.57058 | $457.06 |
| 500+ | $4.31187 | $2155.94 |
| 1000+ | $4.0678 | $4067.8 |
CST1005 current sense transformer is used to detect the current passing through a conductor that is very reliable and operate effectively between 50-60 Hz.

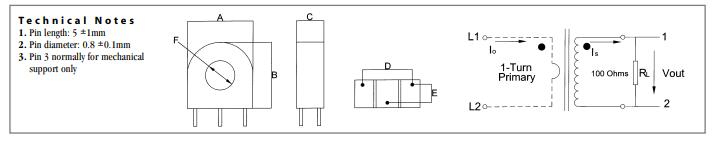

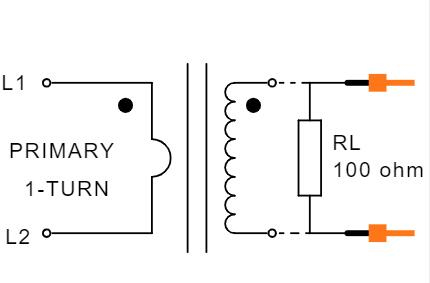

Symbol

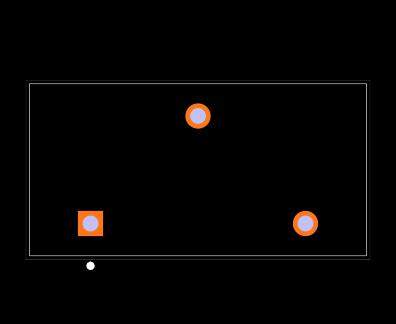

Footprint

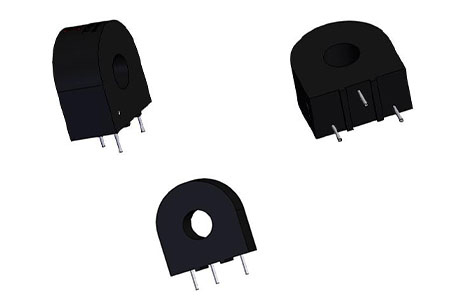

3D Model
UL rated 130ºC materials.
Operate efficiently at 50/60 HZ.
Turns Ratio:1000:1.
Triad Magnetics CST-1005 technical specifications, attributes, parameters and parts with similar specifications to Triad Magnetics CST-1005.
Triad Magnetics CST-1005 technical specifications, attributes, parameters and parts with similar specifications to Triad Magnetics CST-1005.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 17 Weeks | |
| Mount | PCB, Through Hole | |
| Mounting Type | Through Hole | |
| Weight | 0.044lb 19.96g | |
| Packaging | Bulk | |
| Series | CST | |
| Published | 2006 | |
| Size / Dimension | 0.925Lx0.472W 23.50mmx12.00mm | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | PC Pin | |
| Type | Non-Invasive (Solid Core) | |
| Power Rating | 2.5mW | |
| Current Rating | 5A | |
| Frequency | 60Hz | |
| Termination Style | PC Pin | |
| Approval Agency | UL | |
| DC Resistance (DCR) | 40Ohm | |
| Wire/Cable Diameter | 35 mm | |
| Frequency Range | 50/60Hz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Current | 5A | |
| Current Ratio | 1000:1 | |
| Primary Current | 5A | |
| Height | 24.8mm | |
| Height Seated (Max) | 0.976 24.80mm | |
| REACH SVHC | Unknown | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. They offer solutions for power conversion, filtering, isolation and more. Their products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Download datasheets and manufacturer documentation for Triad Magnetics CST-1005.
Download datasheets and manufacturer documentation for CST-1005
