D45H11 Bipolar Transistor PNP 80 V 10 A 40MHz[Video]: Datasheet, Pinout, and FAQ
POWER BIPOLAR TRANSISTOR, PNP D45H11 is a bipolar transistor. This article is going to introduce pinout, applications, features, and more details about D45H11.
137
Feb 8, 2022
Miriam Frances
D45H11
Inquiry
Min.: 1 Mult.: 1
Quick Links
Overview of D45H11
D45H11 power transistors can be used as general-purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters, and power amplifiers.
D45H11 Features
-
Low Collector-Emitter Saturation Voltage VCE(sat) = 1.0 V (Max) @ 8.0 A
-
Fast Switching Speeds
-
Complementary Pairs Simplifies Designs
-
Pb-Free Packages are Available

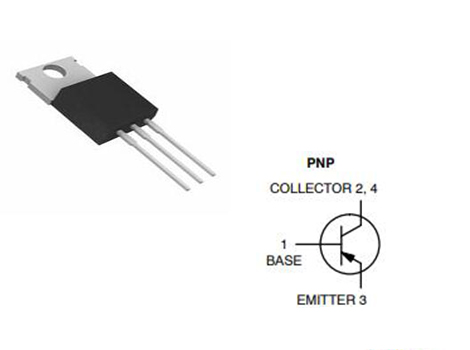

D45H11 Pinout
Specifications
Rochester Electronics, LLC D45H11 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC D45H11.
D45H11 Tech Specifications
D45H11 Tech Specifications
Rochester Electronics, LLC D45H11 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC D45H11.
| Product Attribute | Attribute Value | |
|---|---|---|
| Surface Mount | NO | |
| Transistor Element Material | SILICON | |
| Number of Elements | 1 Element | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Terminal Finish | MATTE TIN |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | SINGLE | |
| Terminal Form | THROUGH-HOLE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | unknown | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 3 | |
| JESD-30 Code | R-PSFM-T3 | |
| Qualification Status | COMMERCIAL | |
| Configuration | SINGLE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Application | SWITCHING | |
| Polarity/Channel Type | PNP | |
| JEDEC-95 Code | TO-220AB | |
| Transition Frequency | 40MHz | |
| Collector Current-Max (IC) | 10A | |
| DC Current Gain-Min (hFE) | 40 | |
| Collector-Emitter Voltage-Max | 80V | |
| RoHS Status | ROHS3 Compliant |
D45H11 Absolute Maximum Ratings
| Rating | Symbol | Value | Unit |
| Collector−Emitter Voltage D44H8, D45H8 D44H11, D45H11 |
VCEO | 60 80 |
Vdc |
| Emitter Base Voltage | VEB | 5 | Vdc |
| Collector Current − Continuous | IC | 10 | Adc |
| Collector Current − Peak (Note 1) | ICM | 20 | Adc |
| Total Power Dissipation @ TC = 25°C @ TA = 25°C |
PD | 70 2.0 |
W |
| Operating and Storage Junction Temperature Range |
TJ, Tstg | −55 to +150 | °C |
D45H11 Electrical characteristics
| Symbol | Parameter | Test conditions | Min. | Max. | |
| VCEO(sus)(1) | Collector-emitter sustaining voltage (IB = 0) |
IC = 100 mA D44H8 - D45H8 D44H11 - D45H11 |
60 80 |
V | |
| ICES | Collector cut-off current (VBE = 0) |
VCE = rated VCEO | 10 | µA | |
| IEBO | Emitter cut-off current (IC = 0) |
VEB = 5 V | 100 | µA | |
| VCE(sat)(1) | Collector-emitter saturation voltage |
IC = 8 A IB = 0.4 A | 1 | V | |
| VBE(sat)(1) | Base-emitter saturation voltage |
IC = 8 A IB = 0.8 A | 1.5 | V | |
| hFE(1) | DC current gain | IC = 2 A_ VCE = 1 V | 60 | ||
| IC = 4 A_ _ VCE = 1 V | 40 |
D45H11 Applications
-
Power Management
-
Industrial
-
Power amplifier
-
Switching circuits

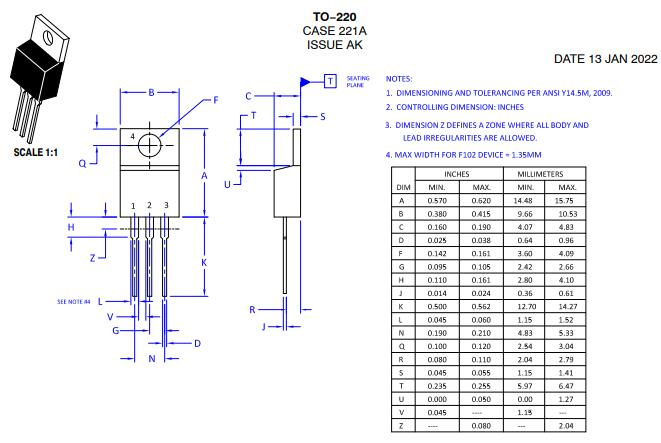

D45H11 Package information
D45H11 Package information
D45H11 Manufacturer
Rochester Electronics is the world's largest semiconductor continuous source maker. Rochester continues to develop and distribute mature products with product licensing from top manufacturers including Analog Devices, Altera, Cypress, Fairchild, Freescale, Infineon, Intel, NXP, Renesas, and Texas Instruments. This product life extension is crucial for long-term production and maintenance in industrial, transportation, and high-reliability applications. No other firm can match our variety, capabilities, or solutions, which include over 100,000 products and 15 billion units in stock.
Datasheet PDF
D45H11 Documents
D45H11 Documents
Download datasheets and manufacturer documentation for D45H11
Frequently Asked Questions
How many pins of D45H11 ?
3 pins.
What’s the operating temperature of D45H11?
-55°C~150°C TA.
What’s the material of D45H11?
SILICON.
What’s the Collector Current-Max of D45H11?
10A.
What’s the Collector-Emitter Voltage-Max of D45H11?
80V.
FAQ
How many pins of D45H11 ?
3 pins.
What’s the operating temperature of D45H11?
-55°C~150°C TA.
What’s the material of D45H11?
SILICON.
What’s the Collector Current-Max of D45H11?
10A.
What’s the Collector-Emitter Voltage-Max of D45H11?
80V.
