DIODE ARRAY GP 20V 100MA EMD3
This post will unlock more details about DA221TL, a 20 V 200 mA ultra-high-speed switching diode.
DA221TL Diode: Datasheet, Pinout, Inner Circuit
DIODE ARRAY GP 20V 100MA EMD3 This post will unlock more details about DA221TL, a 20 V 200 mA ultra-high-speed switching diode.
67
Sep 11, 2021
Willie Barrie
DA221TL
162000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.31853 | $0.32 |
| 10+ | $0.3005 | $3.01 |
| 100+ | $0.28349 | $28.35 |
| 500+ | $0.26745 | $133.73 |
| 1000+ | $0.25231 | $252.31 |
Unit Price:$0.31853
Subtotal: $0.32
Quick Links

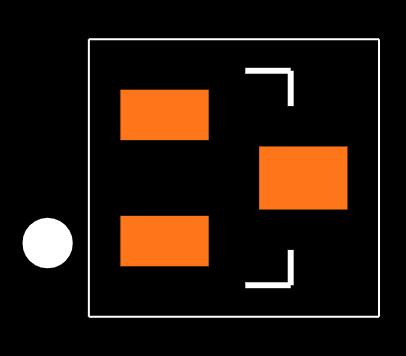

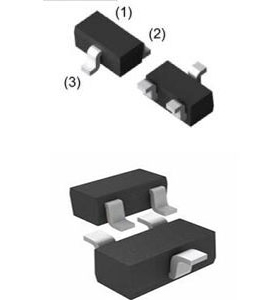

DA221TL Pinout
DA221TL CAD Model
DA221TL Description
The DA221TL is a 20 V 200 mA ultra High-speed switching diode available in the surface mount SC75A package.
Specifications
DA221TL Tech Specifications
DA221TL Tech Specifications
ROHM Semiconductor DA221TL technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor DA221TL.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-75, SOT-416 | |
| Number of Pins | 3Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| Packaging | Tape & Reel (TR) | |
| Published | 2001 | |
| JESD-609 Code | e1 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| HTS Code | 8541.10.00.70 | |
| Voltage - Rated DC | 20V | |
| Max Power Dissipation | 150mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 100mA | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Base Part Number | DA221 | |
| Pin Count | 3 | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 100nA @ 15V | |
| Power Dissipation | 150mW | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 10mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Current | 100mA | |
| Max Reverse Leakage Current | 100nA | |
| Operating Temperature - Junction | 150°C Max | |
| Max Surge Current | 200mA | |
| Output Current-Max | 0.1A | |
| Forward Voltage | 1V | |
| Max Reverse Voltage (DC) | 20V | |
| Average Rectified Current | 100mA | |
| Max Repetitive Reverse Voltage (Vrrm) | 20V | |
| Peak Non-Repetitive Surge Current | 300mA | |
| Diode Configuration | 1 Pair Series Connection | |
| Max Forward Surge Current (Ifsm) | 300mA | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
DA221TL Features
-
High reliability
-
Small mold type
DA221TL Inner Circuit

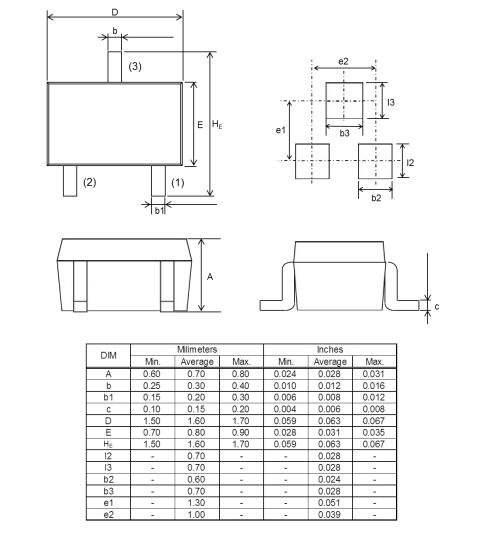

DA221TL Dimensions
DA221TL Manufacturer
ROHM was established in Kyoto in 1958 as initially a manufacturer of small electronic components. In 1967 production was expanded to include transistors and diodes, and in 1969 ICs and other semiconductor products were added to the lineup. Two years later (in 1971), going against conventional Japanese business culture, the company entered the US market by establishing a sales office and IC design centre in Silicon Valley.
Datasheet PDF
Download datasheets and manufacturer documentation for ROHM Semiconductor DA221TL.
Frequently Asked Questions
What is DA221TL？
The DA221TL is a 20 V 200 mA ultra High-speed switching diode available in the surface mount SC75A package.
What is the outline of DA221TL?
It has 3 pins, available in SC-75, SOT-416 package.
FAQ
What is DA221TL？
The DA221TL is a 20 V 200 mA ultra High-speed switching diode available in the surface mount SC75A package.
What is the outline of DA221TL?
It has 3 pins, available in SC-75, SOT-416 package.
