The DAC081S101 is a full-featured, general-purpose 8-bit voltage-output digital-to-analog converter (DAC) that runs on a single 2.7V to 5.5V supply and draws just 175A at 3.6 Volts. The article will introduce the features, pinout, and other details of the device.

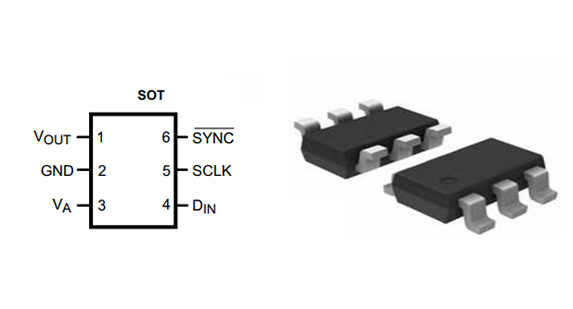

DAC081S101CIMKX/NOPB
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.51823 | $1.52 |
| 10+ | $1.43229 | $14.32 |
| 100+ | $1.35122 | $135.12 |
| 500+ | $1.27474 | $637.37 |
| 1000+ | $1.20258 | $1202.58 |

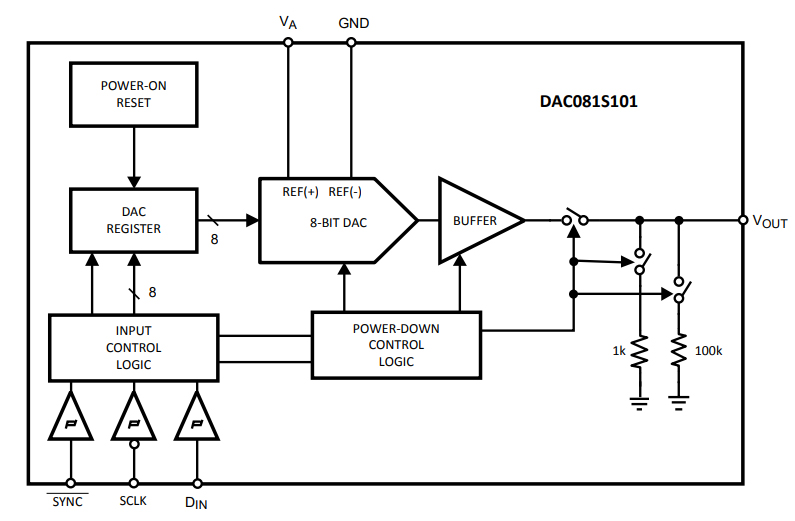

The DAC081S101CIMKX/NOPB is a full-featured, general-purpose 8-bit voltage-output digital-to-analog converter (DAC) that runs on a single +2.7V to 5.5V supply and draws just 175A at 3.6 Volts. The three-wire serial interface functions at a clock speed up to 30 MHz throughout the specified supply voltage range and is compatible with standard SPITM, QSPI, MICROWIRE, and DSP interfaces, and the on-chip output amplifier enables rail-to-rail output swing. At supply voltages ranging from 2.7V to 3.6V, competitive devices are limited to clock rates of 20 MHz.
The DAC081S101CIMKX/NOPB's supply voltage acts as its voltage reference, allowing for the largest possible output dynamic range. A power-on reset circuit ensures that the DAC output powers up to zero volts and stays that way until the device is written to. Power usage is reduced to less than a microWatt via a power-down feature.
The DAC081S101CIMKX/NOPB is an ideal candidate for use in battery-operated devices because to its low power consumption and small package size.
Symbol

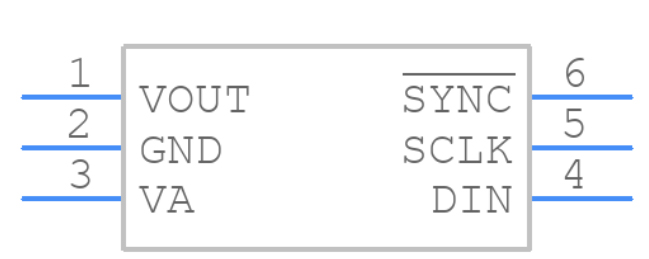

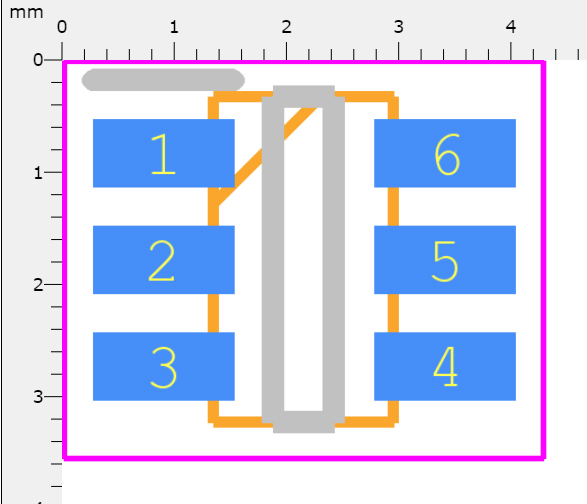

Footprint

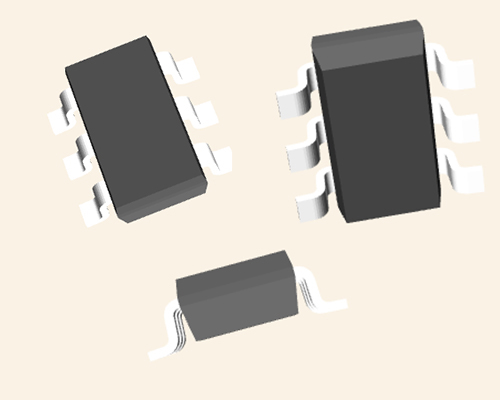

3D Model
• Guaranteed Monotonicity
• Low Power Operation
• Rail-to-Rail Voltage Output
• Power-on Reset to Zero Volts Output
• SYNC Interrupt Facility
• Wide Power Supply Range (+2.7V to +5.5V)
• Small Packages
• Power Down Feature
NA DAC081S101CIMKX/NOPB technical specifications, attributes, parameters and parts with similar specifications to NA DAC081S101CIMKX/NOPB.
Texas Instruments DAC081S101CIMKX/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DAC081S101CIMKX/NOPB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | |
| Number of Pins | 6Pins | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.95mm | |
| Base Part Number | DAC081S101 | |
| Pin Count | 6 | |
| Output Type | Voltage - Buffered | |
| Power Supplies | 3/5V | |
| Interface | SPI | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 2.7V | |
| Number of Bits | 8Bits | |
| Architecture | String DAC | |
| Converter Type | D/A CONVERTER | |
| Supply Type | Single | |
| Reference Type | Supply | |
| Data Interface | SPI, DSP |
| Product Attribute | Attribute Value | |
|---|---|---|
| Differential Output | No | |
| Resolution | 1 B | |
| Voltage - Supply, Analog | 2.7V~5.5V | |
| Voltage - Supply, Digital | 2.7V~5.5V | |
| Settling Time | 5μs | |
| Linearity Error-Max (EL) | 0.293% | |
| Integral Nonlinearity (INL) | 0.75 LSB | |
| Input Bit Code | BINARY | |
| Number of Converters | 1Converter | |
| INL/DNL (LSB) | +0.16/-0.12, +0.04/-0.02 | |
| Input Format | SERIAL | |
| Height | 1.1mm | |
| Length | 2.9mm | |
| Width | 1.6mm | |
| Thickness | 870μm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Battery-Powered Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage & Current Sources
• Programmable Attenuators
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
