The DG413 series of monolithic quad analog switches was designed to provide high speed, low error switching of precision analog signals. The DG413 has two normally open and two normally closed switches. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

DG413DY-T1-E3

Inquiry

Min.: 1 Mult.: 1

Quick Links

DG413DY Pinout

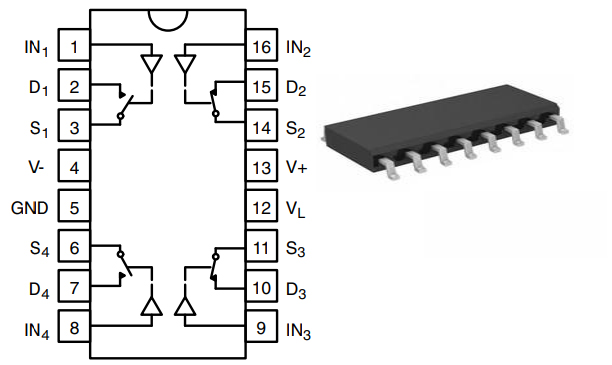

The following figure is the diagram of DG413DY pinout.

DG413DY CAD Model

The followings are DG413DY Symbol, Footprint, and 3D Model.

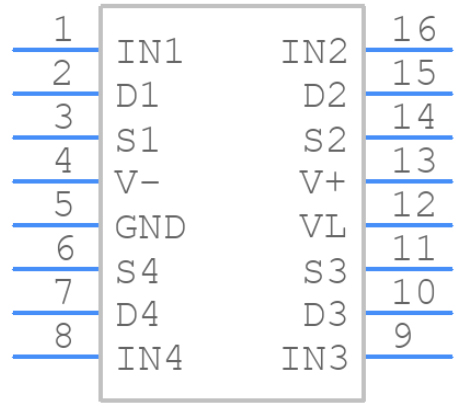

PCB Symbol

PCB Footprint

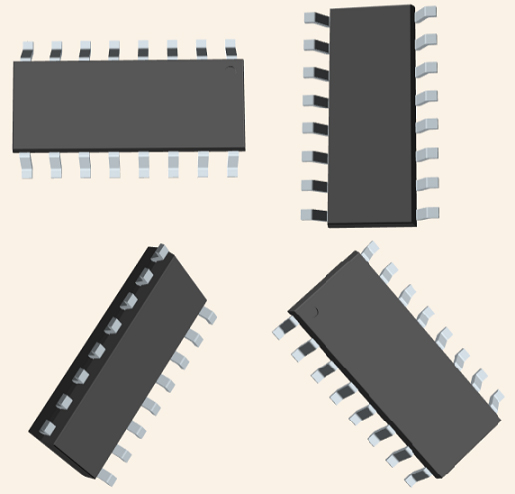

3D Model

DG413DY Overview

The DG413 series of monolithic quad analog switches was designed to provide high speed, low error switching of precision analog signals. Combining low power (0.35 µW) with high speed (t_ON: 110 ns), the DG413 family is ideally suited for portable and battery powered industrial and military applications. To achieve high-voltage ratings and superior switching performance, the DG413 series was built on Vishay Siliconix’s high voltage silicon gate process. An epitaxial layer prevents latchup. Each switch conducts equally well in both directions when on, and blocks input voltages up to the supply levels when off. The DG413 has two normally open and two normally closed switches.

This article provides you with a basic overview of the DG413DY Monolithic Quad Analog Switches, including its pin descriptions, features and specifications, etc., to help you quickly understand what DG413DY is.

DG413DY Features

● Halogen-free according to IEC 61249-2-21 Definition

● 44 V supply max. rating

● ± 15 V analog signal range

● On-resistance - R_DS(on): 25 Ω

● Fast switching - t_ON: 110 ns

● Ultra low power - P_D: 0.35 µW

● TTL, CMOS compatible

● Single supply capability

● Compliant to RoHS Directive 2002/95/EC

DG413DY Benefits

● Widest dynamic range

● Low signal errors and distortion

● Break-bevor-make switching action

● Simple interfacing

Specifications

Vishay Siliconix DG413DY-T1-E3 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix DG413DY-T1-E3.

DG413DY-T1-E3 Tech Specifications

Vishay Siliconix DG413DY-T1-E3 technical specifications, attributes, parameters and parts with similar specifications to Vishay Siliconix DG413DY-T1-E3.

Product Attribute	Attribute Value
Factory Lead Time	13 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Number of Pins	16Pins
Weight	665.986997mg
Turn Off Delay Time	145 ns
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2009
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16Terminations
Resistance	80Ohm
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	600mW
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	4Functions

Product Attribute	Attribute Value
Supply Voltage	15V
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DG413
Output	SEPARATE OUTPUT
Pin Count	16
Operating Supply Voltage	15V
Number of Channels	1Channel
Max Supply Voltage	36V
Min Supply Voltage	13V
Operating Supply Current	1μA
Nominal Supply Current	100pA
Power Dissipation	600mW
Max Supply Current	1μA
Throw Configuration	SPST
Turn On Delay Time	175 ns
Number of Inputs	4Inputs
Voltage - Supply, Single/Dual (±)	5V~44V ±5V~20V
Supply Type	Dual, Single
Neg Supply Voltage-Nom (Vsup)	-15V
Max Dual Supply Voltage	22V

Product Attribute	Attribute Value
On-State Resistance (Max)	35Ohm
Min Dual Supply Voltage	7V
Dual Supply Voltage	15V
Multiplexer/Demultiplexer Circuit	1:1
Off-state Isolation-Nom	68 dB
Current - Leakage (IS(off)) (Max)	250pA
Channel Capacitance (CS(off), CD(off))	9pF 9pF
Switch Circuit	SPST - NO/NC
Switch Time (Ton, Toff) (Max)	175ns, 145ns
Charge Injection	5pC
Switching	BREAK-BEFORE-MAKE
Switch-on Time-Max	220ns
Drain to Source Resistance	45Ohm
Height	1.55mm
Length	10mm
Width	4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

DG413DY Functional Block Diagram

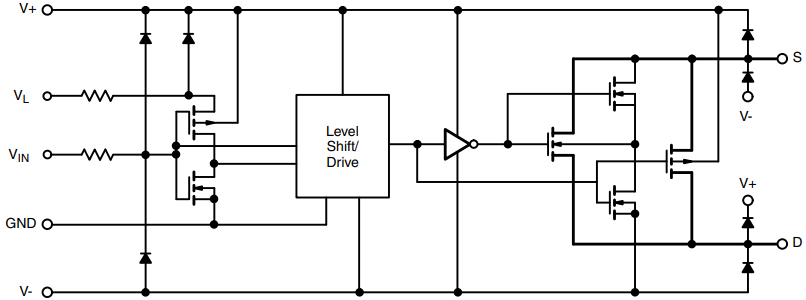

The following is the Schematic Diagram of DG413DY.

Schematic Diagram (Typical Channel)

DG413DY Equivalent

Model number	Manufacturer	Description
DG413CY+T	Maxim Integrated Products	SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, ROHS COMPLIANT, SOIC-16
DG413DY	Temic Semiconductors	SPST, 2 Func, 1 Channel, CMOS, PDSO16
DG413DY-T1-E3	Vishay Siliconix	Analog Switch Quad SPST 16-Pin SOIC N T/R
DG413DY-T2-E3	Vishay Siliconix	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, ROHS COMPLIANT, SOIC-16, Multiplexer or Switch
DG413DYZ-T	Intersil Corporation	Monolithic Quad SPST, CMOS Analog Switches; PDIP16, SOIC16, TSSOP16; Temp Range: -40° to 85°C
DG413DY-E3	Vishay Siliconix	Analog Switch Quad SPST 16-Pin SOIC N
DG413DYZ	Renesas Electronics Corporation	Monolithic Quad SPST, CMOS Analog Switches
ADG413BRZ-REEL	Analog Devices Inc	LC2MOS Precision Quad SPST Switch
DG413CY	Rochester Electronics LLC	SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, MS-012AC, SOIC-16
DG413DY+T	Maxim Integrated Products	SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, ROHS COMPLIANT, SOIC-16

DG413DY Applications

● Precision automatic test equipment

● Precision data acquisition

● Communication systems

● Battery powered systems

● Computer peripherals

DG413DY Package

The following diagram shows the DG413DY package.

Package

DG413DY Manufacturer
