DL4004 is a Glass Passivated Rectifier. This article mainly introduces Features, Pinout, datasheet and other detailed information about Micro Commercial Components DL4004.
DL4004
DL4004 is a 1 Amp Glass Passivated Rectifier, 50 to 1000 Volts.
The following figure is the Pinout of DL4004.
Pinout

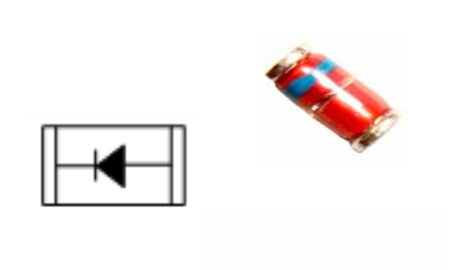

The followings are DL4004 Symbol and Footprint.
Symbol
Footprint
• Glass Passivated Junction
• Low Current Leakage
• Surface Mount Applications
• Lead-Free Finish/Rohs Compliant ("P" Suffix designates Compliant.)
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
Micro Commercial Co DL4004 technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co DL4004.
Micro Commercial Co DL4004 technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co DL4004.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | DO-213AB, MELF (Glass) | |
| Supplier Device Package | MELF | |
| Packaging | Cut Tape (CT) | |
| Published | 2004 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Base Part Number | DL4004 | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 400V | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Temperature - Junction | -65°C~150°C | |
| Voltage - DC Reverse (Vr) (Max) | 400V | |
| Current - Average Rectified (Io) | 1A | |
| RoHS Status | Non-RoHS Compliant |

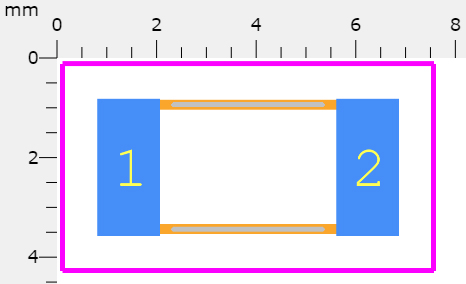

The following is the Suggested Solder Pad Layout of DL4004.
Suggested Solder Pad Layout
| Part Number | Description | Manufacturer |
| EGL41ADIODES | Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-213AB, DO-213AB, 2 PIN | International Semiconductor Inc |
| GL41B-E3/97DIODES | 100V 1A 2PIN DO-213AB - Tape and Reel | Vishay Semiconductors |
| MLL4004DIODES | RECTIFIER DIODE,400V V(RRM),DO-213AB | Freescale Semiconductor |
| BYM10-400DIODES | Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-213AB, | General Instrument Corp |
| SM4004-T/RDIODES | Rectifier Diode, 1 Element, 1A, Silicon, | Frontier Electronics Co Ltd |
| SM4002RF AND MICROWAVE | 10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN | Spectrum Microwave |

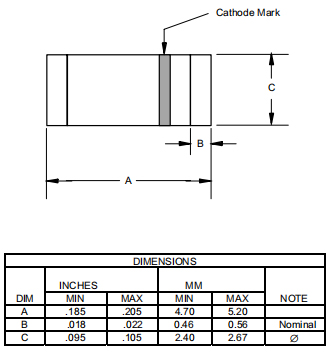

The following shows the Package of DL4004.
Package
Micro Commercial Components Corporation (MCC), headquartered in Simi Valley, California, and with manufacturing facilities in Asia, was founded in 1991 as a maker of high-quality discrete semiconductors.
Micro Commercial Company is a vertically integrated company that has its own wafer production and encapsulation facilities. Their product line is designed to provide competitive pricing and best-in-class quality while also reducing production lead times and guaranteeing on-time delivery. Diodes, transistors, IGBTs, MOSFETs, voltage regulators/references, and protective devices, as well as six discrete semiconductor types, are all part of their comprehensive range (TVS, ESD).
Download datasheets and manufacturer documentation for DL4004
