DLW21HN900SQ2L CMC 330MA 2LN 90 OHM SMD: Datasheet, Features, and Equivalent Circuit

The DLW21HN900SQ2L Common Mode Choke  Coils from Murata Electronics have a high impedance in the high-frequency region for better noise reduction. These choke coils feature a low-profile winding construction. To provide reliable transmission of high-speed signals, the DLW  series employs characteristic impedance matching. Choke coils are available in two grades: general use and automotive grade AEC-Q200. They come in a variety of case sizes with tight, low-profile construction and an ultra-high self-resonance frequency. Murata's DLW  Common Mode Choke Coils are perfect for suppressing power line noise in powertrain and safety system ECUs  (ECUs).

1. Low profile and small size (2.0x1.2x0.9mm). For small and thin sets, excellent noise reduction is available.

2. At high frequencies, a high common-mode impedance results in effective noise reduction.

3. Depending on the noise level and signal frequency, various common-mode impedances ranging from 67 to 180 ohm can be employed.

4. DLW21H is suitable for differential signal lines such as USB2.0, IEEE1394, and LVDS  because its high coupling ensures that high-speed signal transmission is not distorted. (DLW21HN900SQ2 USB2.0  )

5. The small size allows for a higher density of mounting.

Murata Electronics DLW21HN900SQ2L technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics DLW21HN900SQ2L.

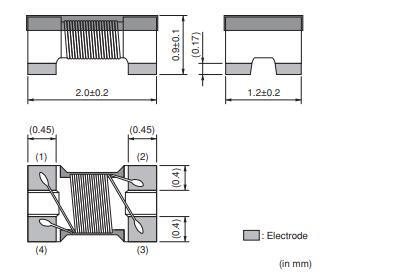

DLW21HN900SQ2L Dimensions

DLW21HN900SQ2L Equivalent Circuit

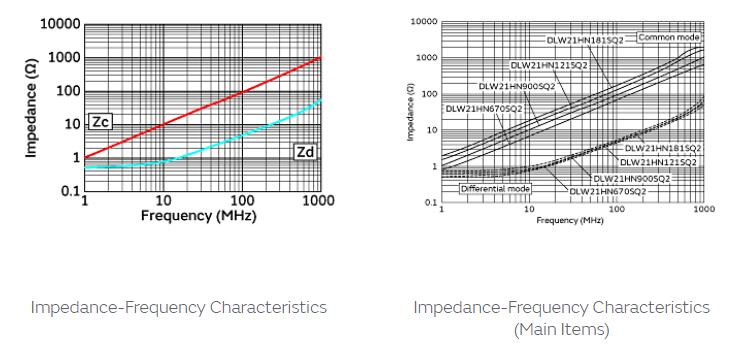

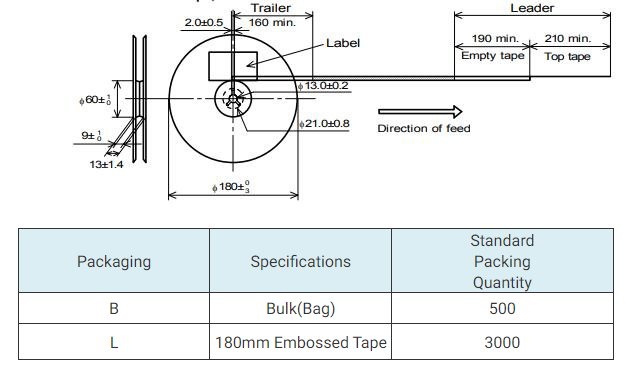

DLW21HN900SQ2L Product Data

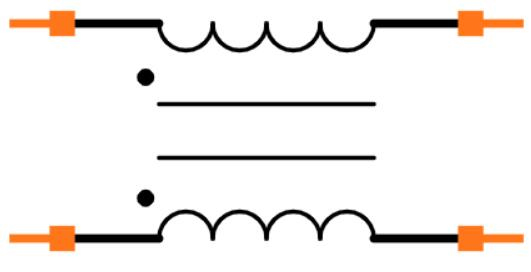

DLW21HN900SQ2L Symbol

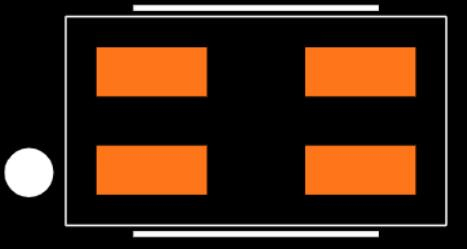

DLW21HN900SQ2L Footprint

• General-purpose

• High-speed and high-density digital equipment

• PCs, peripherals, and telecommunications equipment

• Medical equipment

• Transportation equipment (trains, ships, etc.)

• Undersea equipment

• Data-processing equipment

• Power plant control equipment

• Aerospace equipment

Murata is a world leader in the development, production, and distribution of sophisticated electronic materials, cutting-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a variety of applications, including mobile phones, household appliances, automotive applications, energy management systems, and healthcare equipment.
