Hall Effect Sensor Bipolar 3.3V/5V/9V/12V/15V/18V/24V 3-Pin SOT-23 T/R
1634
Aug 26, 2021
Kitty Wagner
Playing with DRV5053 Linear Hall Effect Sensor and Arduino bargraph display
Hall Effect Sensor Bipolar 3.3V/5V/9V/12V/15V/18V/24V 3-Pin SOT-23 T/R
DRV5053 is an analog-bipolar Hall Effect sensor. This article mainly covers datasheet, pinout, applications, and other details about DRV5053.
DRV5053EAQDBZR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.84506 | $0.85 |
| 10+ | $0.79723 | $7.97 |
| 100+ | $0.7521 | $75.21 |
| 500+ | $0.70953 | $354.77 |
| 1000+ | $0.66937 | $669.37 |
Symbol
Footprint
3D Model
The DRV5053 device is a chopper-stabilized Hall IC that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.

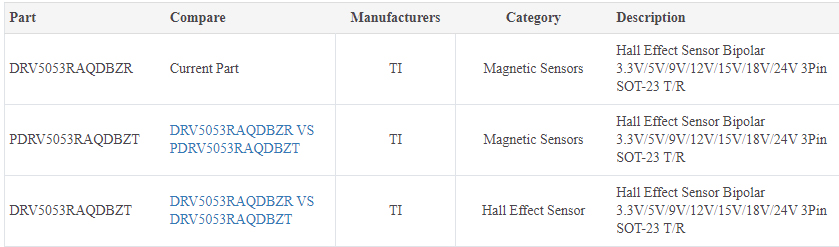

Texas Instruments DRV5053EAQDBZR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DRV5053EAQDBZR.
Texas Instruments DRV5053EAQDBZR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DRV5053EAQDBZR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q100 | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Additional Feature | IT HAS SENSITIVITY OF 45 MV/MT | |
| Voltage - Supply | 2.7V~38V | |
| Base Part Number | DRV5053 | |
| Current - Supply (Max) | 3.6mA | |
| Output Type | Analog Voltage | |
| Max Output Current | 2.3mA | |
| Termination Type | SOLDER | |
| Output Current | 2.3mA | |
| Max Supply Current | 3.6mA | |
| Output Polarity | COMPLEMENTARY | |
| Linearity | 1 % | |
| Sensing Method | Hall Effect | |
| Housing | PLASTIC |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensing Range | ±18mT | |
| Axis | Single | |
| Output Range | 0-2V | |
| Features | Temperature Compensated | |
| Input Mode | BIPOLAR | |
| Height | 1.22mm | |
| Length | 2.92mm | |
| Width | 1.3mm | |
| Thickness | 1mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
•Linear Output Hall Sensor
• Superior Temperature Stability
– Sensitivity ±10% Over Temperature
• High Sensitivity Options:
– –11 mV/mT (OA, See Figure 17)
– –23 mV/mT (PA)
– –45 mV/mT (RA)
– –90 mV/mT (VA)
– +23 mV/mT (CA)
– +45 mV/mT (EA)
• Supports a Wide Voltage Range
– 2.5 to 38 V
– No External Regulator Required
• Wide Operating Temperature Range
– TA = –40 to 125°C (Q, see Figure 17)
• Amplified Output Stage
– 2.3-mA Sink, 300 µA Source
• Output Voltage: 0.2 ~ 1.8 V
– B = 0 mT, OUT = 1 V
• Fast Power-On: 35 µs
• Small Package and Footprint
– Surface Mount 3-Pin SOT-23 (DBZ)
– 2.92 mm × 2.37 mm
– Through-Hole 3-Pin TO-92 (LPG)
– 4.00 mm × 3.15 mm
• Protection Features
– Reverse Supply Protection (up to –22 V)
– Supports up to 40-V Load Dump
– Output Short-Circuit Protection
– Output Current Limitation
Texas Instruments (TI) is a global semiconductor firm originating in 1958 and nowadays it has over 30,000 employees who design, conduct, and sell analog and product-differentiating embedded processing components in 35 countries. Aimed at changing the world of tech, TI has put great effort into becoming the solution provider coupled with a vision.
Download datasheets and manufacturer documentation for Texas Instruments DRV5053EAQDBZR.
Download datasheets and manufacturer documentation for DRV5053EAQDBZR
