TEXAS INSTRUMENTS DRV8835DSSRDRIVER, MOTOR, DUAL H BRIDGE, 12SON DRV8835 is a dual low voltage H-bridge IC.
122
Jul 31, 2021
Tony Jack
Introducing the DRV8835 Dual Motor Driver Kit for Raspberry Pi
TEXAS INSTRUMENTS DRV8835DSSRDRIVER, MOTOR, DUAL H BRIDGE, 12SON
DRV8835 is a dual low voltage H-bridge IC. This article mainly introduce its pinout, feature, application and other detailed information about Texas Instruments DRV8835.
DRV8835DSSR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.71878 | $1.72 |
| 10+ | $1.62149 | $16.21 |
| 100+ | $1.52971 | $152.97 |
| 500+ | $1.44312 | $721.56 |
| 1000+ | $1.36144 | $1361.44 |
The DRV8835 dual motor driver is a small size breakout board that has two H-bridge drivers, and can drive two DC motors or one stepper motor, as well as other devices like solenoids.

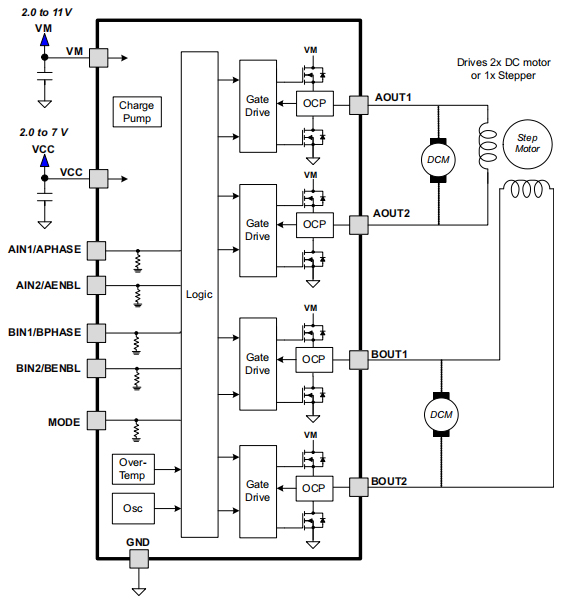

The output driver block for each consists of N-channel power MOSFET’s configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.
It can deliver 1.2A per channel continously to a pair of DC motors with an operating voltage range from 2 to 11 V. and can tolerate peak currents up to 1.5 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages.
PHASE/ENABLE and IN/IN interfaces can be selected which are compatible with industry-standard devices.Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.

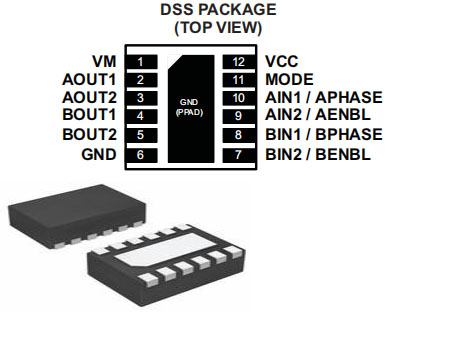

The DRV8835 is packaged in a tiny 12-pin WSON package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).

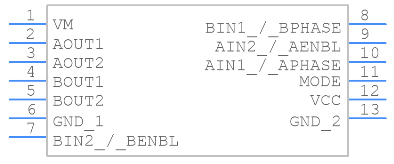

Symbol

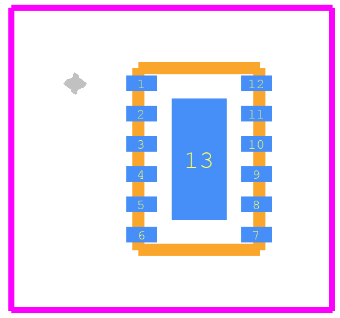

Footprint

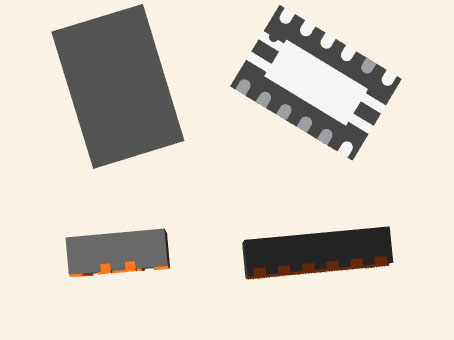

3D Model
• Capable of Driving Two DC Motors or One bipolar stepper motor
• Low MOSFET On-Resistance: HS + LS 305 mΩ
• 1.5-A Maximum Drive Current Per H-Bridge
• Bridges May Be Paralleled for 3-A Drive current
• 2 V to 7 V Logic supply voltage
• 2-V to 11-V Motor Operating Supply Voltage Range
• Separate Logic and Motor Power Supply Pins
• Flexible PWM or PHASE/ENABLE Interface(default – one pin for direction, another for speed) or IN/IN (outputs mostly mirror inputs)
• Low-Power Sleep Mode With 95-nA Maximum Supply Current
• Tiny 2-mm x 3-mm WSON Package
Texas Instruments DRV8835DSSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DRV8835DSSR.
Texas Instruments DRV8835DSSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DRV8835DSSR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-WFDFN Exposed Pad | |
| Number of Pins | 12Pins | |
| SwitchingFrequency | 250kHz | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 12Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Applications | Battery Powered |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 2V~7V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | DRV8835 | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Number of Outputs | 2Outputs | |
| Output Voltage | 11V | |
| Supply Voltage-Max (Vsup) | 7V | |
| Power Supplies | 35V | |
| Supply Voltage-Min (Vsup) | 2V | |
| Interface | Parallel | |
| Analog IC - Other Type | BRUSH DC MOTOR CONTROLLER | |
| Operating Supply Current | 1.5A | |
| Output Configuration | Half Bridge (4) | |
| Logic Function | AND |
| Product Attribute | Attribute Value | |
|---|---|---|
| Collector Emitter Voltage (VCEO) | 11V | |
| Max Collector Current | 1.5A | |
| Voltage - Load | 0V~11V | |
| Drain to Source Resistance | 305mOhm | |
| Motor Type | Stepper | |
| Motor Type - AC, DC | Brushed DC | |
| Motor Type - Stepper | Bipolar | |
| Height | 800μm | |
| Length | 2mm | |
| Width | 3mm | |
| Thickness | 750μm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Battery-Powered:
– Cameras
– DSLR Lenses
– Consumer Products
– Toys
– Robotics
– Medical Devices
Texas Instruments Incorporated (TI) is an American technology company headquartered in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally.[6] It is one of the top 10 semiconductor companies worldwide based on sales volume.The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue.TI also produces TI digital light processing technology and education technology products including calculators, microcontrollers and multi-core processors. The company holds 45,000 patents worldwide as of 2016.
Download datasheets and manufacturer documentation for Texas Instruments DRV8835DSSR.
Download datasheets and manufacturer documentation for DRV8835DSSR
