IC ECONOSCILLATOR SS 8-USOP The DS1090 is a low-cost, dithered oscillator intended to be used as an external clock for switched-mode power supplies and other low-frequency applications.
171
Jan 21, 2022
Max Job
What is CLOCK GENERATOR? What does CLOCK GENERATOR mean? CLOCK GENERATOR meaning & explanation
The DS1090 is a low-cost, dithered oscillator intended to be used as an external clock for switched-mode power supplies and other low-frequency applications. The device consists of a resistor -programmed master oscillator, factory-programmed clock prescaler, and a pin-programmed dither circuit. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
DS1090U-32 T
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.47184 | $3.47 |
| 10+ | $3.27532 | $32.75 |
| 100+ | $3.08992 | $308.99 |
| 500+ | $2.91502 | $1457.51 |
| 1000+ | $2.75002 | $2750.02 |

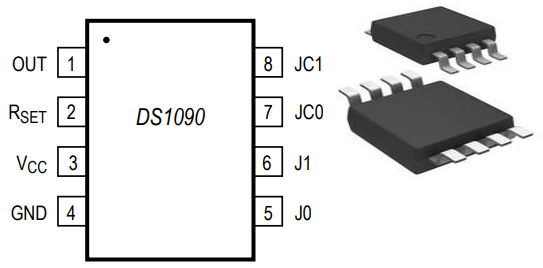

The following figure is the diagram of DS1090 pinout.
The following is the Pin Description DS1090.
| Pin | Name | Function |
| 1 | OUT | Oscillator Output |
| 2 | RSET | Frequency Control Resistor Input |
| 3 | VCC | Positive-Supply Terminal |
| 4 | GND | Ground |
| 5 | J0 | Dither Amplitude (Percentage) Inputs |
| 6 | J1 | |
| 7 | JC0 | Dither Rate Divisor Inputs |
| 8 | JC1 |
The followings are DS1090 Symbol, Footprint, and 3D Model.

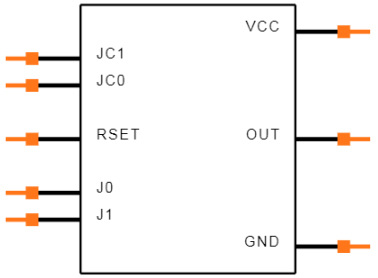

Symbol

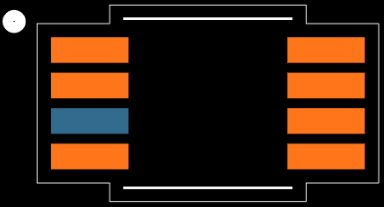

Footprint

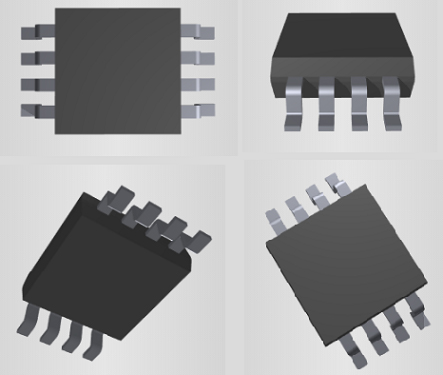

3D Model
The DS1090 is a low-cost, dithered oscillator intended to be used as an external clock for switched-mode power supplies and other low-frequency applications. The dithering or sweeping function reduces peak-radiated emissions from the power supply at its fundamental frequency, as well as harmonic frequencies. The device consists of a resistor-programmed master oscillator, factory-programmed clock prescaler, and a pin-programmed dither circuit. These features allow the DS1090 to be used in applications where a spread-spectrum clock is desired to reduce radiated emissions. A combination of factory-set prescalers and external resistor allows for output frequencies ranging from 125kHz to 8MHz. Both dither frequency and dither percentage are set using control pins.
The DS1090 is a center-dithered, spread-spectrum silicon oscillator for use as an external clock in reduced-EMI applications. With a combination of factory-programmed prescalers and a user-selected external resistor, output frequencies from 125kHz to 8MHz can be achieved. The output center frequency can be dithered by selecting the desired dither rate and amplitude with discrete inputs J0, J1, JC0, and JC1. The DS1090 contains four basic circuit blocks: master oscillator, factory-programmed prescaler, dither generator, and the voltage-bias circuit that provides the feedback path to the master oscillator for frequency control and dithering functions.
This article will introduce DS1090 systematically from its features, pinout to its specifications, applications, also including DS1090 datasheet and so much more.
● Low-Cost, Spread-Spectrum EconOscillator™
● Simple User Programming
● Output Frequency Programmable from 125kHz to 8MHz
● Dither Percentage Programmable from 0% to 8%
● Dither Rate Programmable (fMOSC/512, 1024, 2048, or 4096)
● 3.0V to 5.5V Single-Supply Operation
● CMOS/TTL-Compatible Output
● Operating Temperature Range: -40°C to +85°C
Maxim Integrated DS1090U-32+T technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS1090U-32+T.
Maxim Integrated DS1090U-32 T technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS1090U-32 T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | |
| Number of Pins | 8Pins | |
| Frequency(Max) | 250kHz | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| Series | EconOscillator™ | |
| Published | 2012 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | Clock Generator | |
| Voltage - Supply | 3V~5.5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 0.65mm | |
| Base Part Number | DS1090 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output | CMOS, TTL | |
| Number of Circuits | 1Circuit | |
| Input | Clock | |
| Ratio - Input:Output | 1:1 | |
| Primary Clock/Crystal Frequency-Nom | 8MHz | |
| PLL | No | |
| Differential - Input:Output | No/No | |
| Divider/Multiplier | Yes/No | |
| Length | 3mm | |
| Width | 3mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

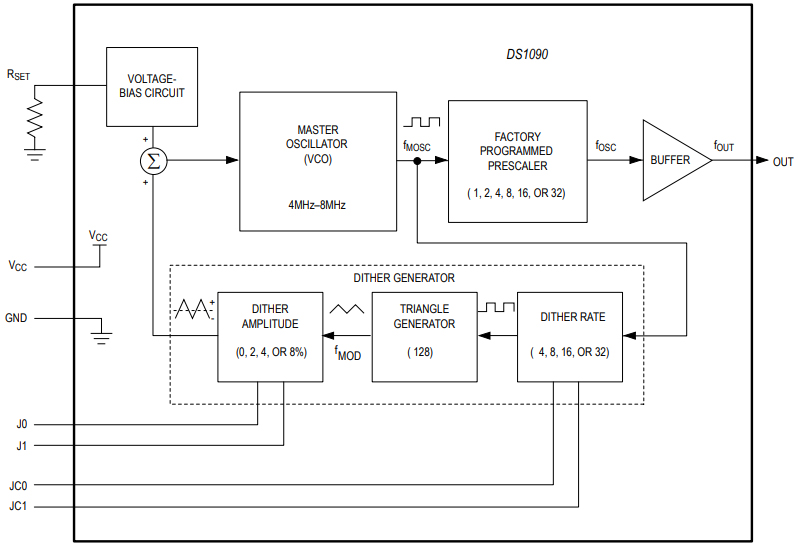

The following is the Block Diagram of DS1090.
Block Diagram

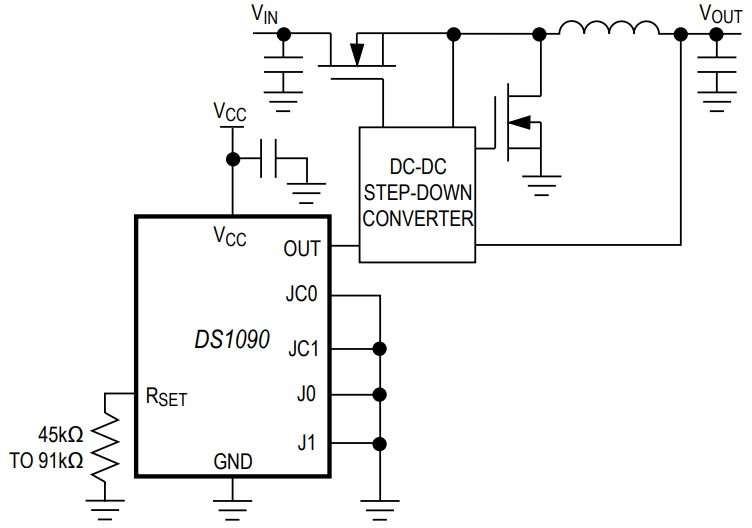

The following is the Typical Operating Circuit of DS1090.
Typical Operating Circuit
| Model number | Manufacturer | Description |
| ICS7210MI-01LF | Integrated Device Technology Inc | Clock Generator, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOIC-8 |
| 7210MI-02LF | Integrated Device Technology Inc | Clock Generator, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOIC-8 |
| DS1090U-4T+ | Maxim Integrated Products | Clock Generator, CMOS, PDSO8, LEAD FREE, USOP-8 |
| ICS7152M-01 | Integrated Device Technology Inc | Clock Generator, 67MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8 |
| ICS7152M-01LFT | Integrated Device Technology Inc | Clock Generator, 67MHz, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOIC-8 |
| DS1090U-1+T | Maxim Integrated Products | Clock Generator, 8MHz, CMOS, PDSO8, USOP-8 |
| DS1090U-4 | Maxim Integrated Products | Clock Generator, 2MHz, CMOS, PDSO8, MICRO, SOP-8 |
| DS1090U-2T+ | Maxim Integrated Products | Clock Generator, CMOS, PDSO8, LEAD FREE, USOP-8 |
| ICS7152MI-01 | Integrated Device Technology Inc | Clock Generator, 67MHz, CMOS, PDSO8, 0.150 INCH, SOIC-8 |
| ICS7152MI-01LFT | Integrated Device Technology Inc | Clock Generator, 67MHz, CMOS, PDSO8, 0.150 INCH, ROHS COMPLIANT, SOIC-8 |
● Switched-Mode Power Supplies
● Servers
● Printers
● Embedded Microcontrollers
● Industrial Controls
The market is evolving. The rules are changing. To keep your time to market short, you need integration at every level—from silicon to the supply chain. Count on Maxim Integrated to help you overcome design and architectural challenges, with integrated solutions for the industrial, medical, consumer, automotive, energy, computing, and communications realms. Maxim Integrated is also your source for power, interface, and even digital products that work in the analog world. And they're glad to support you with reference designs, tools, technical documents, packaging, and more. We invite you to explore their latest analog integration offerings.
Download datasheets and manufacturer documentation for Maxim Integrated DS1090U-32+T.
Download datasheets and manufacturer documentation for DS1090U-32 T
