DS1804 NV Trimmer Potentiometer: Pinout, Equivalent and Datasheet

Data Acquisition - Digital Potentiometers 8-SOIC (0.154, 3.90mm Width) ±20% 750 ppm/°C 50000Ohm 5V -40°C~85°C 50kOhm DS1804 IC, DIGITAL POT, 50KOHM, 100, SGL 8-SOIC - More Details

1150

Nov 13, 2021

Ursula Burns

How to use a trimmer potentiometer trimpot variable resistor or voltage divider on a breadboard



Data Acquisition - Digital Potentiometers 8-SOIC (0.154, 3.90mm Width) ±20% 750 ppm/°C 50000Ohm 5V -40°C~85°C 50kOhm DS1804 IC, DIGITAL POT, 50KOHM, 100, SGL 8-SOIC - More Details

The DS1804 NV trimmer potentiometer is a nonvolatile digital potentiometer that has 100 positions. The device provides an ideal method for low-cost trimming applications using a CPU or manual control input with minimal external circuitry. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

DS1804Z-050

2500In Stock
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

DS1804 Pinout

DS1804 CAD Model

PCB Symbol

PCB Footprint

3D Model

DS1804 Overview

The DS1804 NV trimmer potentiometer is a nonvolatile digital potentiometer that has 100 positions. The device provides an ideal method for low-cost trimming applications using a CPU or manual control input with minimal external circuitry. Wiper position of the DS1804 can be stored in EEPROM memory on demand. The device’s wiper position is manipulated by a three-terminal port that provides an increment/decrement counter controlled interface. The DS1804 is available in three resistor grades, which include a 10kΩ, 50kΩ, and 100kΩ. The device is provided in an industrial temperature grade. Additionally, the DS1804 will operate from 3V or 5V supplies and is ideal for portable application requirements. Three packaging options are available and include the 8-pin (300 mils) DIP, 8-pin (150 mils) SO, and 8-pin (118 mils) μSOP.

The DS1804 is a single nonvolatile potentiometer. The device has a total of 100 tap-points including the L- and H- terminals. A total of 99 resistive segments exist between the L- and H- terminals. These tappoints are accessible to the W-terminal, whose position is controlled via a three-terminal control port. The DS1804 can be easily used as an OTP device. The user of the DS1804 can trim the desired value of the wiper position and set this position for storage as described above.

This article provides you with a basic overview of the DS1804 NV Trimmer Potentiometer, including its pin descriptions, features and specifications, etc., to help you quickly understand what DS1804 is.

DS1804 Features

● Single 100-Position Taper Potentiometer

● Nonvolatile (NV) On-Demand Wiper Storage

● Operates from 3V or 5V Supplies

● Up/Down, Increment-Controlled Interface

● Available in 8-Pin (300 mils) DIP, 8-Pin (150 mils) SO, and 8-Pin (118 mils) µSOP

● -40°C to +85°C Operating Temperature Range

● Standard Resistance Values:

   ◆ DS1804-010: 10kΩ

   ◆ DS1804-050: 50kΩ

   ◆ DS1804-100: 100kΩ

Specifications

Maxim Integrated DS1804Z-050+ technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS1804Z-050+.

DS1804Z-050 Tech Specifications

Maxim Integrated DS1804Z-050 technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS1804Z-050 .

Product Attribute Attribute Value
Factory Lead Time6 Weeks
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Surface MountYES
Number of Pins8Pins
Memory TypesNon-Volatile
Operating Temperature-40°C~85°C
PackagingTube
Published2004
Tolerance±20%
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Product Attribute Attribute Value
Temperature Coefficient750 ppm/°C
Resistance50kOhm
Number of Positions100Positions
Terminal FinishMatte Tin (Sn)
Voltage - Supply2.7V~5.5V
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage5V
Base Part NumberDS1804
Pin Count8
Power Supplies3/5V
ConfigurationPotentiometer
Number of Channels64Channels
InterfaceUp/Down (U/D, INC, CS)
Product Attribute Attribute Value
Number of Circuits1Circuit
Nominal Supply Current400μA
Bandwidth0.2 kHz
TaperLinear
Number of Taps100Taps
Total Resistance50000Ohm
Resistance - Wiper (Ω) (Typ)400
Resistor Terminal Voltage-Max5.7V
Resistor Terminal Voltage-Min-0.2V
Height1.5mm
Length5mm
Width4mm
REACH SVHCUnknown
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

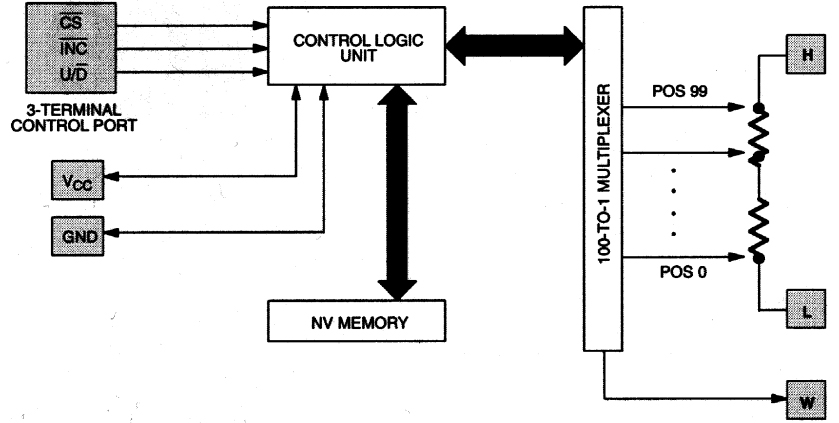

DS1804 Functional Block Diagram

Block Diagram



Three-Terminal Interface Timing Diagram

DS1804 Equivalent

      Model number                       Manufacturer                                          Description
X9317US8I-2.7T1 Xicor Inc Digital Potentiometer, 1 Func, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, PLASTIC, SOIC-8
X9317US8Z Renesas Electronics Corporation Digitally Controlled Potentiometer (XDCP™)
CAT5113SI-50 Catalyst Semiconductor Digital Potentiometer, 1 Func, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, SOIC-8
CAT5113VI-50 Catalyst Semiconductor Digital Potentiometer, 1 Func, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, LEAD FREE AND HALOGEN FREE, SOIC-8
X9317US8-2.7 Rochester Electronics LLC 50K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 100 POSITIONS, PDSO8, PLASTIC, SOIC-8
X9317US8-T2 Intersil Corporation IC 50K DIGITAL POTENTIOMETER, INCREMENT/DECREMENT CONTROL INTERFACE, 100 POSITIONS, PDSO8, PLASTIC, SOIC-8, Digital Potentiometer
X9317US8I-2.7T2 Xicor Inc Digital Potentiometer, 1 Func, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, PLASTIC, SOIC-8
X9317US8IZ Intersil Corporation Digitally Controlled Potentiometer (XDCP™); MSOP8, SOIC8, TSSOP8; Temp Range: See Datasheet

DS1804 Manufacturer

The market is evolving. The rules are changing. To keep your time to market short, you need integration at every level—from silicon to the supply chain. Count on Maxim Integrated to help you overcome design and architectural challenges, with integrated solutions for the industrial, medical, consumer, automotive, energy, computing, and communications realms. Maxim Integrated is also your source for power, interface, and even digital products that work in the analog world. And they’re glad to support you with reference designs, tools, technical documents, packaging, and more. We invite you to explore their latest analog integration offerings.

Datasheet PDF

Download datasheets and manufacturer documentation for Maxim Integrated DS1804Z-050+.

DS1804Z-050 Documents

Download datasheets and manufacturer documentation for DS1804Z-050

Frequently Asked Questions

What is the power-on process of DS1804? Please describe in detail.
On power-up, the DS1804 will load the value of EEPROM memory into the wiper position register (or 1 of 100 decoder). The value of this register can then be set to another wiper position if desired, by using the three-terminal control port. On power-up, wiper position will be loaded within a maximum time period of 500µs once the power-supply is stable. Additionally, the three-terminal interface port will be active after 50ms.
Regarding DS1804, will wiper position register data be lost during a power outage?
On power-down, the wiper position register data will be lost. On the next device power-up, the value of EEPROM memory will be loaded into the wiper position register.
What is the wear state of DS1804? Will the DS1804 still function after wear and tear?
The DS1804 is specified to accept 50,000 writes to EEPROM over 0°C to 70ºC before a wear-out condition. After wear-out the DS1804 will still function and wiper position can be changed during powered conditions using the three-terminal control port. However, on power-up the wiper-position will be indeterminate.
FAQ
What is the power-on process of DS1804? Please describe in detail.
On power-up, the DS1804 will load the value of EEPROM memory into the wiper position register (or 1 of 100 decoder). The value of this register can then be set to another wiper position if desired, by using the three-terminal control port. On power-up, wiper position will be loaded within a maximum time period of 500µs once the power-supply is stable. Additionally, the three-terminal interface port will be active after 50ms.
Regarding DS1804, will wiper position register data be lost during a power outage?
On power-down, the wiper position register data will be lost. On the next device power-up, the value of EEPROM memory will be loaded into the wiper position register.
What is the wear state of DS1804? Will the DS1804 still function after wear and tear?
The DS1804 is specified to accept 50,000 writes to EEPROM over 0°C to 70ºC before a wear-out condition. After wear-out the DS1804 will still function and wiper position can be changed during powered conditions using the three-terminal control port. However, on power-up the wiper-position will be indeterminate.
