MAXIM INTEGRATED PRODUCTS DS18S20 DIGITAL THERMOMETER, 18S20, 3TO-92
DS18S20 is a high-precision 1-wire digital thermometer. This post enforces pinout, datasheet, applications, features, comparison, and other details about the DS18S20 temperature sensor. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
DS18S20
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.46974 | $2.47 |
| 10+ | $2.32994 | $23.3 |
| 100+ | $2.19806 | $219.81 |
| 500+ | $2.07364 | $1036.82 |
| 1000+ | $1.95627 | $1956.27 |
The DS18S20 digital thermometer measures temperatures in 9-bit Celsius and offers a nonvolatile alarm function with user-programmable upper and lower trigger points. Furthermore, the DS18S20 may get power directly from the data line ("parasitic power"), removing the need for an external power supply.
DS18S20 Symbol
DS18S20 Footprint
DS18S20 3D Model
Maxim Integrated DS18S20 technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS18S20 .
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | PCB, Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Test Conditions | -10°C ~ 85°C (-55°C ~ 125°C) | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Bulk | |
| Published | 2003 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| Termination | SMD/SMT | |
| Connector Type | Solder | |
| Voltage - Supply | 3V~5.5V | |
| Base Part Number | DS18S20 | |
| Output Type | 1-Wire® | |
| Interface | Serial | |
| Operating Supply Current | 1mA | |
| Nominal Supply Current | 1mA | |
| Output Current | 4mA | |
| Number of Bits | 9Bits | |
| Resolution | 8 b | |
| Sensor Type | Digital, Local | |
| Max Supply Voltage (DC) | 5.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Supply Voltage (DC) | 3V | |
| Housing | PLASTIC | |
| Accuracy - Highest (Lowest) | ±0.5°C (±2°C) | |
| Sensing Temperature - Local | -55°C~125°C | |
| Accuracy-Max | 0.5 Cel | |
| Features | Programmable Limit, Standby Mode | |
| Height | 4.95mm | |
| Length | 4.95mm | |
| Width | 3.94mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Unique 1-Wire® Interface Requires Only One Port Pin for Communication
Maximize System Accuracy in Broad Range of Thermal Management Applications
• Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
• ±0.5°C Accuracy from -10°C to +85°C
• 9-Bit Resolution
• No External Components Required
Parasite Power Mode Requires Only 2 Pins for Operation (DQ and GND)
Simplifies Distributed Temperature-Sensing Applications with Multidrop Capability
• Each Device Has a Unique 64-Bit Serial Code Stored in On-Board ROM
Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices with Temperatures outside Programmed Limits
Available in 8-Pin SO (150 mils) and 3-Pin TO-92 Packages
DS18S20 Block Diagram
Thermostatic Controls
Industrial temperature controller
Consumer Products
Thermometers
Thermally Sensitive Systems
Liquid temperature measurement
Buildings temperature controller
Digital thermometers
DS18S20 is a high-precision 1-wire digital thermometer. It's commonly used to detect the temperature in harsh settings like chemical solutions, mines, and soil, among other things. The sensor's construction is tough, and it may also be ordered with a waterproof variant, making installation simple. It has a good accuracy of 5°C and can measure a wide range of temperatures from -55°C to +125°C. Each sensor has its address and only uses one MCU pin to transport data, making it an excellent choice for sensing temperature at various locations without sacrificing too many of your microcontroller's digital pins.

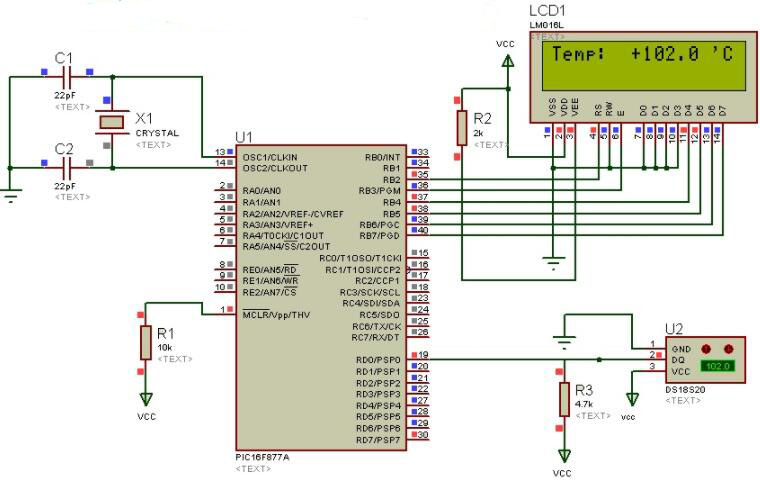

The circuit diagram for the DS18S20 interface is shown below. In parasite power mode, it isn't used. As a result, 5-volt electricity is supplied externally. The DS18S20 is connected to port D's pin zero. PORT D pin zero is used to communicate with a digital thermometer over a single wire. Temperature is displayed on a 162 LCD. Temperature is displayed using an LCD connected to a pic microcontroller.
DS18S20 interfacing with PIC16F877A
To shorten the time to market and keep up with the development of the market, you need a complete integration from the chip to the supply chain. Maxim Integrated can provide you with integrated solutions in the industrial, medical, consumer, automotive, energy, computing, and communications fields. With our superior solutions, you can easily meet design and architectural challenges. Maxim Integrated products are widely used in power supplies, interfaces, and even digital products in the analog world. It is our honor to be able to meet the needs of reference designs, tools, technical documents, packaging, etc. Our latest simulation integration products look forward to your exploration.
Download datasheets and manufacturer documentation for DS18S20
