IC RECEIVER 0/4 16SOIC The DS26LV32ATM is a high-speed quad differential CMOS receiver that complies with both TIA/EIA-422-B and ITU-T V.
107
Mar 8, 2022
Tyrone Evans
Reliable DS26LV32ATM Supplier and DS26LV32ATMX/NOPB Distributor in China - Rantle East Electronic
The DS26LV32ATM is a high-speed quad differential CMOS receiver that complies with both TIA/EIA-422-B and ITU-T V.11 standards. The article will introduce the basic details of the device.
DS26LV32ATM
The DS26LV32ATM is a high-speed quad differential CMOS receiver that complies with both TIA/EIA-422-B and ITU-T V.11 standards. The CMOS DS26LV32ATM has a low static ICC of 9 mA, making it excellent for battery-powered and power-constrained applications. The TRI-STATE enables EN and EN* enable the device to be active High or active Low. All four receivers share the enables.
Symbol

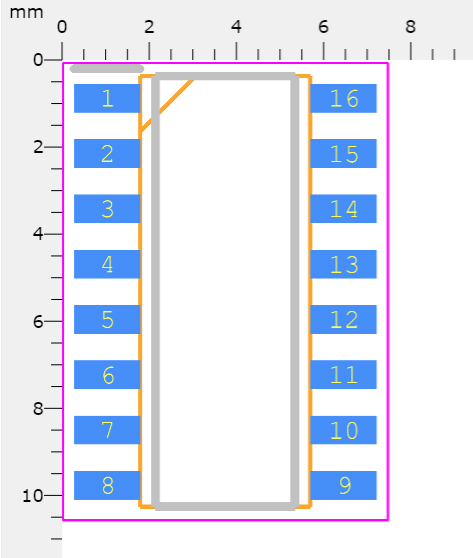

Footprint

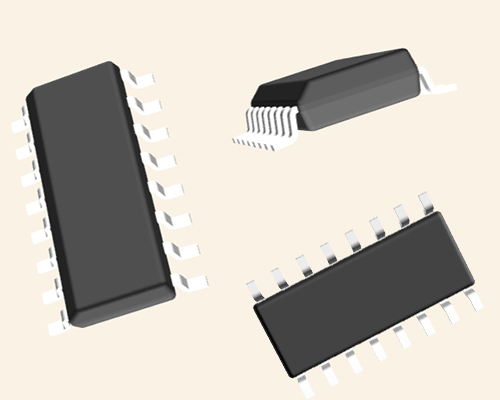

3D Model
• Low Power CMOS Design (30 mW typical)
• Interoperable with Existing 5V RS-422 Networks
• Industrial and Military Temperature Range
• Conforms to TIA/EIA-422-B (RS-422) and ITU-TV.11 Recommendation
• 3.3V Operation
• ±7V Common Mode Range @ VID = 3V
• ±10V Common Mode Range @ VID = 0.2V
• Receiver OPEN Input Failsafe Feature
• Guaranteed AC Parameter:
– Maximum Receiver Skew: 4 ns
– Maximum Transition Time: 10 ns
• Pin Compatible with DS26C32AT
• 32 MHz Toggle Frequency
• > 6.5k ESD Tolerance (HBM)
| Min | Typ | Max | Units | |
| Supply Voltage (Vcc) | 3.0 | 3.3 | 3.6 | V |
| Operating Free Air Temperature Range (Ta) | ||||
| DS26LV32AT | -40 | +25 | +85 | °C |
| DS26LV32AW | -55 | +25 | +125 | °C |
| Part Number | Description | Manufacturer |
| DS26LV32ATMXDRIVERS AND INTERFACES | 3V Enhanced CMOS Quad Differential Line Receiver 16-SOIC -40 to 85 | Texas Instruments |
| AM26LV32IDDRIVERS AND INTERFACES | Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SOIC -40 to 85 | Texas Instruments |
| AM26LV32CDDRIVERS AND INTERFACES | Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SOIC 0 to 70 | Texas Instruments |
| AM26LV32IDRG4DRIVERS AND INTERFACES | QUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | Texas Instruments |
| DS34LV86TMX/NOPBDRIVERS AND INTERFACES | 3V Enhanced CMOS Quad Differential Line Receiver 16-SOIC -40 to 85 | Texas Instruments |
| AM26LV32IDRE4DRIVERS AND INTERFACES | QUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | Texas Instruments |
| AM26LV32INSE4DRIVERS AND INTERFACES | QUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, SOP-16 | Texas Instruments |
| AM26LV32INSG4DRIVERS AND INTERFACES | Low-Voltage High-Speed Quadruple Differential Line Receiver 16-SO -40 to 85 | Texas Instruments |
| DS26LV32ATMDRIVERS AND INTERFACES | IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SOIC-16, Line Driver or Receiver | National Semiconductor Corporation |
| AM26LV32INSRE4DRIVERS AND INTERFACES | QUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, SOP-16 | Texas Instruments |
Texas Instruments DS26LV32ATM technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DS26LV32ATM.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 16Pins | |
| Weight | 547.485991mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Type | Receiver | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Voltage - Supply | 3V~3.6V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 235 | |
| Number of Functions | 4Functions | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 1.27mm | |
| Current Rating | 25A | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | DS26LV32 | |
| Pin Count | 16 | |
| Operating Supply Voltage | 3.3V | |
| Operating Supply Current | 15mA | |
| Nominal Supply Current | 15mA | |
| Max Supply Current | 15mA | |
| Supply Type | Single |
| Product Attribute | Attribute Value | |
|---|---|---|
| Differential Output | NO | |
| Protocol | RS422, RS485 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Number of Drivers/Receivers | 0/4Drivers/Receiver | |
| Receiver Hysteresis | 35mV | |
| Number of Drivers | 0Driver | |
| ESD Protection | Yes | |
| Receive Delay-Max | 35 ns | |
| Number of Receivers | 4Receivers | |
| Height | 1.45mm | |
| Length | 9.91mm | |
| Width | 3.91mm | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Download datasheets and manufacturer documentation for DS26LV32ATM
