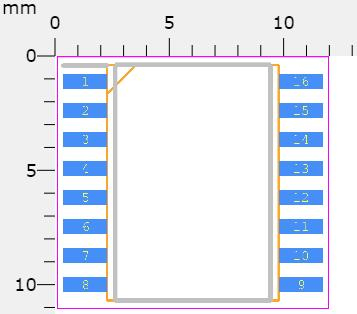

Footprint
3D Model
DS3231M Description
The DS3231M is a low-cost, extremely accurate, I2C real-time clock (RTC). The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. It is available in the same footprint as the popular DS3231 RTC.
DS3231M Features
●Highly Accurate RTC With Integrated MEMS Resonator Completely Manages All Timekeeping Functions
• Complete Clock Calendar Functionality Including Seconds, Minutes, Hours, Day, Date, Month, and Year, with Leap-Year Compensation Up to the Year 2100
• Timekeeping Accuracy ±5ppm (±0.432 Second/Day) from -45°C to +85°C
• Footprint and Functionally Compatible to DS3231
• Two Time-of-Day Alarms
• 1Hz and 32.768kHz Outputs
• Reset Output and Pushbutton Input with Debounce
• Digital Temp Sensor with ±3°C Accuracy
• +2.3V to +5.5V Supply Voltage
● Simple Serial Interface Connects to Most Microcontrollers
• Fast (400kHz) I2C Interface
● Battery-Backup Input for Continuous Timekeeping
• Low Power Operation Extends Battery-Backup Run Time
● Operating Temperature Range: -40°C to +85°C
● 8-Pin or 16-Pin SO Packages
● Underwriters Laboratories® (UL) Recognized
DS3231M Block Diagram
The DS3231M is a serial real-time clock (RTC) driven by an internal, temperature-compensated, micro-electromechanical systems (MEMS) resonator. The Block Diagram shows the device's main elements given below.
Specifications
Maxim Integrated DS3231M+ technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS3231M+.
DS3231M Tech Specifications
DS3231M Tech Specifications
Maxim Integrated DS3231M technical specifications, attributes, parameters and parts with similar specifications to Maxim Integrated DS3231M .
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.295, 7.50mm Width) | |
| Number of Pins | 16Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Published | 2010 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Type | Clock/Calendar |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8542.39.00.01 | |
| Voltage - Supply | 2.3V~5.5V | |
| Terminal Position | DUAL | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 1.27mm | |
| Base Part Number | DS3231 | |
| Pin Count | 16 | |
| Operating Supply Voltage | 3.3V | |
| Interface | I2C, 2-Wire Serial | |
| Clock Frequency | 0.4MHz | |
| Logic Function | Clock | |
| Number of Timers | 1Timer | |
| Time Format | HH:MM:SS (12/24 hr) | |
| Date Format | YY-MM-DD-dd |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Timekeeping (Max) | 130μA~200μA @ 3.63V~5.5V | |
| Time-Min | SECONDS | |
| Interrupt Capability | Y | |
| Voltage - Supply, Battery | 2.3V~5.5V | |
| Volatile | NO | |
| Information Access Method | I2C | |
| Features | Alarm, Leap Year, Square Wave Output | |
| Length | 10.3mm | |
| Height Seated (Max) | 2.65mm | |
| Width | 7.5mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
DS3231M Application
-
Power Meters
-
Industrial Applications
DS3231M Typical Operating Circuit
Datasheet PDF
Download datasheets and manufacturer documentation for Maxim Integrated DS3231M+.
DS3231M Documents
DS3231M Documents
Download datasheets and manufacturer documentation for DS3231M
Environmental Information
Material Declaration DS3231M
Application Notes
