DT06-12SA is a rectangular connector. This article is going to introduce technical Data, features, and more details about DT06-12SA.
HomeCommunitySubjectDT06-12SA DC Connector 12 PIN FEMALE CONNECTOR[FAQ]：Datasheet, Features, and Equivalents
DT06-12SA DC Connector 12 PIN FEMALE CONNECTOR[FAQ]：Datasheet, Features, and Equivalents
CONN PLUG HSG 12POS DT06-12SA is a rectangular connector. This article is going to introduce technical Data, features, and more details about DT06-12SA.
111
Feb 5, 2022
Colbert Moses
DT06-12SA
Inquiry
Min.: 1 Mult.: 1
Quick Links
Overview of DT06-12SA
-
DEUTSCH DT connections are known for their ruggedness and dependability in the field. Optional flange mounting, multi-pin layouts, and design flexibility are all strengths of the DT design.
-
Thermoplastic housings have a wide operating temperature range, and silicone back wire and interface seals protect the connectors from moisture and temperature extremes.
-
DEUTSCH DT wedge locks ensure that each connector's contacts are properly aligned. All DEUTSCH DT housings require wedge locks as standard equipment.
-
DEUTSCH DT headers are printed circuit board connections that come in two, three, four, six, eight, and twelve cavity configurations. Straight, right angle, flanged, and flangeless versions are all possible.
-
DEUTSCH is one of TE's family brands, and it widens the company's product line to include military specifications such as the MIL-DTL-38999 DEUTSCH connector series.
DT06-12SA Features
-
2, 3, 4, 6, 8, and 12 cavity arrangements
-
Rectangular, thermoplastic housing
-
Accepts contact size 16 (13 amps)
-
14-20 AWG
-
Wedgelocks assure contact alignment and retention
-
Grommet: Silicone rubber
-
Insert Retainer: Thermoplastic
-
Receptacle Interfacial Seal: Silicone rubber
-
Shell: Thermoplastic
-
Wedgelocks: Thermoplastic

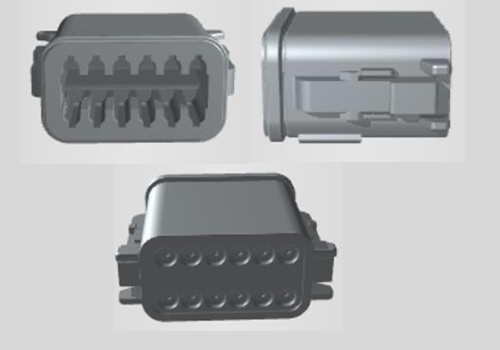

DT06-12SA 3D Model
DT06-12SA 3D Model

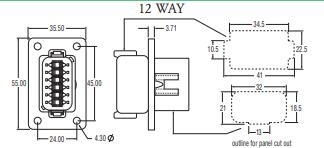

DT06-12SA Outline information
DT06-12SA Outline information
Specifications
TE Connectivity Deutsch Connectors DT06-12SA technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity Deutsch Connectors DT06-12SA.
DT06-12SA Tech Specifications
DT06-12SA Tech Specifications
TE Connectivity Deutsch Connectors DT06-12SA technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity Deutsch Connectors DT06-12SA.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Free Hanging (In-Line) | |
| Shell Material | GLASS FILLED POLYAMIDE | |
| Packaging | Bulk | |
| Series | DT | |
| Published | 2009 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Connector Type | Plug | |
| Number of Positions | 12Positions | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -55°C | |
| Color | Gray |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Rows | 2Rows | |
| Gender | Male | |
| Fastening Type | Latch Lock | |
| Filter Feature | NO | |
| Contact Type | Female Socket | |
| Mixed Contacts | NO | |
| Option | GENERAL PURPOSE | |
| Pitch | 4.445mm | |
| Total Number of Contacts | 12Contacts | |
| Reference Standard | UL | |
| Body Breadth | 0.716 inch | |
| Empty Shell | YES | |
| Operating Supply Voltage | 250V | |
| Rated Current (Signal) | 13A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Row Spacing | 9.1186 mm | |
| Note | Contacts Not Included | |
| Contact Termination | Crimp | |
| Hybrid Connector | No | |
| Polarized | Yes | |
| Features | IP68, IP6K9K | |
| Height | 40.5638mm | |
| Length | 30.94mm | |
| Width | 18.19mm | |
| REACH SVHC | Unknown | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
DT06-12SA Technical Data
| Technical Data | |
| Current Rating | 13 A |
| Gender | Male |
| Hybrid Connector | No |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Supply Voltage | 250 V |
| Packaging | Box |
| Polarized | Yes |
| Serviceable | Yes |
| Voltage Rating | 250 V |
| Height | 20.3 mm |
| Length | 30.94 mm |
| Pitch | 4.445 mm |
| Row Spacing | 9.1186 mm |
| Width | 18.19 mm |
DT06-12SA Package information
DT06-12SA Package information
DT06-12SA Manufacturer
TWO LEADERS IN CONNECTIVITY, NOW CONNECTED. DEUTSCH is now TE Connectivity. Together, they offer customers an unmatched range of connectivity products and solutions for virtually all applications, including those in the harshest environments.
Datasheet PDF
Download datasheets and manufacturer documentation for TE Connectivity Deutsch Connectors DT06-12SA.
DT06-12SA Documents
DT06-12SA Documents
Download datasheets and manufacturer documentation for DT06-12SA
Datasheets
DT06-12Sx Drawing
Frequently Asked Questions
How many rows of DT06-12SA?
2 rows.
What’s the operating temperature of DT06-12SA?
-55°C~125°C TA.
What’s the packaging way of DT06-12SA?
Bulk.
What’s the Contact Type of DT06-12SA?
Female Socket.
What’s the Operating Supply Voltage of DT06-12SA?
250V.
What’s the width and height of DT06-12SA?
The width is 18.19mm, and the height is 40.5638mm.
FAQ
How many rows of DT06-12SA?
2 rows.
What’s the operating temperature of DT06-12SA?
-55°C~125°C TA.
What’s the packaging way of DT06-12SA?
Bulk.
What’s the Contact Type of DT06-12SA?
Female Socket.
What’s the Operating Supply Voltage of DT06-12SA?
250V.
What’s the width and height of DT06-12SA?
The width is 18.19mm, and the height is 40.5638mm.
