How to connect Micro Controller Peripherals to AC Power, using EL817 Optocoupler with 440/230V AC.
IC INST AMP 1 CIRCUIT 8SOIC
The EL817 series of devices each consist of infrared emitting diodes, optically coupled to a phototransistor detector. This article mainly introduces package, pinout, datasheet and other detailed information about Renesas Electronics EL817.
EL8170FSZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.99477 | $2.99 |
| 10+ | $2.82526 | $28.25 |
| 100+ | $2.66534 | $266.53 |
| 500+ | $2.51447 | $1257.24 |
| 1000+ | $2.37214 | $2372.14 |
The EL817 series of devices each consist of infrared emitting diodes, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD options.
The EL817 is a micropower instrumentation amplifier optimized for single-supply operation over the +2.4V to +5.5V range. Inputs and outputs can operate rail-to-rail. The EL817 also delivers excellent DC and AC specifications while consuming only 65µA typical supply current. As with all instrumentation amplifiers, a pair of inputs provide very high common-mode rejection and are completely independent of a pair of feedback terminals.
The feedback terminals allow zero input to be translated to any output offset, including ground. A feedback divider controls the overall gain of the amplifier. The EL817 is compensated for a gain of 100 or more, also it has bipolar input devices for best offset and 1/f noise performance. The amplifiers can be operated from one lithium cell or two Ni-Cd batteries. The EL817 input range includes ground to slightly above positive rail. The output stage swings to the ground and positive supply (no pull-up or pull-down resistors are needed).
Pinout
| Pin Number | Pin Name | Equivalent Circuit | Description |
| 1 | DNC | Do Not Connect; Internal connection - Must be left floating. | |
| 2 | IN- | Circuit 1A | High impedance input terminals. The EL817 input circuit is shown in Circuit 1A. The EL817: to avoid offset drift, it is recommended that the terminals are not overdriven beyond 1V and the input current must never exceed 5mA. |
| 3 | IN+ | Circuit 1A | |
| 4 | V- | Circuit 3 | Negative supply terminal. |
| 5 | FB- | Circuit 1A | High impedance feedback terminals. The EL817 input circuit is shown in Circuit 1A. |
| 6 | VOUT | Circuit 2 | Output voltage. |
| 7 | V+ | Circuit 3 | Positive supply terminal. |
| 8 | FB+ | Circuit 1A | The EL817: to avoid offset drift, it is recommended that the terminals are not overdriven beyond 1V and the input current must never exceed 5mA. |

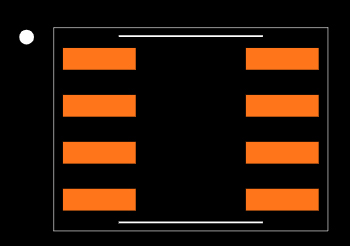

Footprint
3D Model
• 95µA Maximum Supply Current
• Maximum Offset Voltage
- 200µV (EL8170)
- 1000µV (EL8173)
• Maximum 3nA Input Bias Current
• 396kHz -3dB Bandwidth (G = 10)
• 192kHz -3dB Bandwidth (G = 100)
• Single Supply Operation
- Input Voltage Range is Rail-to-rail
- Output Swings Rail-to-rail
• Pb-Free (RoHS Compliant)
Renesas Electronics America Inc. EL8170FSZ technical specifications, attributes, parameters and parts with similar specifications to Renesas Electronics America Inc. EL8170FSZ.
Renesas Electronics America Inc. EL8170FSZ technical specifications, attributes, parameters and parts with similar specifications to Renesas Electronics America Inc. EL8170FSZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 33 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | EL8170 | |
| Pin Count | 8 | |
| JESD-30 Code | R-PDSO-G8 | |
| Output Type | Rail-to-Rail | |
| Number of Circuits | 1Circuit | |
| Current - Supply | 65μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Slew Rate | 0.55V/μs | |
| Amplifier Type | Instrumentation | |
| Current - Input Bias | 700pA | |
| Voltage - Supply, Single/Dual (±) | 2.4V~5.5V | |
| Bandwidth | 192 kHz | |
| Average Bias Current-Max (IIB) | 0.004μA | |
| Supply Voltage Limit-Max | 5.75V | |
| Voltage - Input Offset | 50μV | |
| Input Offset Current-Max (IIO) | 0.003μA | |
| Common-mode Reject Ratio-Min | 85 dB | |
| Length | 4.9mm | |
| RoHS Status | ROHS3 Compliant |
Voltage Measuring Circuit
• Battery- or Solar-Powered Systems
• Strain Gauges
• Current Monitors
• Thermocouple Amplifiers
Renesas Electronics, as a well-known microcontroller supplier and leader in analog and power SoC products, focuses on the development of competitive semiconductor solutions through embedded design innovation. These solutions are designed to optimize the billions of devices used to improve people's work and lifestyle.
Renesas is committed to providing a wealth of expertise and high-quality solutions for a variety of applications to shape an unlimited future, including automotive, industrial, home electronics (HE), office automation (OA), and information and communication technology (ICT).
Download datasheets and manufacturer documentation for EL8170FSZ
