EN2342QI DC-DC Converter, 4.5V to14V Step-down, 68-pin and Switching Regulators

The EN2342QI  is a DC-DC converter with a Power System on a Chip  (PowerSoC). A sophisticated 8x11x3mm QFN module, it includes MOSFET switches, small-signal control circuits, compensation, and an integrated inductor. It has a high-efficiency rating, as well as efficient line and load regulation across a wide temperature range and up to a 4A load range.

The EN2342QI  is designed to meet the exact voltage and fast transient requirements of high-performance products and operates over a wide input voltage range. The EN2342 QI  has external clock frequency synchronization; a power  OK output voltage monitor, programmable soft-start, and thermal and over current protection. High-quality, ultra-compact, non-isolated DC-DC conversion is provided by the device's superior circuit design, ultra-high switching frequency, and proprietary integrated inductor technology.

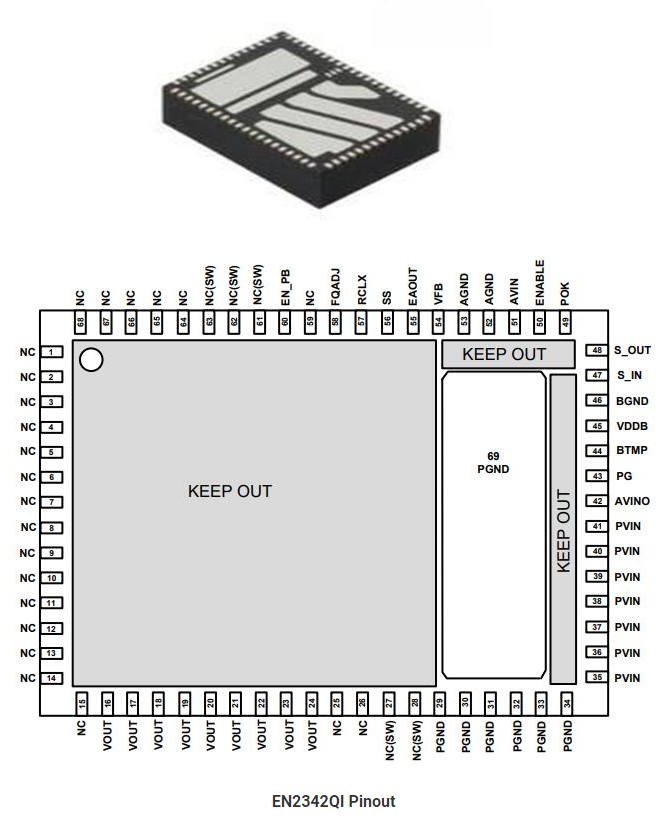

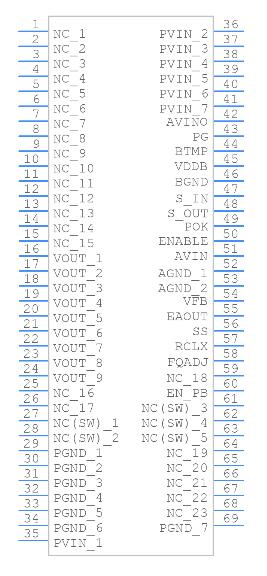

EN2342QI Symbol

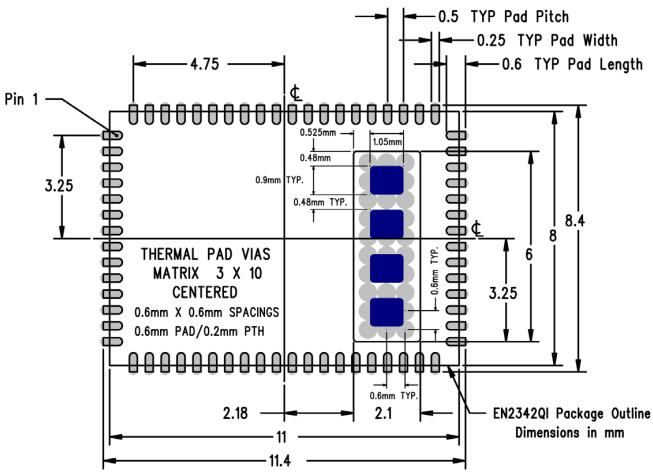

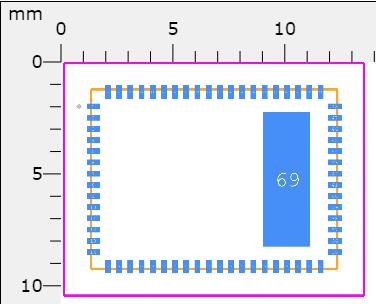

EN2342QI Footprint

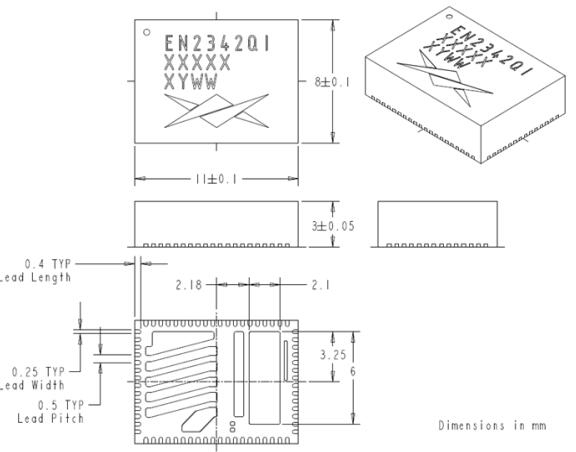

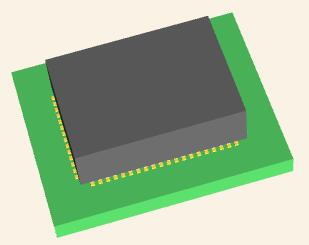

EN2342QI 3D Model

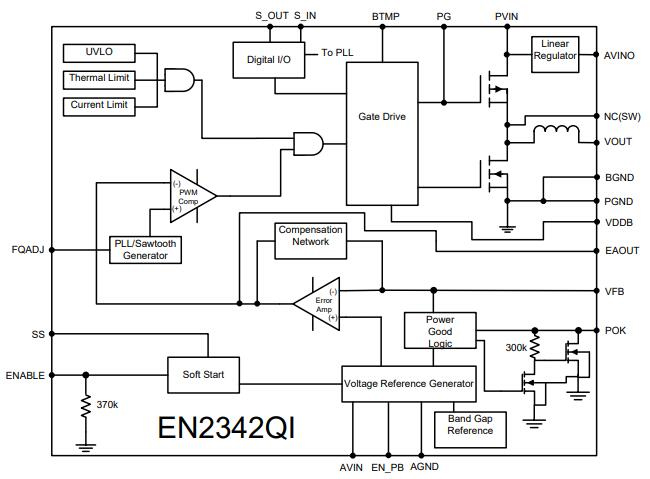

EN2342QI Functional Block Diagram

• Integrated Inductor, MOSFETs, Controller

• Wide Input Voltage Range: 4.5V – 14V

• Guaranteed 4A IOUT at 85°C with No Airflow

• Frequency Synchronization (External Clock  )

• 1% Initial VOUT Accuracy

• High Efficiency  (Up to 95%)

• Output Enable Pin and Power OK signal

• Programmable Soft-Start Time

• Pre-Bias Protection

• Pin Compatible with the EN2340  /60QI

• Under Voltage Lockout Protection  (UVLO)

• Thermal Soft-Shutdown Protection

• Over Current and Short Circuit Protection

• RoHS Compliant, MSL Level 3, 260C Reflow

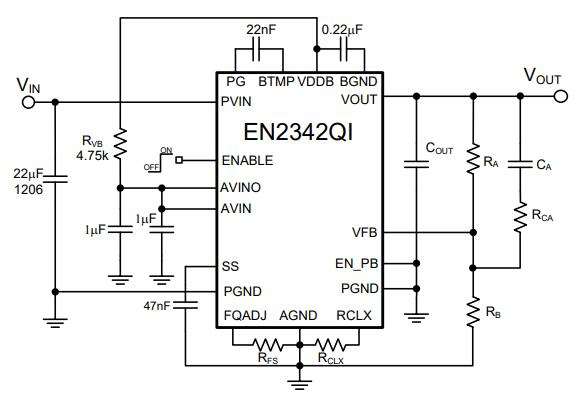

EN2342QI Applications Circuit
