EP4CE6E22C8N Cyclone IV, 1.2V 144EQFP and EP4CE6E22C8N Development Board

The EP4CE6E22C8N FPGA is a semiconductor device made up of a matrix of Configurable Logic Blocks (CLBs) linked by programmable interconnects. SRAM  is programmed by the user to determine these links. A CLB might be basic (AND, OR gates, etc.) or complex (many gates, etc). (a block of RAM  ). Even after the device has been soldered into a PCB, the FPGA permits changes to be made to the design.

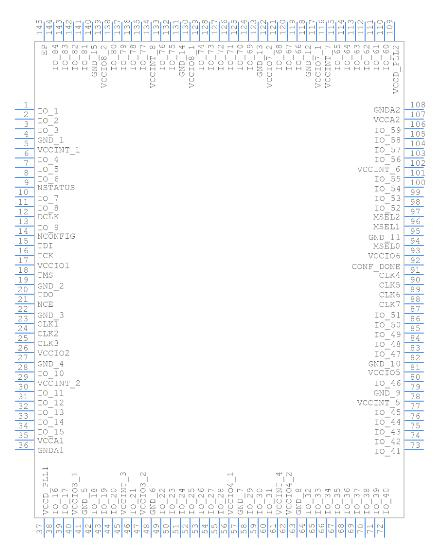

EP4CE6E22C8N Symbol

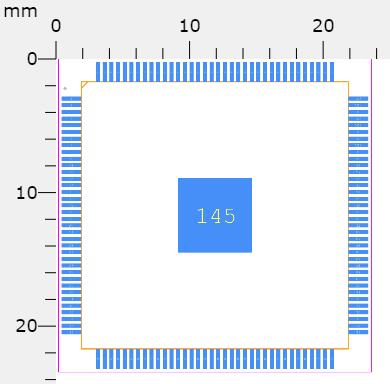

EP4CE6E22C8N Footprint

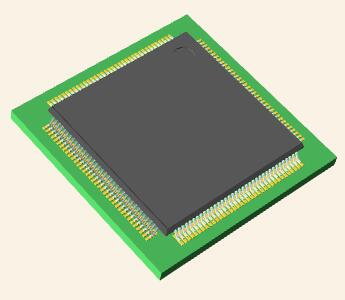

EP4CE6E22C8N 3D Model

DC Characteristics

This section lists the I/O leakage current, pin capacitance, on-chip termination (OCT) tolerance, and bus hold specifications for Cyclone IV devices.

Supply Current

The device supply current requirement is the minimum current drawn from the power supply pins that can be used as a reference for power size planning. Use the

Excel-based early power estimator (EPE) to get the supply current estimates for your design because these currents vary greatly with the resources used.

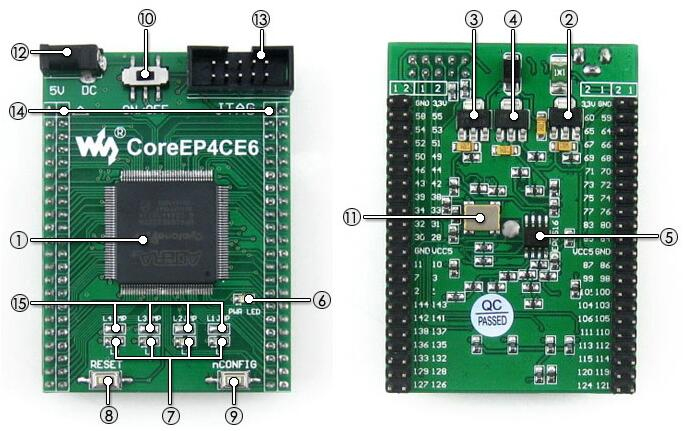

EP4CE6E22C8N Development Board

• Operating Frequency: 50MHz

• Operating Voltage: 1.15V～3.465V

• Package: QFP144

• I/Os: 80

• LEs: 6K

• RAM: 270kb

• PLLs: 2

• Debugging/Programming: supports JTAG

• AMS1117-3.3, 3.3V voltage regulator

• AMS1117-2.5, 2.5V voltage regulator

• AMS1117-1.2, 1.2V voltage regulator

• EPCS16, onboard serial FLASH memory, for storing code

• Power indicator

• LEDs

• Reset button

• nCONFIG button: for re-configuring the FPGA chip, the equivalent of power resetting

• Power switch

• 50M active crystal oscillator

• 5V DC jack

• JTAG interface: for debugging/programming

• FPGA pins expander, VCC, GND, and all the I/O ports are accessible on expansion connectors for further expansion

• LED jumpers

Altera EP4CE6E22C8N technical specifications, attributes, parameters and parts with similar specifications to Altera EP4CE6E22C8N.

When Cyclone IV devices are installed in a system, they are rated based on a set of criteria. The operating requirements specified in this chapter must be considered to maintain the maximum possible performance and dependability of Cyclone IV  devices.

Commercial, industrial, extended industrial, and automotive classes of Cyclone IV  devices are available. Commercial devices have speed grades of –6 (fastest), –7, –8, –8L, and –9L; industrial devices have speed grades of –8L; and extended industrial and automotive devices have speed grades of –7. Commercial Cyclone IV  GX devices come in speeds of –6 (fastest), –7, and –8, while industrial Cyclone IV  GX devices come in speeds of –7.
