The ESD1014 surge protection is designed to protect high-speed data lines from ESD, EFT, and lightning. This article will unlock more details about ESD1014.
ESD1014 Protection Diode: Datasheet, Pinout, Application
TVS DIODE 3.3V 11V 10UDFN The ESD1014 surge protection is designed to protect high-speed data lines from ESD, EFT, and lightning. This article will unlock more details about ESD1014.
86
Sep 9, 2021
Nelly Dick
ESD1014MUTAG
6600In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.37872 | $1.38 |
| 10+ | $1.30068 | $13.01 |
| 100+ | $1.22705 | $122.71 |
| 500+ | $1.1576 | $578.8 |
| 1000+ | $1.09207 | $1092.07 |
Unit Price:$1.37872
Subtotal: $1.38
Quick Links

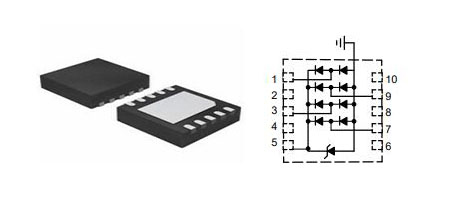

ESD1014 Pinout
ESD1014 CAD Model
Symbol

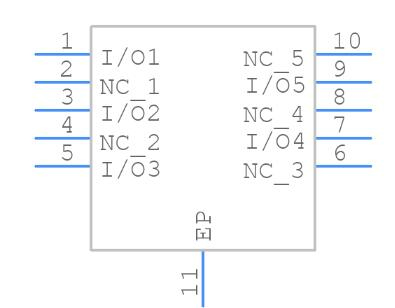

ESD1014 Symbol
Footprint

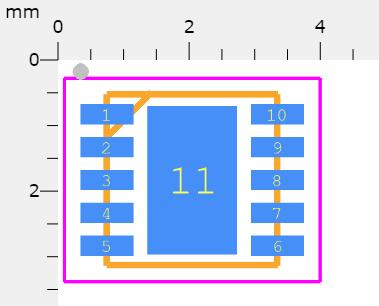

ESD1014 Footprint
3D Model

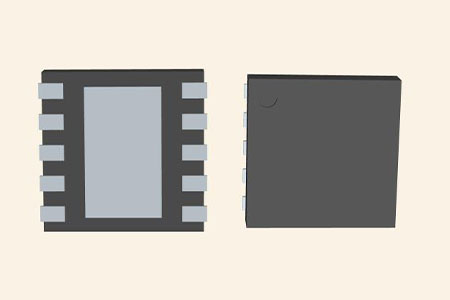

ESD1014 3D Model
ESD1014 Description
The ESD1014 surge protection is designed to protect high-speed data lines from ESD, EFT, and lightning.
Specifications
ON Semiconductor ESD1014MUTAG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor ESD1014MUTAG.
ESD1014MUTAG Tech Specifications
ESD1014MUTAG Tech Specifications
ON Semiconductor ESD1014MUTAG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor ESD1014MUTAG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-UFDFN Exposed Pad | |
| Surface Mount | YES | |
| Number of Pins | 10Pins | |
| Diode Element Material | SILICON | |
| Breakdown Voltage / V | 5.3V | |
| Number of Elements | 1 Element | |
| Reverse Stand-off Voltage | 3.3V | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 10Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Type | Steering (Rail to Rail) | |
| Applications | General Purpose | |
| Additional Feature | LOW CAPACITANCE | |
| Max Power Dissipation | 450W | |
| Terminal Position | DUAL | |
| Depth | 2.6mm | |
| Base Part Number | ESD1014 | |
| Pin Count | 10 | |
| Lead Pitch | 500μm | |
| Working Voltage | 3.3V | |
| Polarity | UNIDIRECTIONAL | |
| Configuration | SINGLE | |
| Number of Channels | 4Channels | |
| Leakage Current | 5μA | |
| Power Dissipation | 450W | |
| Power Line Protection | Yes | |
| Voltage - Breakdown (Min) | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Peak Pulse (10/1000μs) | 30A 8/20μs | |
| Clamping Voltage | 11V | |
| Voltage - Reverse Standoff (Typ) | 3.3V Max | |
| Peak Pulse Current | 30A | |
| Peak Pulse Power | 450W | |
| Direction | Bidirectional | |
| Halogen Free | Halogen Free | |
| Unidirectional Channels | 4 | |
| Capacitance @ Frequency | 3.8pF @ 1MHz | |
| Max Breakdown Voltage | 5.3V | |
| Height | 500μm | |
| Length | 2.6mm | |
| Width | 1.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
ESD1014 Features
• Low Capacitance (6 pF Maximum Between I/O Lines and GND)
• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model
• Protection for the Following IEC Standards: IEC 61000−4−2 (ESD) Level 4 − 30 kV (Contact)
• SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• This is a Pb−Free Device
ESD1014 Application
• High-Speed Communication Line Protection
• USB 1.1 and 2.0 Power and Data Line Protection
• Digital Video Interface (DVI)
• Monitors and Flat Panel Displays
• T1/E1 and T3/E3
• 10/100/1000 Ethernet Protection
• Gigabit Ethernet Protection
ESD1014 Package

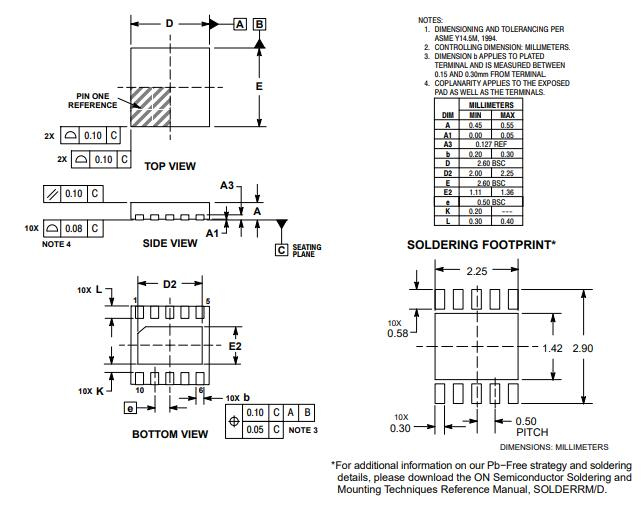

ESD1014 Manufacturer
Safety First, Quality Always!
At ON Semiconductor, we are committed to engineering a better tomorrow through the actions we take every day. Every ON Semiconductor, the employee is personally responsible for delivering the highest quality and services to internal and external customers. Continual improvement in the quality of our processes, products, and services is fundamental to customer satisfaction.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor ESD1014MUTAG.
ESD1014MUTAG Documents
ESD1014MUTAG Documents
Download datasheets and manufacturer documentation for ESD1014MUTAG
PCN Packaging
Covering Tape/Material Chg 20/May/2016
Environmental Information
Material Declaration ESD1014MUTAG
PCN Assembly/Origin
Addition of Assembly Site 28/Jan/2014
Frequently Asked Questions
What is alternative for ESD1014?
HSP051-4M10, ESD7504MUTAG, ESD8004MUTAG
How many pins does ESD1014 have?
It has 10 pins.
What is the operating temperature of ESD1014?
It is from -40°C to 125°C (TJ).
FAQ
What is alternative for ESD1014?
HSP051-4M10, ESD7504MUTAG, ESD8004MUTAG
How many pins does ESD1014 have?
It has 10 pins.
What is the operating temperature of ESD1014?
It is from -40°C to 125°C (TJ).
