ESP32S2 WiFi 802.11b/g/n Transceiver Module: Datasheet, Pinout, and Application

ESP32-S2 family is a highly-integrated, low-power, 2.4 GHz Wi-Fi System-on-Chip (SoC) solution. With its state-of-the-art power and RF performance, this SoC is an ideal choice for a wide variety of application scenarios relating to the Internet of Things (IoT), wearable electronics, and smart homes. ESP32-S2 family includes a Wi-Fi subsystem that integrates a Wi-Fi MAC, Wi-Fi radio and baseband, RF switch, RF balun, power amplifier, low noise amplifier (LNA), etc. The chip is fully compliant with the IEEE 802.11b/g/n protocol and offers a complete Wi-Fi solution. At the core of this chip is an Xtensa® 32-bit LX7 CPU that operates at up to 240 MHz. The chip supports application development, without the need for a host MCU. The on-chip memory includes 320 KB SRAM and 128 KB ROM. It also supports multiple external SPI/QSPI/OSPI flash and external RAM chips for more memory space.

• ESP32-S2-WROOM or ESP32-S2-WROVER module with Xtensa® 32-bit LX7 CPU 240 MHz

• 320 KB SRAM, 128KB ROM, 16 KB SRAM in RTC

• 4MB Flash

• 2MB PSRAM in ESP32-S2-WROVER-DevKit-Lipo

• WiFi 1T1R 150Mbps

• LiPo battery charger

• Battery monitoring

• External power sense

• Low consumption

• RGB LED

• CH340T programmer works with Espressif SDK, Arduino, Platform IO

• Reset button

• User button

• Pin-to-pin compatible with ESP32-S2-SAOLA-1

Espressif Systems ESP32-S2 technical specifications, attributes, parameters and parts with similar specifications to Espressif Systems ESP32-S2.

ESP32S2 Pinout

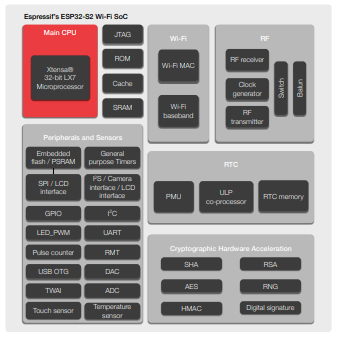

ESP32S2 Block Diagram

• Generic Low-power IoT Sensor Hubs

• Generic Low-power IoT Data Loggers

• Cameras for Video Streaming

• Over-the-top (OTT) Devices

• USB Devices

• Speech Recognition

• Image Recognition

• Mesh Networks

• Home Automation

– Light control

– Smart plugs

– Smart door locks

• Smart Buildings

– Smart lighting

– Energy monitoring

• Industrial Automation

– Industrial wireless control

– Industrial robotics

• Smart Agriculture

– Smart greenhouses

– Smart irrigation

– Agriculture robotics

• Audio Applications

– Internet music players

– Live streaming devices

– Internet radio players

– Audio headsets

• Health Care Applications

– Health monitoring

– Baby monitors

• Wi-Fi-enabled Toys

– Remote control toys

– Proximity sensing toys

– Educational toys

• Wearable Electronics

– Smart watches

– Smart bracelets

• Retail & Catering Applications

– POS machines

– Service robots

• Touch Sensing Applications

– Waterproof design

– Distance sensing applications

– Linear slider, wheel slider designs

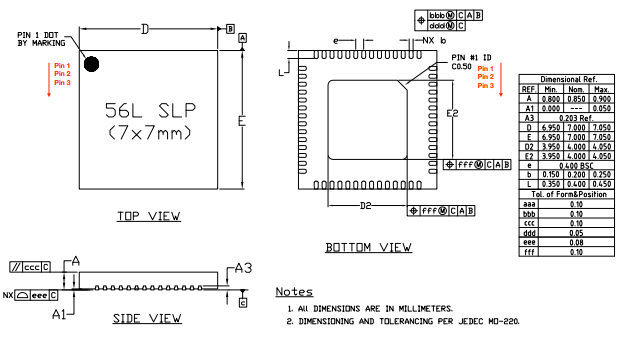

ESP32S2 Package information

Espressif Systems is a world-leading Internet-of-Things (IoT) company. They are an innovative team of chip-design specialists, software/firmware developers, and marketers. They are committed to providing some of the best IoT devices and software platforms in the industry. They also help their customers build their own solutions and connect with other partners in the IoT ecosystem. Their passion lies in creating state-of-the-art chipsets and enabling their partners to deliver great products. Espressif’s products are widely deployed in the tablet, OTT boxes, cameras, and IoT markets.
