Introduction to Battery Management Studio (bqStudio)
EVAL BOARD, EV2400 USB INTERFACE
The EV2400 EVM interface card allows an IBM-compatible or another type of PC to communicate with Texas Instruments SMBus. So this article is going to talk about more detailed information about EV2400.
EV2400
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $408.56054 | $408.56 |
| 10+ | $385.43447 | $3854.34 |
| 100+ | $363.61742 | $36361.74 |
| 500+ | $343.0353 | $171517.65 |
| 1000+ | $323.61821 | $323618.21 |
The EV2400 EVM interface card allows an IBM-compatible or other type PC to communicate with Texas Instruments SMBus and I2C interface gas gauges via a USB port (with the needed software for its particular platform). To complete the assessment system, PC software is necessary to analyze the gas gauge data in addition to this board.
• Fully powered from the USB port.
• Optional 5-V port for powering high-power voltage drivers (future upgrade)
• Complete interface between the USB and SMBus or I2C interfaces using a simple API.
• Expansion port for future upgrades
The MSP430F5529 controller of the EV2400 runs at 4 MHz. At power-up, the controller firmware is loaded in flash memory and executed by the core. A 2-wire SMBus communication port, a 2-wire EEPROM I2C port, or a single-wire HDQ port are used to connect with the destination device(s). Both SMBus and I2C protocols are supported via the 2-wire SMBus communication interface. Data packets are checked for CRC-8 checksums to prevent data corruption through USB.
The interface board connects to a USB port on a host computer (version 1.1 or later) and is powered by the port. Human Interface Device (HID) class communication is used for all USB communication. Drivers are included with Windows® and the majority of operating systems.
Texas Instruments EV2400 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments EV2400.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 22 hours ago) | |
| Factory Lead Time | 52 Weeks | |
| Package / Case | Module | |
| Number of Pins | 0Pin | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Interface | |
| Function | USB 2.0 to SMBus Bridge | |
| Operating Supply Voltage | 5V | |
| Interface | USB | |
| Utilized IC / Part | MSP430F5529 | |
| Supplied Contents | Board(s), Cable(s) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Evaluation Kit | Yes | |
| Embedded | Yes, MCU, 16-Bit | |
| REACH SVHC | No SVHC | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Lead Free |

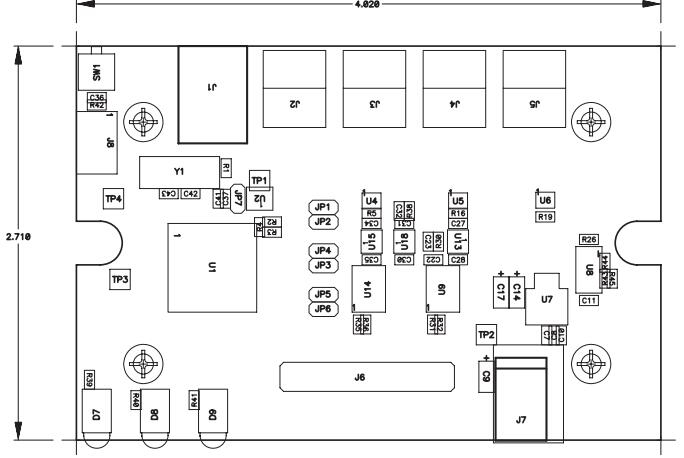

Top Assembly

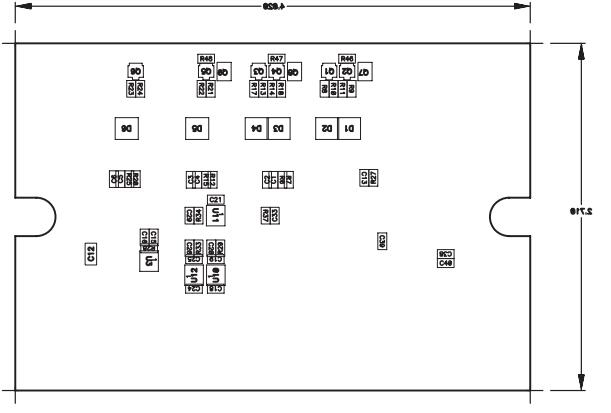

Bottom Assembly

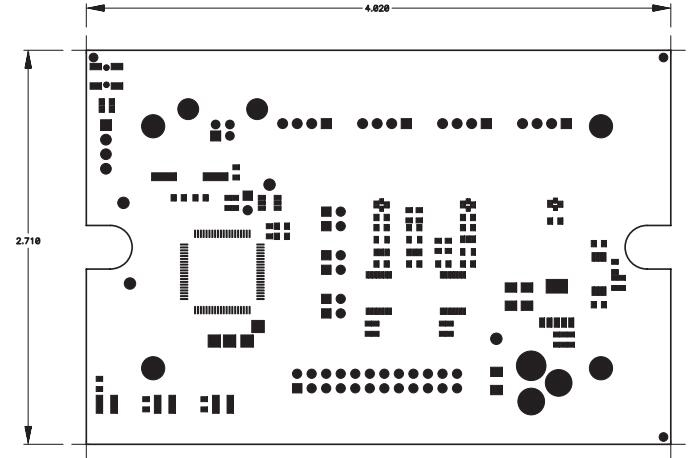

Solder Mask 1

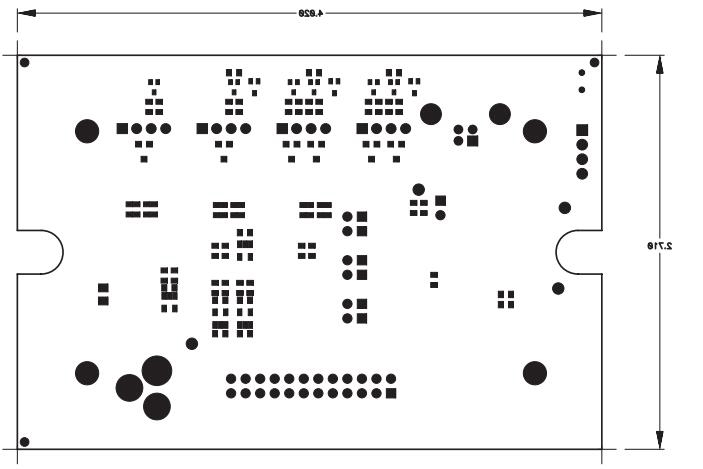

Solder Mask 2

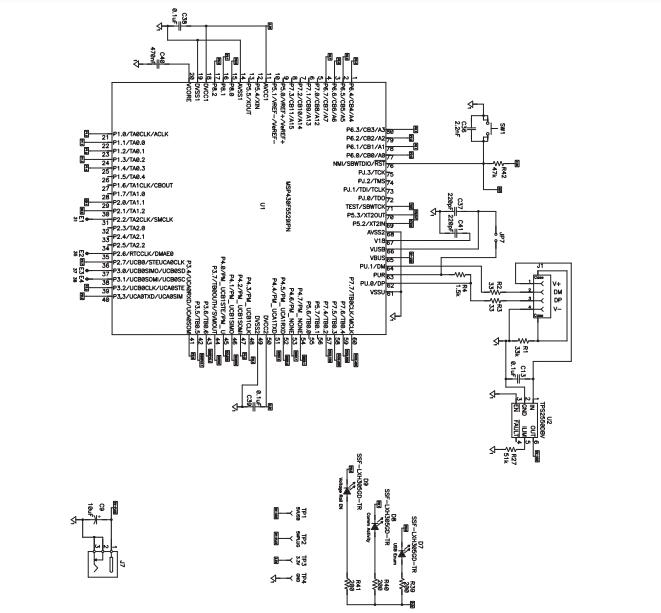

EV2400 Schematic
Communications & Networking
Industrial
Texas Instruments Inc. (TI) is an American technology business that creates and manufactures semiconductors and integrated circuits for electrical designers and manufacturers all over the world. The company's headquarters are in Dallas, Texas. Based on sales volume, TI is one of the top 10 semiconductor businesses in the world. Texas Instruments' primary concentration is on analog chips and embedded processors, which account for more than 80% of the company's revenue. TI also makes calculators, microcontrollers, and multi-core processors, as well as TI digital light processing (DLP) technologies and education technology.
