FN2000121 Oscillator: Datasheet, Test Circuit, Application

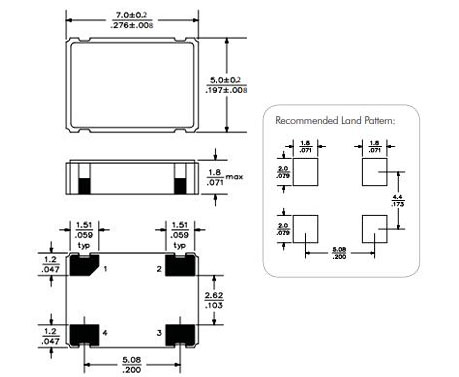

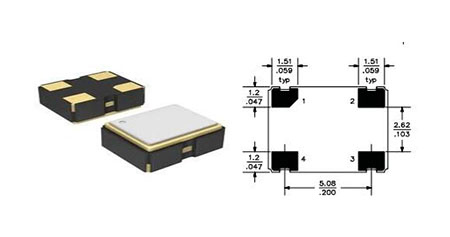

The FN2000121 is from the FN Series 3.3V crystal clock oscillator. It achieves superb jitter and stability over a broad range of operating conditions and frequencies. The output clock signal, generated internally with a non-PLL oscillator design, is compatible with LVCMOS/LVTTL logic levels. The device, available on tape and reel, is contained in a 7.0 x 5.0mm surface-mount ceramic package.

Diodes Incorporated FN2000121 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated FN2000121.

• 1 to 166 MHz Frequency Range

•<1 ps RMS jitter

•3.3V CMOS/TTL compatible logic levels

•Pin-compatible with standard 7.0 x 5.0mm packages

•Designed for standard reflow and washing techniques

•Low power standby mode

•Pb-free and RoHS/Green compliant

Ideal for low jitter or tight stability applications:

• Ethernet

• Fibre Channel

• SONET/SDH line cards

• T1/E1, T3/E3 line cards

• Serial Attached SCSI (SAS)

• Server & Storage platforms

• 802.11a/b/g WiFi

• EPON

• DSLAM

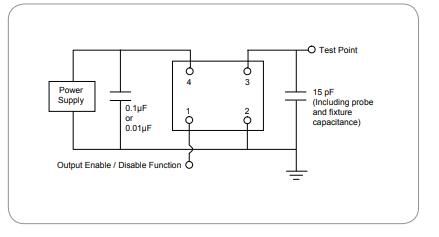

FN2000121 Test Circuit
