FOD3180
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.91567 | $2.92 |
| 10+ | $2.75063 | $27.51 |
| 100+ | $2.59494 | $259.49 |
| 500+ | $2.44805 | $1224.02 |
| 1000+ | $2.30948 | $2309.48 |

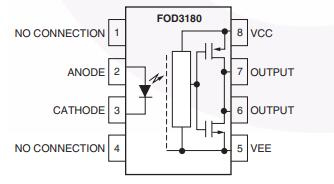

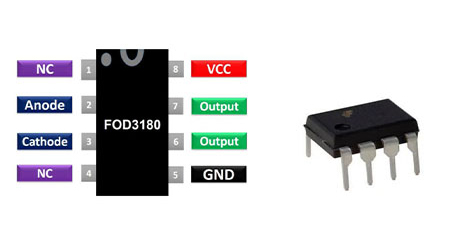

FOD3180 Pinout
| Pin Number | Pin Name | Description |
| 1 | NC | No Connection - Cannot be used |
| 2 | Anode (A) | Anode pin of the IR LED. Connected to the logic input |
| 3 | Cathode (C) | Cathode pin of the IR LED |
| 4 | NC | No Connection - Cannot be used |
| 5 | Ground | Ground pin of the IC |
| 6 | Output | The output pin of the Optocoupler |
| 7 | Output | The output pin of the Optocoupler |
| 8 | Vcc | Powers the IC |
Pin Description

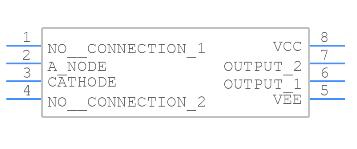

FOD3180 Symbol

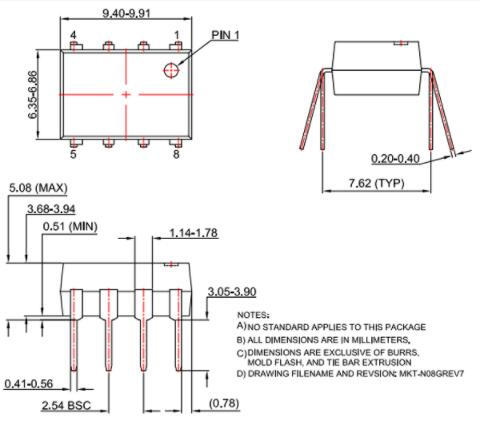

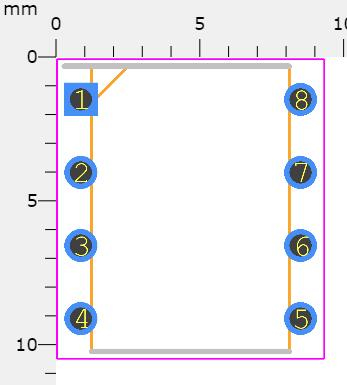

FOD3180 Footprint

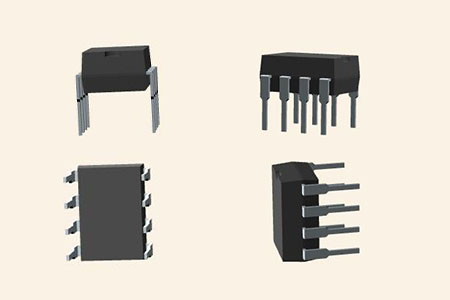

FOD3180 3D Model
The FOD3180 is a MOSFET Gate Driver Optocoupler that is used to separate two circuits. It's a MOSFET Optocoupler with three components: an AlGaAs infrared emitting diode, output power transistors, and a CMOS detector that detects infrared light.
ON Semiconductor FOD3180 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FOD3180.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 5 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 891mg | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~100°C | |
| Packaging | Tube | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Additional Feature | UL RECOGNIZED | |
| Max Power Dissipation | 295mW | |
| Approval Agency | cUL, UL | |
| Voltage - Isolation | 5000Vrms | |
| Output Voltage | 25V | |
| Configuration | SINGLE | |
| Number of Channels | 1Channel | |
| Power Dissipation | 295mW | |
| Voltage - Forward (Vf) (Typ) | 1.43V | |
| Propagation Delay | 200 ns | |
| Turn On Delay Time | 200 ns | |
| Optoelectronic Device Type | FET OUTPUT OPTOCOUPLER | |
| Forward Current | 25mA | |
| Max Output Voltage | 25V | |
| Direction | Unidirectional |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current per Channel | 2A | |
| Rise Time | 75ns | |
| Fall Time (Typ) | 55 ns | |
| Rise / Fall Time (Typ) | 75ns 55ns | |
| Reverse Breakdown Voltage | 5V | |
| Max Input Current | 25mA | |
| Input Current | 16mA | |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns | |
| Common Mode Transient Immunity (Min) | 15kV/μs | |
| Reverse Voltage (DC) | 5V | |
| Pulse Width Distortion (Max) | 65ns | |
| Voltage - Output Supply | 10V~20V | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Operating Voltage: 10 Volts – 20 Volts
Operating Temperature: -400C to 1000C
Average Input Current: 25 mA
Minimum Isolation Voltage: 5000
Rise Time: 75 ns
Fall Time: 55 ns
Reverse Input Voltage: 5 Volts
High Peak Output Current: 2.5 A
Low Peak Output Current: 2.5 A
Peak Output Voltage: 0 – VCC
Forward Current: 10 mA
Reverse Current: 10 uA
High-Speed Propagation delay: 200 nsec
Typical Pulse Width Distortion: 30 nsec
Maximum Switching speed: 250 kHz
Minimum Creepage Distance: 7.0mm
Minimum Clearance Distance: 7.0mm
Output Power: 250 mWatts
Total Power: 295 mWatts
Package-Type: 8-lead DIP/8-lead SMD
High AC/DC Switching Circuits
Signal Isolator Circuits
Analog Current Detection
Power Control
Plasma Display panel
6N133 (equivalent)
MOC3021
MCT2E
MOC3041
6N137
4N25
A High-Speed Optocoupler is the FOD3180. As we all know, an optocoupler is a device that uses light to indirectly couple (isolate) two circuits. FOD3180 has a 10V to 20V operational voltage range and an output current of 8mA, making it appropriate for driving medium-level loads. It's perfect for driving power MOSFETs in Plasma Display Panels (PDPs), motor control inverter applications, and high-performance DC-DC converters at high frequencies.
Despite the fact that the FOD3180 can work with both AC and DC, it is most typically utilized in digital circuits and requires a 5V supply voltage. The FOD3180 application circuit is given below.
FOD3180 Application Circuit
The 0.1uF bypass capacitor is located between pins 5 and 8. A capacitor in series with a current limiting resistor makes up the load (pin7). A power MOSFET transistor's gate to source capacitance is represented by the capacitor. For the IC to respond, the input signal must have a minimum impedance of 50 ohms and a rise time of 75 nS or greater.
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centres in key markets through North America, Europe, and the Asia Pacific regions.
Note: More details can be found at the FOD3180 Optocoupler datasheet shown below.
Download datasheets and manufacturer documentation for FOD3180
