MOSFET P-CH 60V 27A TO-220
This article will introduce datasheet, pinout, test circuit and more details about FQP27P06, a through-hole, -60V P channel QFET MOSFET in TO-220 package. And, Huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ!
FQP27P06
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.90617 | $2.91 |
| 10+ | $2.74167 | $27.42 |
| 100+ | $2.58648 | $258.65 |
| 500+ | $2.44007 | $1220.04 |
| 1000+ | $2.30196 | $2301.96 |
The FQP27P06 P-Channel enhancement mode power MOSFET is produced using ON Semiconductor's proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been specially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched-mode power supplies, audio amplifiers, DC motor control, and variable switching power applications.

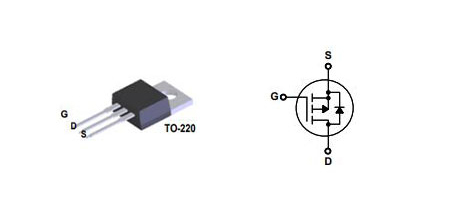

FQP27P06 Symbol
FQP27P06 Footprint
FQP27P06 3D Model
ON Semiconductor FQP27P06 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FQP27P06.
ON Semiconductor FQP27P06 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FQP27P06.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 1.8g | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 27A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 120W Tc | |
| Turn Off Delay Time | 30 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Series | QFET® | |
| Published | 1999 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 70mOhm | |
| Voltage - Rated DC | -60V | |
| Current Rating | -27A | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 120W | |
| Turn On Delay Time | 18 ns | |
| FET Type | P-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 70m Ω @ 13.5A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 43nC @ 10V | |
| Rise Time | 185ns |
| Product Attribute | Attribute Value | |
|---|---|---|
| Drain to Source Voltage (Vdss) | 60V | |
| Vgs (Max) | ±25V | |
| Fall Time (Typ) | 90 ns | |
| Continuous Drain Current (ID) | -27A | |
| Threshold Voltage | -4V | |
| JEDEC-95 Code | TO-220AB | |
| Gate to Source Voltage (Vgs) | 25V | |
| Drain to Source Breakdown Voltage | -60V | |
| Dual Supply Voltage | -60V | |
| Avalanche Energy Rating (Eas) | 560 mJ | |
| Nominal Vgs | -4 V | |
| Height | 6.35mm | |
| Length | 6.35mm | |
| Width | 9.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
-27A, -60V, RDS(on) = 0.07Ω @VGS = -10 V
Low gate charge ( typical 33 nC)
Low Crss ( typical 120 pF)
Fast switching
100% avalanche tested
Improved dv/dt capability
175°C maximum junction temperature rating
The Equivalents for FQP27P06: FQP10N20, FQP10N20C, FQP10N50CF, FQP10N60, FQP10N60C.
Other Audio
Video
The test circuit for FQ27P06 is shown below:

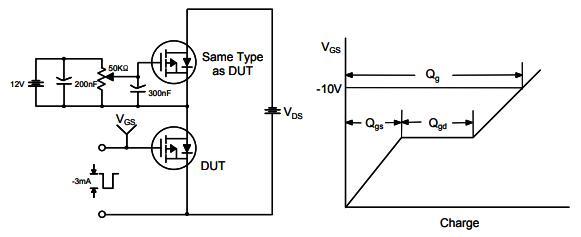

Gate Charge Test Circuit & Waveform

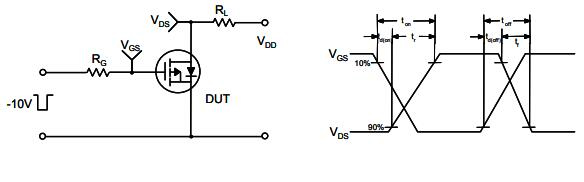

Resistive Switching Test Circuit & Waveforms

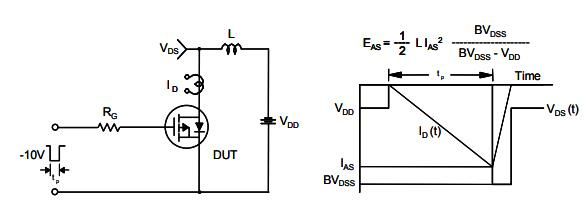

Unclamped Inductive Switching Test Circuit & Waveforms
Peak Diode Recovery dv /dt Test Circuit & Waveforms
FQP27P06 Package
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient.
Download datasheets and manufacturer documentation for ON Semiconductor FQP27P06.
Download datasheets and manufacturer documentation for FQP27P06
