FQP30N06L Description
The FQP30N06L is an N-Channel enhancement mode logic-level MOSFET, meaning it can turn ON fully by using the logic level(3.3V OR 5V) of a microcontroller. The FQP30N06L is produced using Fairchild's proprietary, planar stripe, DMOS technology. This advanced technology has been specially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQP30N06L is well suited for low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery-operated products.
FQP30N06L Pinout
FQP30N06L CAD Model
Symbol

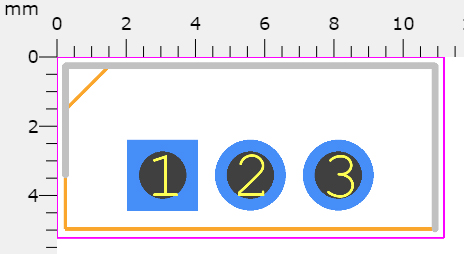

Footprint
3D Model
FQP30N06L Features
-
Package Type: TO-220
-
Transistor Type: N Channel
-
Mounting Type: Through Hole
-
Continuous Drain Current: 32 A
-
Drain to Source Voltage: 60 V
-
Drain Source Resistance: 45 mΩ
-
Gate to Source Voltage: 20 V
-
Power Dissipation: 79 W
-
Storage & Operating temperature: -55 to +175 Celsius
FQP30N06L Advantages
-
32 A, 60 V, RDS(on) = 0.035 Ω @VGS = 10 V
-
Low gate charge (typical 15 nC)
-
Low Crss (typical 50 pF)
-
Fast switching
-
100% avalanche tested
-
Improved dv/dt capability
Specifications
ON Semiconductor FQP30N06L technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FQP30N06L.
FQP30N06L Tech Specifications
FQP30N06L Tech Specifications
ON Semiconductor FQP30N06L technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FQP30N06L.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 4 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 1.8g | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 32A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 79W Tc | |
| Turn Off Delay Time | 60 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Series | QFET® | |
| Published | 2013 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 35mOhm | |
| Terminal Finish | Tin (Sn) | |
| Voltage - Rated DC | 60V | |
| Current Rating | 32A | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 79W | |
| Turn On Delay Time | 15 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 35m Ω @ 16A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 1040pF @ 25V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 5V | |
| Rise Time | 210ns | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 110 ns | |
| Continuous Drain Current (ID) | 32A | |
| Threshold Voltage | 2.5V | |
| JEDEC-95 Code | TO-220AB | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain to Source Breakdown Voltage | 60V | |
| Nominal Vgs | 2.5 V | |
| Height | 16.3mm | |
| Length | 10.67mm | |
| Width | 4.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
FQP30N06L Test Circuits
FQP30N06L Gate Charge Test Circuit & Waveform
FQP30N06L Resistive Switching Test Circuit & Waveform
FQP30N06L Unclamped Inductive Switching Test Circuit & Waveform
FQP30N06L Alternatives
Where to use FQP30N06L
The FQP30N06 is a logic-level MOSFET that can be used in switch-mode power supply circuits and audio amplifiers. And for DC motor control using Arduino or a similar microcontroller. The FQP30N06 is also widely used in low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery-operated products.
FQP30N06L Applications
-
Power management
-
Motor drive
-
DC motor control
-
Switch-mode power supplies
-
Audio amplifier
-
Switching power applications
-
DC/DC converters
FQP30N06L Dimensions
FQP30N06L Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor FQP30N06L.
FQP30N06L Documents
FQP30N06L Documents
Download datasheets and manufacturer documentation for FQP30N06L
PCN Assembly/Origin
Mult Dev Mold Chg 28/Oct/2019
Mult Dev Site Add 3/Jan/2020
Mult Dev Site Transfer 5/Jul/2019
Environmental Information
Material Declaration FQP30N06L
PCN Design/Specification
Logo 17/Aug/2017
Frequently Asked Questions
1.What is FQP30N06L?
The FQP30N06L is a QFET® N-channel enhancement mode Power MOSFET produced using planar stripe and DMOS technology. This advanced MOSFET technology has been specially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength.
2.What is Logic Level MOSFET?
A logic level MOSFET means that it is designed to turn on fully from the logic level of a microprocessor. The standard MOSFET (IRF series etc) is designed to run from 10V. A logic level MOSFET will have Rds(on) specified for Vgs=5V or 4.5V. If it's only specified for Vgs=10V, it's not logic-level.
3.How do you check if a MOSFET is working?
1) Hold the MOSFET by the case or the tab but don't touch the metal parts of the test probes with any of the other MOSFET's terminals until needed.
2) First, touch the meter positive lead onto the MOSFET's 'Gate'.
3) Now move the positive probe to the 'Drain'. You should get a 'low' reading.
4.What are the two types of MOSFET?
There are two classes of MOSFETs. There is depletion mode and there is enhancement mode. Each class is available as N- or a P-channel, giving a total of four types of MOSFETs. Depletion mode comes in an N or a P and an enhancement mode comes in an N or a P.
FAQ
1.What is FQP30N06L?
The FQP30N06L is a QFET® N-channel enhancement mode Power MOSFET produced using planar stripe and DMOS technology. This advanced MOSFET technology has been specially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength.
2.What is Logic Level MOSFET?
A logic level MOSFET means that it is designed to turn on fully from the logic level of a microprocessor. The standard MOSFET (IRF series etc) is designed to run from 10V. A logic level MOSFET will have Rds(on) specified for Vgs=5V or 4.5V. If it's only specified for Vgs=10V, it's not logic-level.
3.How do you check if a MOSFET is working?
1) Hold the MOSFET by the case or the tab but don't touch the metal parts of the test probes with any of the other MOSFET's terminals until needed.
2) First, touch the meter positive lead onto the MOSFET's 'Gate'.
3) Now move the positive probe to the 'Drain'. You should get a 'low' reading.
4.What are the two types of MOSFET?
There are two classes of MOSFETs. There is depletion mode and there is enhancement mode. Each class is available as N- or a P-channel, giving a total of four types of MOSFETs. Depletion mode comes in an N or a P and an enhancement mode comes in an N or a P.
