DIODE GEN PURP 1KV 1A DO41
FR107 is a 1.0A fast recovery rectifier diode. This article mainly covers datasheet, features, pinout, and other details about FR107. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
FR107-T
Symbol

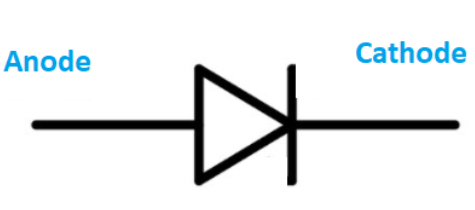

FR107 Symbol
Footprint

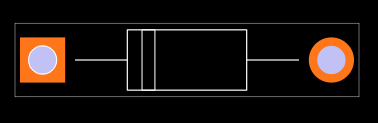

FR107 Footprint
The FR107 is a Fast Recovery Rectifier diode that is used to convert alternating current to direct current in circuits. It has a peak inverse voltage (PIV) rating of 1,000 V and can pass currents up to 1 A.
Diodes Incorporated FR107-T technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated FR107-T.
Diodes Incorporated FR107-T technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated FR107-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |

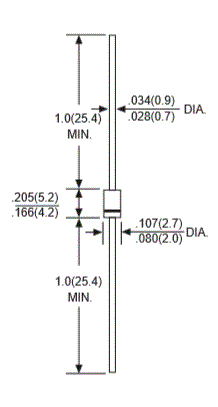

| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2003 | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Additional Feature | HIGH RELIABILITY | |
| HTS Code | 8541.10.00.80 | |
| Voltage - Rated DC | 1kV | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reach Compliance Code | not_compliant | |
| Current Rating | 1A | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | FR107 | |
| Pin Count | 2 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 5μA @ 1000V | |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1A | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -65°C~175°C | |
| Output Current-Max | 1A | |
| Voltage - DC Reverse (Vr) (Max) | 1000V | |
| Forward Voltage | 1.3V | |
| Max Reverse Voltage (DC) | 1kV | |
| Average Rectified Current | 1A | |
| Reverse Recovery Time | 500 ns | |
| Peak Non-Repetitive Surge Current | 30A | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
Plastic Package: UL Flammability
Classification Rating 94V-0
Capable of Meeting the Environmental Tests in MIL-STD-750C
High Reliability and Low Leakage
Fast Switching for High Efficiency

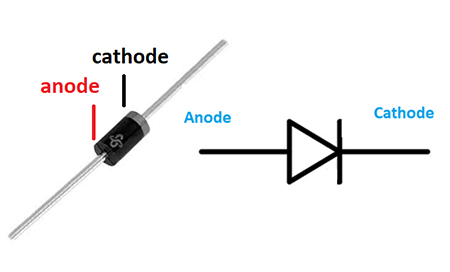

Polarity = Cathode band
Recurrent Peak Reverse Voltage Max. = 1000 V
Reverse recovery time = 500 ns
Typical Junction Capacitance = 15 pF
Average Forward Output Current Max. = 1 A
Forward Voltage Drop per element at 1.0A DC Max = 1.3 V
Operating and Storage Temperature Range = -65 to 150 °C
It's used in applications that require quick switching.
Supports loads of less than 1A.
Signals are being mixed.
Signal isolation from a supplier.
Controlling the signal's size.
| FR107 | 1N4007 | |
| Pbfree Code | Yes | |
| Rohs Code | Yes | No |
| Part Life Cycle Code | Contact Manufacturer | Active |
| Part Package Code | DO-41 | DO-41 |
| Package Description | O-PALF-W2 | PLASTIC PACKAGE-2 |
| Pin Count | 2 | 2 |
| Reach Compliance Code | unknown | unknown |
| ECCN Code | EAR99 | EAR99 |
| HTS Code | 8541.10.00.80 | 8541.10.00.80 |
| Additional Feature | HIGH RELIABILITY | HIGH RELIABILITY |
| Case Connection | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE |
| Diode Element Material | SILICON | SILICON |
| Diode Type | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 Code | DO-41 | DO-41 |
| JESD-30 Code | O-PALF-W2 | O-PALF-W2 |
| Number of Elements | 1 | 1 |
| Number of Terminals | 2 | 2 |
| Operating Temperature-Max | 150 °C | 150 °C |
| Operating Temperature-Min | -65 °C | -65 °C |
| Output Current-Max | 1 A | 1 A |
| Package Body Material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package Shape | ROUND | ROUND |
| Package Style | LONG FORM | LONG FORM |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Rep Pk Reverse Voltage-Max | 1000 V | 1000 V |
| Reverse Recovery Time-Max | 0.5 µs | |
| Surface Mount | NO | NO |
| Terminal Form | WIRE | WIRE |
| Terminal Position | AXIAL | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Number Matches | 61 | 1 |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
