Diodes - Rectifiers - Single DIODE GEN PURP 1KV 3A DO201AD FR307 is a 3.0A fast recovery rectifier. This article is going to explain pinout, datasheet pdf, equivalents, and other details about the FR307 recovery diode.
2430
Nov 13, 2021
Buck Burns
Schottky diode in5408 diode In4007 diode Fr207 diode sr diode.. How to use diode
Diodes - Rectifiers - Single DIODE GEN PURP 1KV 3A DO201AD
FR307 is a 3.0A fast recovery rectifier. This article is going to explain pinout, datasheet pdf, equivalents, and other details about the FR307 recovery diode.
FR307-T
The FR307 is a fast recovery Power diode with axial leads and molded plastic case. The power diode features low forward voltage drop, high current capability, high reliability, and high surge current capability.
There is a cathode (-) and anode (+) on the FR307 diode. The cathode is the tip of the triangle with the line on top of it in the schematic symbol. A band marks the cathode on the diode's body, as shown below.
FR307 Pinout
| Pin No. | Pin Name | Description |
| 1 | Anode | Current always Enters through Anode |
| 2 | Cathode | Current always Exits through Cathode |
FR307 Footprint
Diodes Incorporated FR307-T technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated FR307-T.
Diodes Incorporated FR307-T technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated FR307-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Max Operating Temperature | 175°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -65°C | |
| HTS Code | 8541.10.00.80 | |
| Capacitance | 50pF | |
| Voltage - Rated DC | 1kV | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reach Compliance Code | not_compliant | |
| Current Rating | 3A | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | FR307 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 10μA @ 1000V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Current | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 3A | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -65°C~175°C | |
| Voltage - DC Reverse (Vr) (Max) | 1000V | |
| Forward Voltage | 1.3V | |
| Max Reverse Voltage (DC) | 1kV | |
| Average Rectified Current | 3A | |
| Number of Phases | 1Phase | |
| Reverse Recovery Time | 500 ns | |
| Peak Non-Repetitive Surge Current | 150A | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Exempt |
Low Reverse Current
Low Forward Voltage Drop
High Current Capability
Plastic Material - UL Recognition 94V-0
Case: DO-201AD, Molded Plastic
Terminals: Axial Leads, Solderable per
MIL-STD-202 Method 208
Polarity: Color Band Denotes Cathode
Approx. Weight: 1.1 grams
Mounting Position: Any
1N4148, 1N4733A, 1N5408, 1N5822
P600M, HER508, 1N5402, BY255, 6A10, UF5408
Can be used to prevent the reverse polarity problem
HV supplies
Half Wave and Full Wave rectifiers
Used as a protection device
Current flow regulators

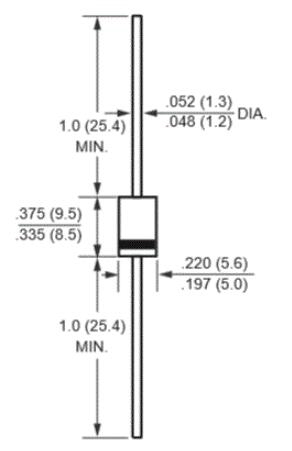

FR307 Dimensions
Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Download datasheets and manufacturer documentation for Diodes Incorporated FR307-T.
Download datasheets and manufacturer documentation for FR307-T
