The FT10001 is a timer for resetting a mobile device where long reset times are needed. This article mainly covers its datasheet, pinout, circuit and more detailed information about FT10001

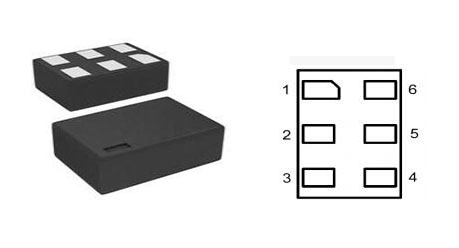

FT10001L6X
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.56328 | $1.56 |
| 10+ | $1.4748 | $14.75 |
| 100+ | $1.39132 | $139.13 |
| 500+ | $1.31256 | $656.28 |
| 1000+ | $1.23827 | $1238.27 |

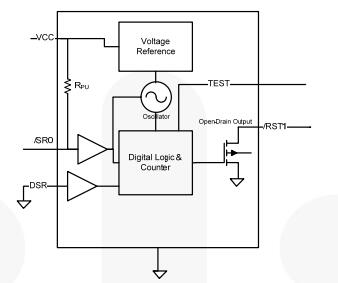

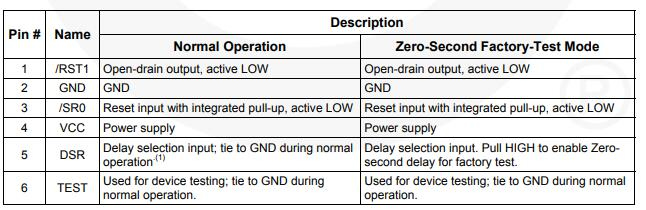

The FT10001 is a timer for resetting a mobile device where long reset times are needed. The long delay helps avoid unintended resets caused by accidental key presses. It has one input for single-button resetting capability. The device has a single open-drain output with 0.5mA pull-down drive.
Fixed Reset Delay:10 seconds
One Input Reset pin
Open-Drain Output Pin with Fixed 530ms Pulse
1.8V to 5.0V Operation
1.7V to 5.0V Operation
1.65V to 5.00V Operation
Zero-Second Test-Mode Enable
Integrated Pull-up Resistor on/ SRO
ON Semiconductor FT10001L6X technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FT10001L6X.
ON Semiconductor FT10001L6X technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FT10001L6X.

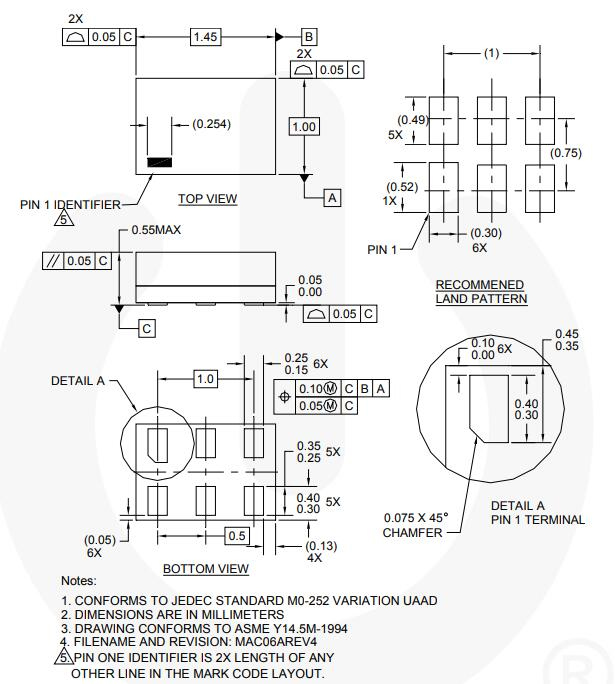

| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-UFDFN | |
| Number of Pins | 6Pins | |
| Weight | 30g | |
| Packaging | Tape & Reel (TR) | |
| Published | 2016 | |
| Operating Temperature | -40°C~85°C TA | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 | |
| Type | Reset Timer | |
| Terminal Finish | Nickel/Gold (Ni/Au) | |
| Max Power Dissipation | 5mW | |
| Terminal Position | DUAL | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | FT10001 | |
| Output | Open Drain or Open Collector | |
| Max Supply Voltage | 5V | |
| Min Supply Voltage | 1.8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 1μA | |
| Reset | Active Low | |
| Reset Timeout | 420ms Minimum | |
| Number of Timers/Counters | 1Timers/Counter | |
| High Level Output Current | -50mA | |
| Low Level Output Current | 500μA | |
| Width | 1mm | |
| Length | 1.45mm | |
| Height | 500μm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
Cell Phone
Portable Media Players
Tablets
Mobile Devices
Consumer Medical

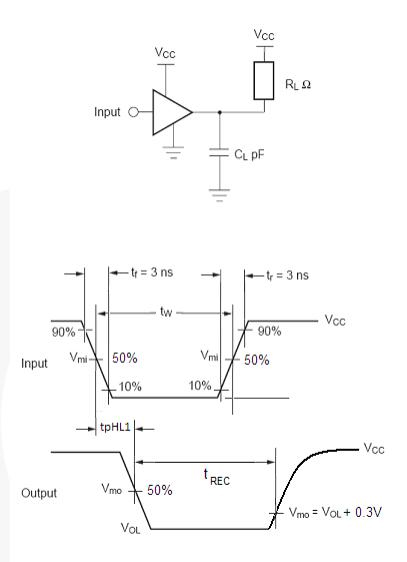

FT10001 AC Test circuit and waveforms
