FT2232HL-REEL USB Controller: Pinout, Datasheet, Application

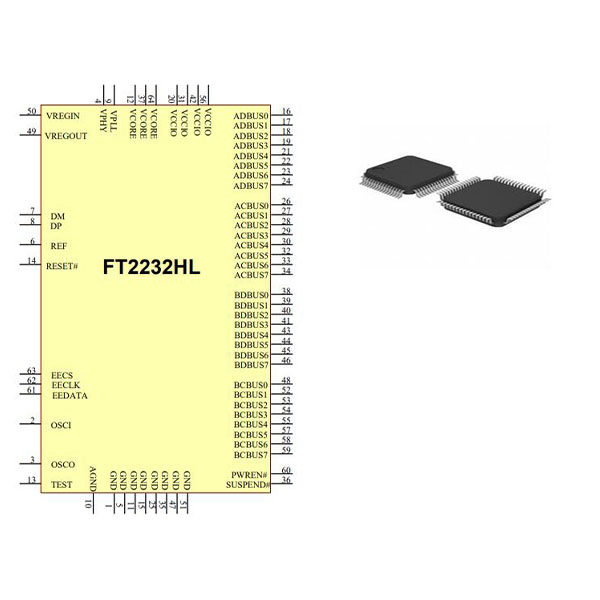

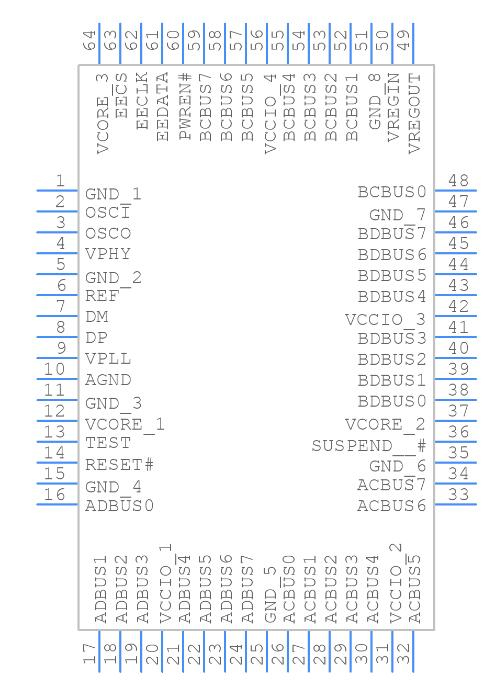

Symbol

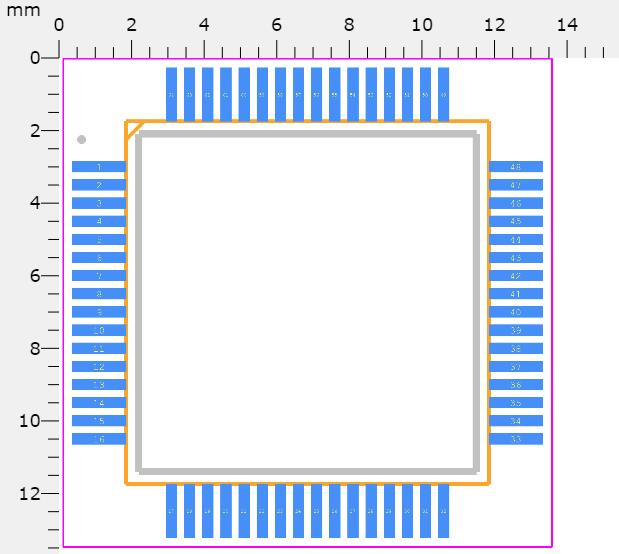

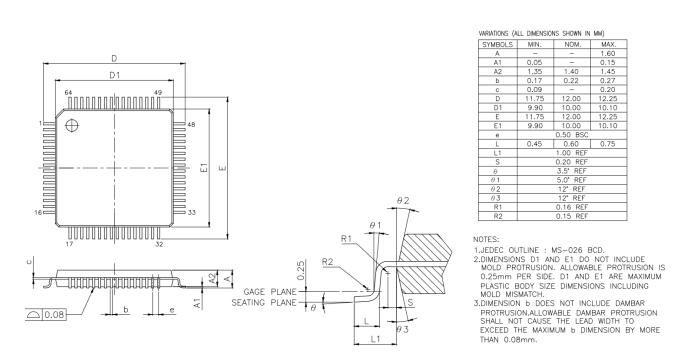

Footprint

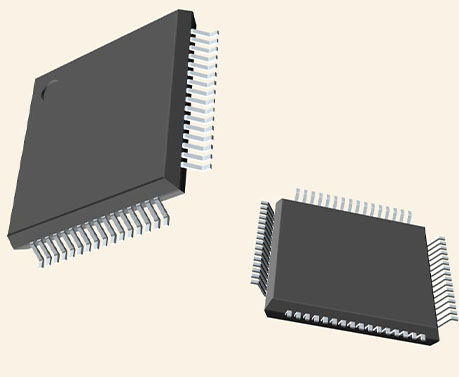

3D Model

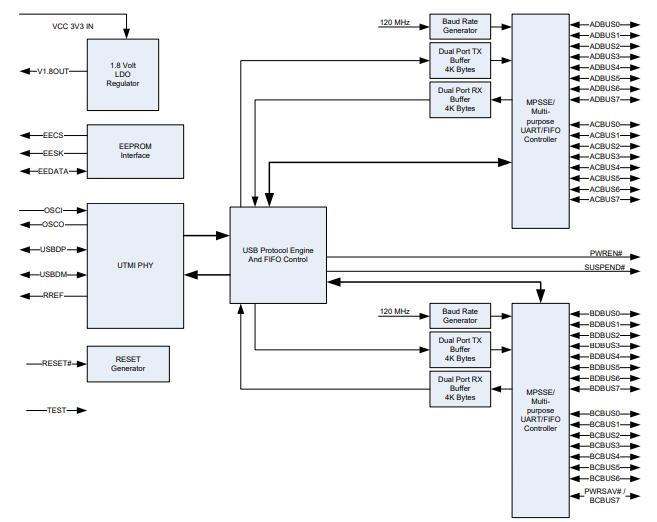

The FT2232HL-REEL is FTDI's 5th generation of USB devices. The FT2232HL-REEL is a USB 2.0 High Speed (480Mb/s) to UART/FIFO IC. It has the capability of being configured in a variety of industry-standard serial or parallel interfaces.

· Single chip USB to dual serial / parallel ports with a variety of configurations.

· Entire USB protocol handled on the chip. No USB specific firmware programming is required.

· USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.

· Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design.

· Dual independent UART or FIFO or MPSSE ports.

· Independent Baud rate generators.

· RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).

· USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec.

· Single channel synchronous FIFO mode for transfers up to 40 Mbytes/Sec

· CPU-style FIFO interface mode simplifies CPU interface design.

· MCU host bus emulation mode configuration option.

· Fast Opto-Isolated serial interface option.

· FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.

· Adjustable receive buffer timeout.

· Option for transmitting and receive LED drive signals on each channel.

· Enhanced bit-bang Mode interface option with RD# and WR# strobes

· FT245B-style FIFO interface option with bidirectional data bus and simple 4 wire handshake interface.

· Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on-chip clock multiplier PLL (12MHz – 480MHz).

· Asynchronous serial UART interface option with full hardware handshaking and modem interface signals.

· Fully assisted hardware or X-On / X-Off software handshaking.

· UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.

· Auto-transmit enables control for RS485 serial applications using TXDEN pin.

· Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.

· Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate.

· Low operating and USB suspend current.

· Supports bus-powered, self-powered and high-power bus powered USB configurations.

· UHCI/OHCI/EHCI host controller compatible.

· USB Bulk data transfer mode (512-byte packets in High-Speed mode).

· +1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).

· Extended -40°C to 85°C industrial operating temperature range.

· Compact 64-LD Lead-Free LQFP or QFN package

· Available in compact Pb-free 56 Pin VQFN packages (RoHS compliant)

· +3.3V single supply operating voltage range.

· ESD protection for FT2232H IO’s: Human Body Model (HBM) ±2kV, Machine Model (MM) ±200V, Charge Device Model (CDM) ±500V, Latch-up free.

FTDI, Future Technology Devices International Ltd FT2232HL-REEL technical specifications, attributes, parameters and parts with similar specifications to FTDI, Future Technology Devices International Ltd FT2232HL-REEL.

· Single chip USB to dual-channel UART (RS232, RS422 or RS485).

· Single chip USB to dual channel FIFO.

· Single chip USB to dual channel JTAG.

· Single chip USB to dual channel SPI.

· Single chip USB to dual-channel I2C.

· Single chip USB to dual channel Bit-Bang.

· Single chip USB to a dual combination of any of the above interfaces.

· Single chip USB to Fast Serial Optic Interface.

· Single chip USB to CPU target interface.

· Single chip USB to Host Bus Emulation (as CPU).

· PDA to USB data transfer.

· USB Smart Card Readers.

· USB Instrumentation.

· USB Industrial Control.

· USB MP3 Player Interface.

· USB FLASH Card Reader / Writers.

· Set Top Box PC - USB interface.

· USB Digital Camera Interface.

· USB Bar Code Readers.

The alternative to FT2232HL-REEL: FT2232HL-TRAY.

FTDI Chip develops innovative silicon solutions that enhance interaction with today's technology. Through the application of its “Design Made Easy” ethos, the company is able to support engineers with highly sophisticated, feature-rich, robust and simple-to-use product platforms. FTDI Chip's long-established, continuously expanding Universal Serial Bus (USB) product line boasts universally recognized products.

Download datasheets and manufacturer documentation for FTDI, Future Technology Devices International Ltd FT2232HL-REEL.
