The FT232HL-REEL is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It has the capability of being configured in a variety of industry-standard serial or parallel interfaces.

FTDI, Future Technology Devices International Ltd FT232HL-REEL technical specifications, attributes, parameters and parts with similar specifications to FTDI, Future Technology Devices International Ltd FT232HL-REEL.

· Single channel USB to serial/parallel ports with a variety of configurations.

· Entire USB protocol handled on the chip. No USB specific firmware programming is required.

· USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.

· Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.

· UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).

· USB to asynchronous 245 FIFO mode for transfer data rate up to 8 Mbyte/Sec.

· USB to synchronous 245 parallel FIFO mode for transfers up to 40 Mbytes/Sec

· Supports a proprietary half duplex FT1248 interface with a configurable width, bidirectional data bus (1, 2, 4 or 8 bits wide).

· CPU-style FIFO interface mode simplifies CPU interface design.

· Fast serial interface option.

· FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.

· Adjustable receive buffer timeout.

· Option for transmitting and receive LED drive signals.

· Bit-bang Mode interface option with RD# and WR# strobes

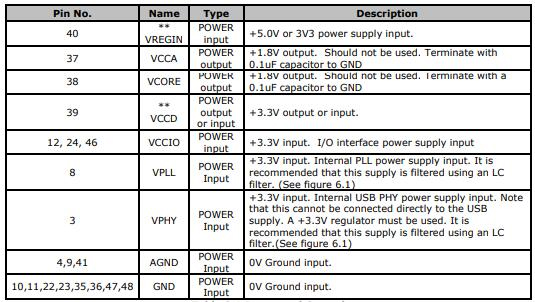

· Highly integrated design includes 5V to 3.3/+1.8V LDO regulator for VCORE, integrated POR function

· Asynchronous serial UART interface option with full hardware handshaking and modem interface signals.

· Fully assisted hardware or X-On / X-Off software handshaking.

· UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.

· Auto transmit enable control for RS485 serial applications using the TXDEN pin.

· Operational mode configuration and USB Description strings configurable in external EEPROM over the USB interface.

· Configurable I/O drives strength (4, 8, 12 or 16mA) and slew rate.

· Low operating and USB suspend current.

· Supports self-powered, bus-powered and high-power bus powered USB configurations.

· UHCI/OHCI/EHCI host controller compatible.

· USB Bulk data transfer mode (512-byte packets in Hi-Speed mode).

· +1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).

· Extended -40°C to 85°C industrial operating temperature range.

· Compact 48-pin Lead-Free LQFP or QFN package

· Configurable ACBUS I/O pins.

· Single chip USB to UART (RS232, RS422 or RS485)

· USB to FIFO

· USB to FT1248

· USB to JTAG

· USB to SPI

· USB to I 2C

· USB to Bit-Bang

· USB to Fast Serial Interface

· USB to CPU target interface (as memory)

· USB Instrumentation

· USB Industrial Control

· USB EPOS Control

· USB MP3 Player Interface

· USB FLASH Card Reader / Writers

· Set Top Box - USB interface

· USB Digital Camera Interface

· USB Bar Code Readers
