FT900 Embedded Microcontroller: Datasheet, Application, Pinout

The FT900 is complete System-On-Chip 32-bit RISC microcontrollers for embedded applications featuring a high level of integration and low power consumption included in the FT90x series.

Symbol

Footprint

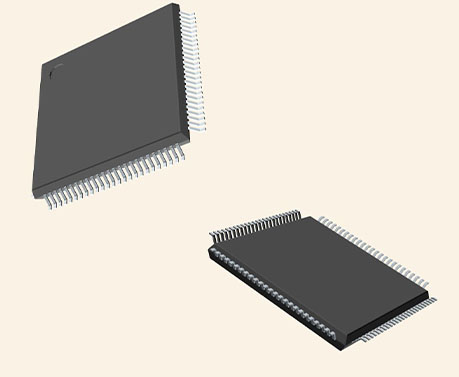

3D Model

· High performance, low power 32-bit FT32 core processor, running at a frequency of 100MHz.

· 256kB on-chip Flash memory.

· 256kB on-chip shadow program memory.

· True Zero Wait States (0WS) up to 3.1 DMIPS per MHz performance

· 64kB on-chip data memory.

· EFUSE for security configuration.

· Integrated Phase-Locked Loop (PLL) supports external 12MHz crystal and direct external clock source input.

· 32.768 kHz real-time clock support.

· One USB2.0 EHCI compatible host controller supports high-speed (480 Mbit/s), full-speed (12 Mbit/s), and low-speed (1.5 Mbit/s).

· One USB2.0 peripheral controller supports highspeed (480 Mbit/s) and full-speed (12 Mbit/s).

· USB2.0 host and peripheral controllers support the Isochronous, Interrupt, Control, and Bulk transfers.

· 10/100 Mbps Ethernet that is compliant with the IEEE 802.3/802.3u standards. (FT900 and FT901 only)

· Supports One-Wire debugger for downloading firmware to Flash memory or shadow program memory and supports a software debugger.

· Two CAN controllers support CAN protocol 2.0 parts A & B, the data rate is up to 1 Mbit/s. (FT900 and FT902 only)

· One SPI master supports single/dual/quad modes of data transfer. The clock rate is up to 25 MHz

· Two SPI slaves support a single data transfer with a 25MHz clock.

· Two I2C bus interfaces can be configured as master or slave, which support standard / fast/fast plus / high-speed mode data transfers. Max data transfer rate up to 3.4 Mbit/s. Clock stretching is supported.

· I 2S bus interface can be configured as master or slave. Two clock input options (24.576 MHz and 22.5792 MHz) to support I 2S master mode for different audio sample rates.

· UART interface can be configured as one full programmable UART0 or two simple interfaces, UART0 and UART1 with CTS / RTS control function.

· Four user timers with pre-scaling and a watchdog function.

· 8-bit parallel data interface supports camera data capturing.

· Support 7 independent PWM channels. Channel 0 and 1 can be configured as PCM 8-bit/16-bit stereo audio output.

· SD host controller is compatible with standard specification V3.0, it supports up to 25 MHz SD clock speed and software supports SD card format in SD/SDHC/SDXC.

· Support two 10-bit DAC 0/1 channels output, sample rate at ~1 MS/s.

· Support seven 10-bit ADC 1/7 channels input, the sample rate is up to ~960 kS/s.

· Single 3.3 volt power supply, built-in 1.2 V regulators.

· 3.3-volt I/O power supply.

· Support USB Battery Charging Specification Rev 1.2. A downstream port can be configured as SDP, CDP or DCP. An upstream port can perform BCD mode detection.

· Support VBUS power switching and over-current control.

· Power-On Reset (POR).

· -40°C to 85°C extended operating temperature range.

· Available in compact Pb-free 100-Pin packages (all RoHS compliant).

Bridgetek Pte Ltd. FT900L-T technical specifications, attributes, parameters and parts with similar specifications to Bridgetek Pte Ltd. FT900L-T.

·Home security system

· Home Automation

· Embedded audio application

· Motor drive and application control

· E-meter

· CCTV monitor

· Industrial automation

· Medical appliances

· Instrumentation

· DAQ System

Bridgetek is a leading global semiconductor company providing high performance microcontroller units (MCUs), display IC products and developing innovative silicon solutions that enhance seamless interaction with the latest connectivity technologies. Our key objective is to provide core bridging technology to support engineers with highly sophisticated, feature-rich, robust and simple-to-use product platforms.

Download datasheets and manufacturer documentation for Bridgetek Pte Ltd. FT900L-T.
